DataTuff Ind SPE 40m 1Gbps 100 Ohm 24AWG SFTP LSPUR

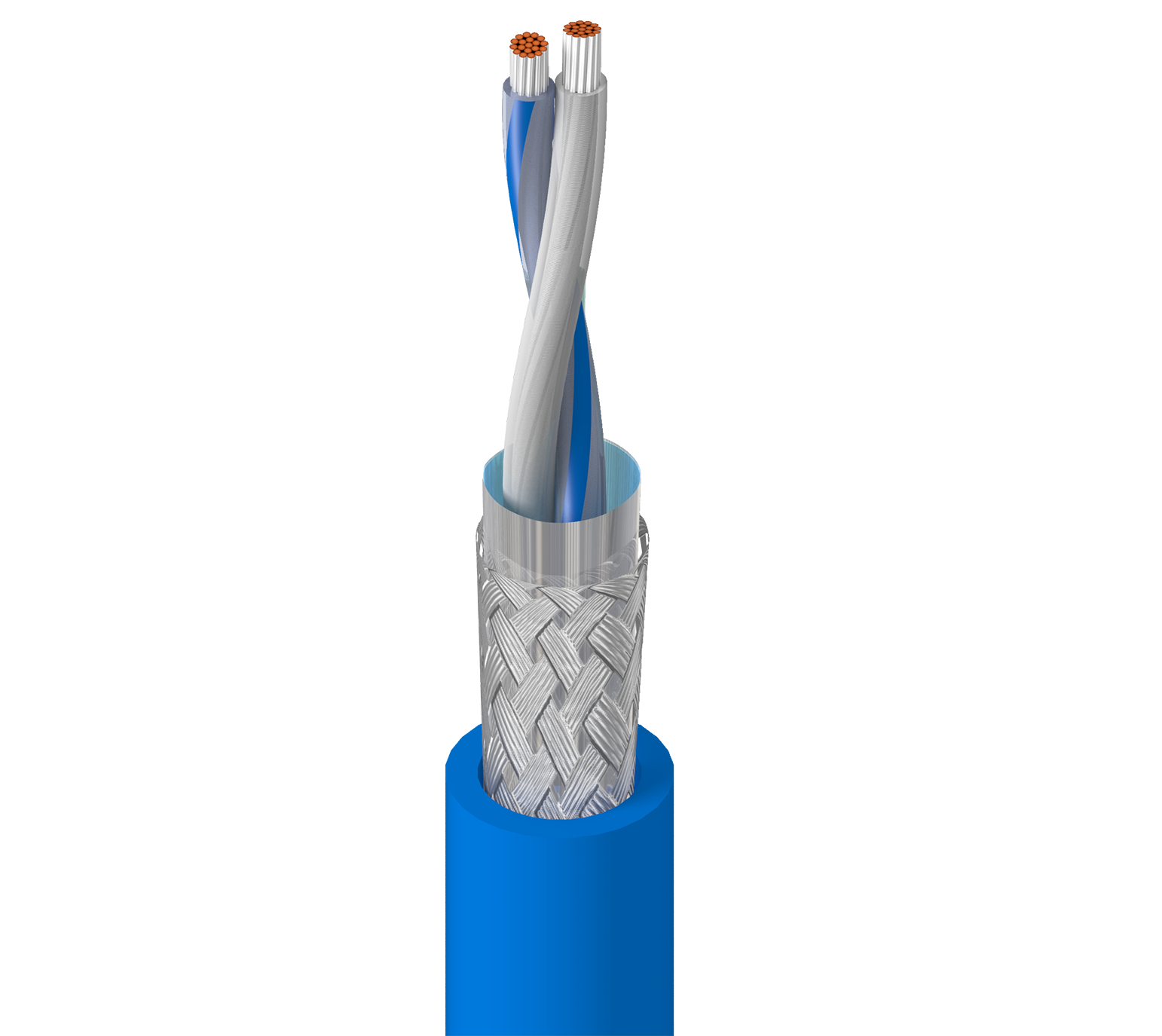

DataTuff Industrial Single Pair Ethernet 40m 1Gbps 100 Ohm 24AWG (Stranded) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(80%) Shield, LSPUR Outer Jacket
- Availability
- Americas
- Status
- Active
- Orderable items
- 5
Part numbers
SPE403 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Order |
|---|---|
| SPE403 0065000 | Order online |
| SPE403 0105000 | Order online |
| SPE403 0101000 | Order online |
| SPE403 0061000 | Order online |
| SPE403 1NH1000 | Order online |
Specifications
Product Overview
| Suitable Applications | Noisy environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
Construction Details
Conductor
| Size | 24 AWG |
|---|---|
| Stranding | Stranded |
| Material | TC - Tinned Copper |
| No. of Pairs | 1 |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 0.075 in (1.9 mm) |
| Color Code | Natural & Natural/Blue |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | PUR - Polyurethane |
|---|---|
| Nom. Diameter | 0.217 in (5.51 mm) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 94.2 Ohm/km (28.7 Ohm/1000ft) |
|---|---|
| Max. Capacitance Unbalance | 1,600 pF/km |
Delay
| Frequency | 100 MHz |
|---|---|
| Max. Delay | 538 ns/100m |
| Max. Delay Skew | 25 ns/100m |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] | Max. Surface Transfer Impedance [mOhm/m] | Min. Coupling Attenuation [dB] |
|---|---|---|---|---|---|---|
| 1 | 3.1 dB/100m | 20 | 40 | 40 | 50 | |
| 4 | 5.6 dB/100m | 23 | 40 | 28 | 76 | |
| 8 | 7.8 dB/100m | 24.5 | 36.5 | 21.9 | 93 | |
| 10 | 8.7 dB/100m | 25 | 35.0 | 20.0 | 100 | |
| 16 | 11 dB/100m | 25 | 31.9 | 15.9 | 135 | |
| 20 | 12.3 dB/100m | 25 | 30.5 | 14 | 155 | |
| 25 | 13.8 dB/100m | 24.2 | 29 | 12 | 178 | |
| 30 | 15.1 dB/100m | 23.5 | 27.8 | 10.5 | 200 | 84 |
| 60 | 21.4 dB/100m | 20.9 | 23.3 | 5 | 85 | |
| 100 | 27.8 dB/100m | 19 | 20 | 5 | 85 | |
| 200 | 39.7 dB/100m | 16.4 | 15.5 | 5 | 79 | |
| 250 | 44.6 dB/100m | 15.6 | 14 | 5 | 77 | |
| 300 | 49.0 dB/100m | 14.9 | 12.8 | 5 | 75 | |
| 350 | 53.2 dB/100m | 14.3 | 11.8 | 5 | 74 | |
| 400 | 57.0 dB/100m | 13.8 | 11 | 5 | 73 | |
| 450 | 60.7 dB/100m | 13.4 | 10.2 | 5 | 72 | |
| 500 | 64.1 dB/100m | 13 | 9.5 | 5 | 71 | |
| 550 | 67.5 dB/100m | 12.6 | 8.9 | 5 | 70 | |
| 600 | 70.7 dB/100m | 12.3 | 8.3 | 5 | 69 |
Voltage
| UL Voltage Rating | 300 V (UL AWM 20549) |
|---|---|
| Voltage Rating | 300 V (IEC 61156-12) |
Mechanical Characteristics
| Bulk Cable Weight | 11.5 lbs/1000ft |
|---|
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -40°C To +80°C |
Bend Radius
| Installation Min. | 2.2 in (56 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, UV Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | FT2, IEC 60332-1-2 |
| AWM Compliance | AWM 20549, AWM I A/B |
| IEEE Compliance | IEEE 802.3bp |
| ISO/IEC Compliance | IEC 61156-12 |
| European Halogen Free Standards | IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. |
|---|
History
| Update and Revision | Revision Number: 0.40 Revision Date: 02-20-2026 |
|---|
