DeviceBus®, 2 Pr #22+24 Str TC, PVC+FPE Ins, IS+OA TC Brd, PVC Jkt, AIA Armor, PVC Jkt, CM, CL2
DeviceBus® for ODVA DeviceNetTM, 2 Pair 22+24AWG (19x34+19x36) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil® & OA Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM, CL2
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | exposure to rodent, crush, or cut through force, harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.560 in (14.2 mm) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Power Pair(s) | 1 | 22 AWG | 19x34 | TC - Tinned Copper |
| Data Pair(s) | 1 | 24 AWG | 19x36 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|
| Power Pair(s) | PVC - Polyvinyl Chloride | 0.021 in (0.53 mm) | Red & Black |
| Data Pair(s) | PE - Polyethylene (Foam) | 0.026 in (0.66 mm) | Blue & White |
Inner Shield
| Element | Shield Type | Material | Coverage |
|---|---|---|---|
| Power Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% |
| Data Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 65% |
| Drainwire Type | 22 AWG (19x34) TC |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.280 in (7.11 mm) |
Armor
| Armor Type & Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.045 in (1.1 mm) |
| Nom. Diameter | 0.560 in (14.2 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Characteristic Impedence | Nom. Velocity of Prop. |
|---|---|---|
| Power Pair(s) | ||
| Data Pair(s) | 120 Ohm | 75% |
High Frequency
| Element | Data Pair(s) |
|---|
Voltage
| UL Voltage Rating | 300 V (CM) |
|---|
Mechanical Characteristics
Temperature
| UL Temperature | 75°C |
|---|
Standards and Compliance
| Environmental Suitability | Sunlight Resistance |
|---|---|
| NEC / UL Compliance | Article 725, Article 800 |
| CEC / C(UL) Compliance | CMG HLBCD. |
History
| Update and Revision | Revision Number: 0.57 Revision Date: 05-05-2023 |
|---|
Resources
Related industrial ethernet cable
123076F
Fieldbus, 1 Pr #18 Str TC, PP ins, OS, PVC Jkt, AIA Armor, PVC Jkt, ISA/SP-50 Type A, PLTC, CM
1 · 18 AWG · TC - Tinned Copper · PP - Polypropylene
123083A
DeviceBus®, 2 Pr #15+18 Str TC, PVC+FPE Ins, IS+OA TC Brd, CPE Jkt, AIA Armor, PVC Jkt, CMG PLTC
PVC - Polyvinyl Chloride · 300 V (CMG, PLTC-ER)
127897A
DeviceBus®, 2 Pr #15+18 Str TC, PVC-NYL + FEP Ins, IS+OA TC Brd, PVC Jkt, AIA, PVC Jkt, 600V
PVC - Polyvinyl Chloride · 75°C Dry

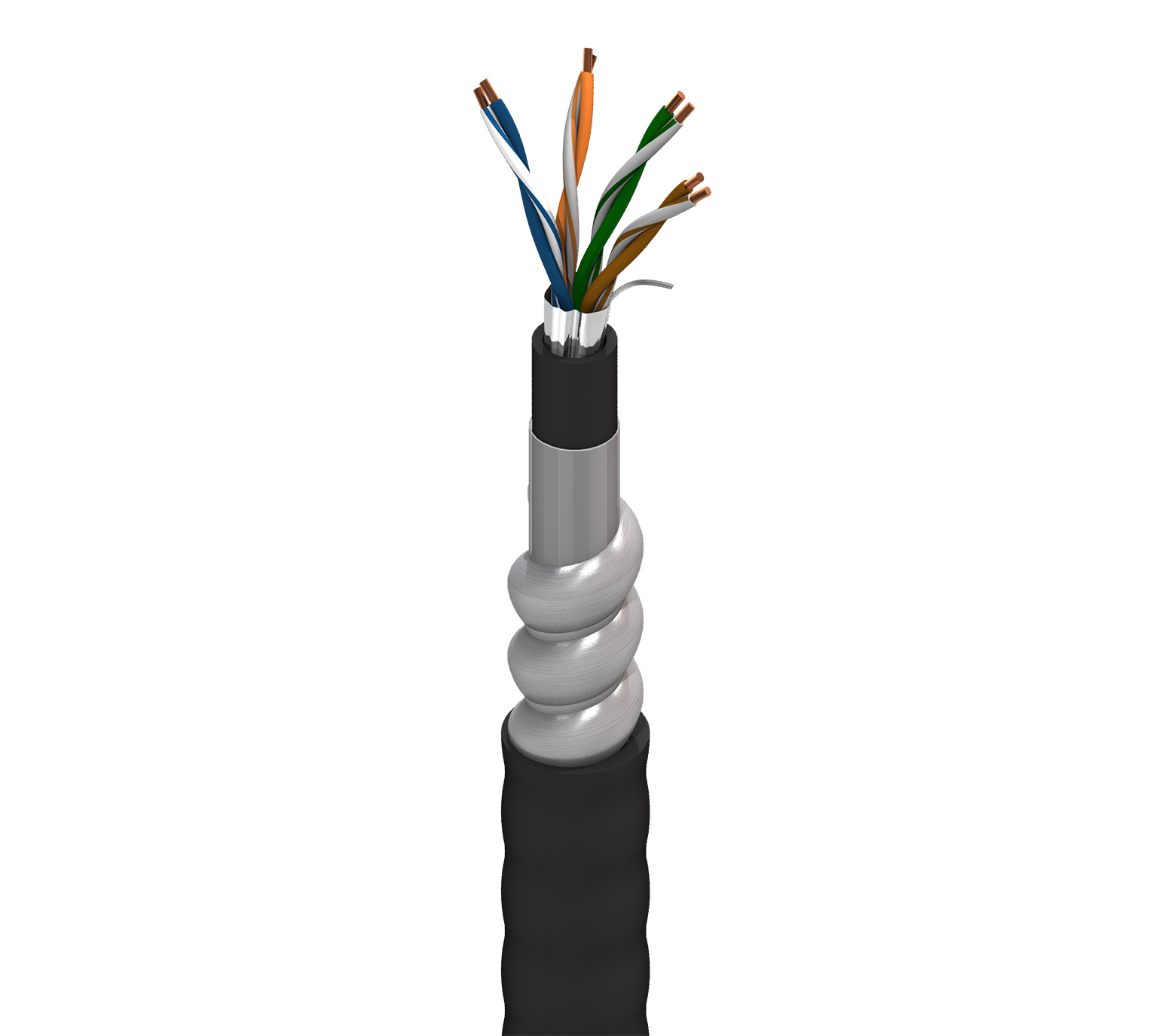

127903A
