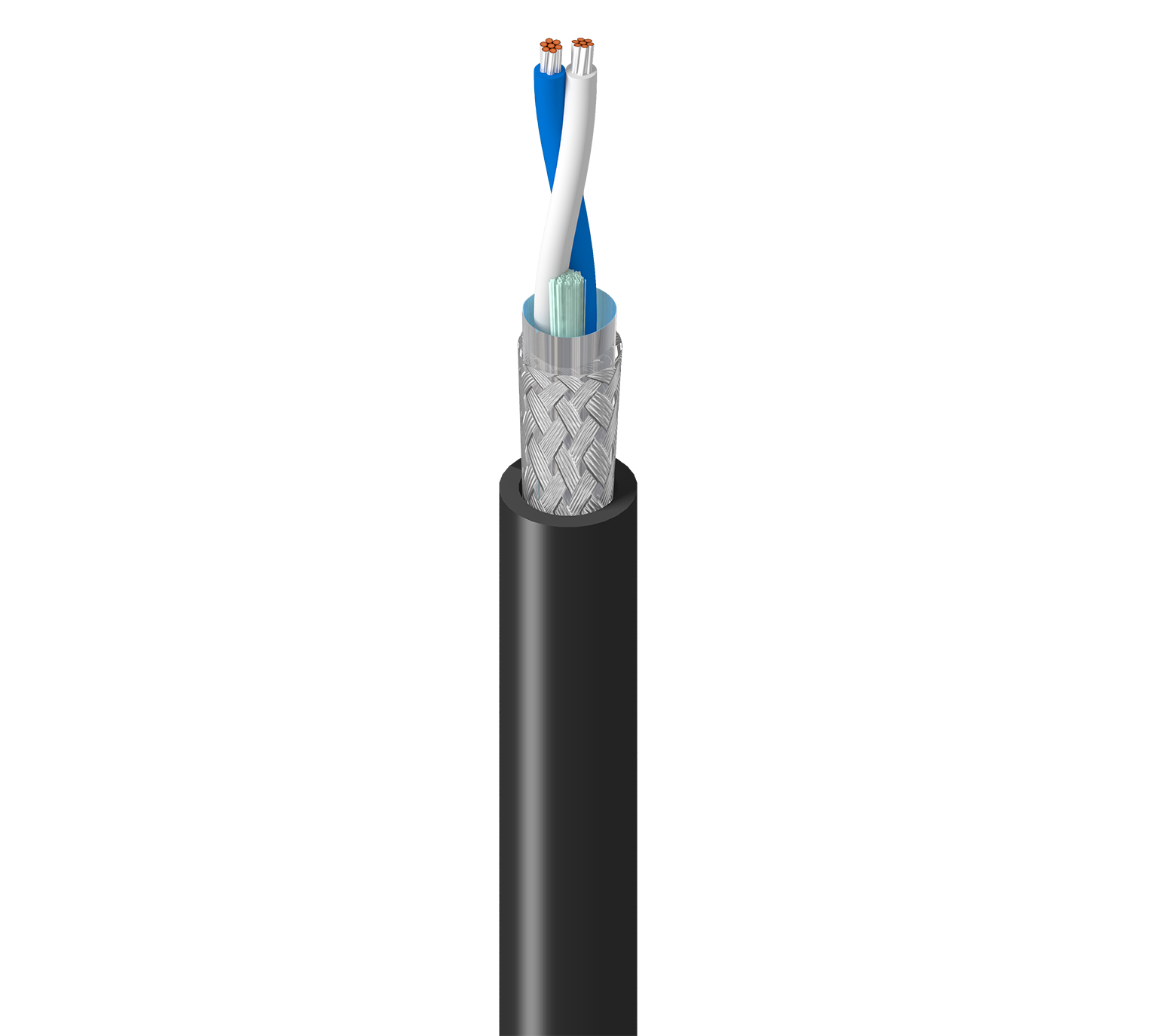

Datatuff Ind SPE 10Mbps 22AWG SF/UTP PVC
Datatuff Ind SPE 10Mbps 22AWG PE SF/UTP PVC
- Availability
- Americas
- Status
- Active
- Orderable items
- 2
Part numbers
SPE102 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Order |
|---|---|
| SPE102 0061000 | Order online |
| SPE102 0101000 | Order online |
Specifications
Product Overview
| Suitable Applications | data communications, cameras, PLCs, switches, outdoor, indoor etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | .245 in (6.22 mm) |
|---|
Conductor
| Size | 22 AWG |
|---|---|
| Stranding | Stranded |
| Material | TC - Tinned Copper |
| No. of Pairs | 1 |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 0.067 in (1.7 mm) |
| Color Code | White & Blue |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.245 in (6.22 mm) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 59 Ohm/km (18 Ohm/1000ft) |
|---|---|
| Max. Mutual Capacitance | 56 pF/m (17 pF/ft) |
| Max. Capacitance Unbalance | 330 pF/100m |
Delay
| Frequency | 100 MHz |
|---|---|
| Max. Delay | 450 ns/100m |
| Nom. Velocity of Prop. | 76% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. PSANEXT [dB] | Min. Coupling Attenuation [dB] | Nom. Characteristic Impedance [Ohm] |
|---|---|---|---|---|---|
| 0.1 | 1.4 dB/100m | 11.5 | 67 | 50 | 100 |
| 0.5 | 1.6 dB/100m | 15 | 64.7 | 50 | 100 |
| 0.772 | 1.9 dB/100m | 15 | 61.5 | 50 | 100 |
| 1 | 2.1 dB/100m | 15 | 61.4 | 50 | 100 |
| 2 | 2.8 dB/100m | 15 | 54.5 | 50 | 100 |
| 4 | 3.8 dB/100m | 15 | 49.4 | 50 | 100 |
| 8 | 5.3 dB/100m | 15 | 44.3 | 50 | 100 |
| 10 | 4.1 dB/100m | 15 | 42.6 | 50 | 100 |
| 16 | 7.5 dB/100m | 15 | 39.1 | 50 | 100 |
| 20 | 8.4 dB/100m | 15 | 37.5 | 50 | 100 |
Voltage
| UL Voltage Rating | 300 V (UL 13 PLTC) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 10 lbs (4.5 kg) |
|---|---|
| Bulk Cable Weight | 38 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -30°C To +75°C |
Bend Radius
| Installation Min. | 2 in (51 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | UL 1685 UL Loading |
| NEC / UL Compliance | CM, PLTC |
| IEEE Compliance | IEEE 802.3cg |
| TIA/EIA Compliance | ANSI/TIA-568.5 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2022-04-27 |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. |
|---|
History
| Update and Revision | Revision Number: 0.45 Revision Date: 02-20-2026 |
|---|
