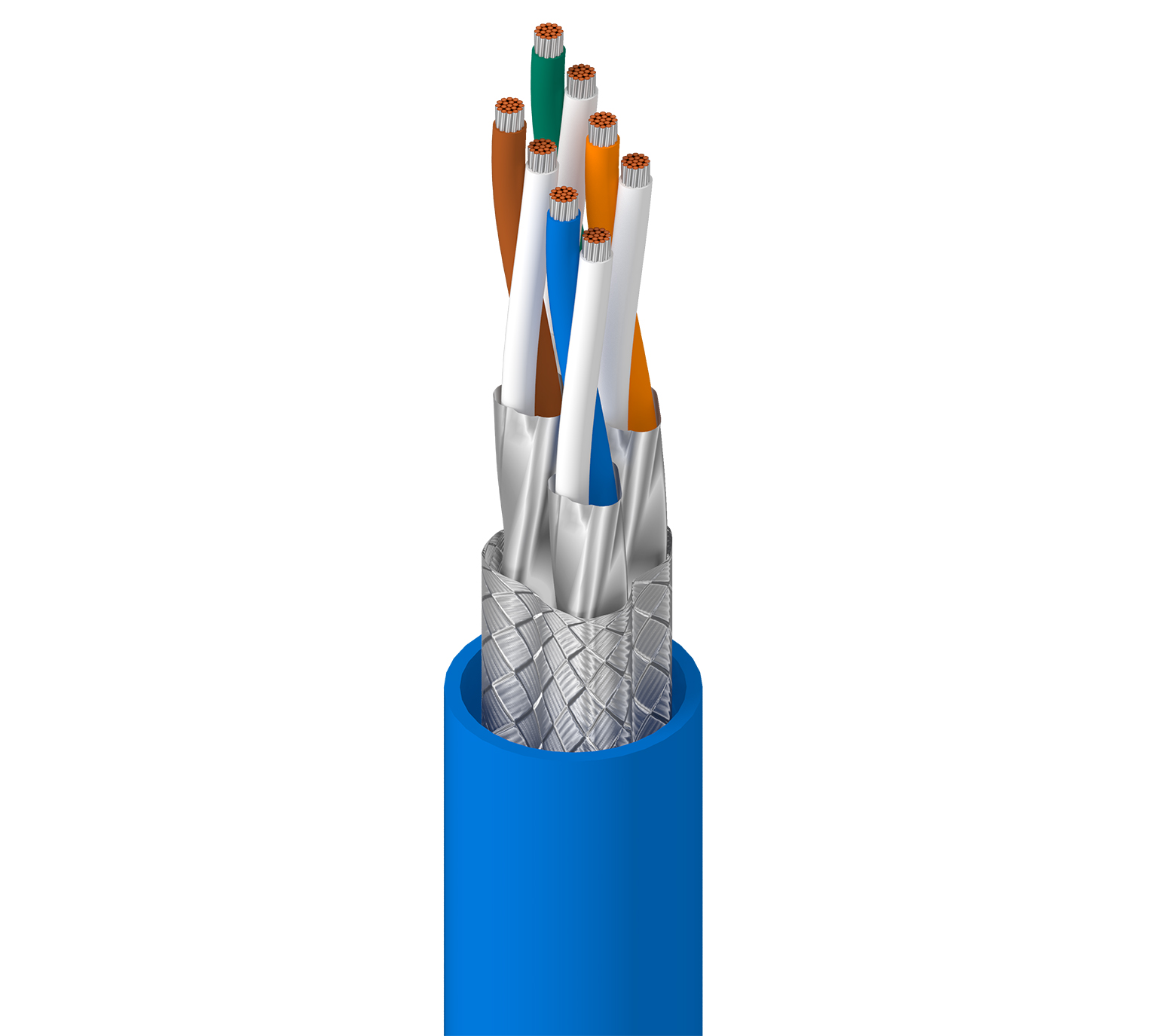

Railtuff ® 7, 4PR #24 Str TC, XLPE ins, S/FTP, LSZH Jkt, EN 45545 HL 1-3, ECE R118.03
Railtuff ® 7, 4 Pair AWG 24 Tinned Copper - Stranded, XLP/XLPO, XLPE insulation, S/FTP - Overall Braid + Foil shielding,Crosslinked e-beam LSZH / FRNC jacket , EN 45545-2 HL 1-3, ECE R118.03
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
BE43802 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE43802 010500M | Black | Reel | 500 m | 6938935091807 | Order online |
| BE43802.00500 | Blue | Reel | 500 m | 8719605026576 | Order online |
| BE43802 006500M | Blue | Reel | 500 m | 6938935091791 | Order online |
Specifications
Product Overview
| Suitable Applications | For use in railway applications such as rolling stock, buses or other vehicles, cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305 and EN 45545-2, ECE R118.03 |
|---|
Construction Details
| Insulation Table Notes | Insulation OD tolerance +/- 0.05mm |
|---|---|
| Inner Shield Table Notes | Aluminium facing outside |
| Outer Jacket1 Table Notes | e-Beamed to Cross-link, cable meets smoke test of LU 1-085. Jacket OD +/- 0.3mm |
| Overall Cable Diameter (Nominal) | 8.1 mm (0.32 in) |
Conductor
| Size | 24 AWG |
|---|---|
| Stranding | 19x36 |
| Material | TC - Tinned Copper |
| No. of Pairs | 4 |
Insulation
| Material | PO - Polyolefin (Foam) |
|---|---|
| Nom. Insulation Diameter | 1.45 mm (0.0571 in) |
| Color Code | White & Blue, White & Orange, White & Green, White & Brown |
| Notes | eBeam Cross-Linked |
Cable Core
| Description | 4 pairs twisted together |
|---|
Inner Shield
| Element | Individual Shielded Pair |
|---|---|
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 80% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
|---|---|
| Nom. Diameter | 8.1 mm (0.32 in) |
Electrical Characteristics
| High Frequency Table Notes | Limits below 4MHz are for information only. Values at 1000 MHz are for information only |
|---|---|
| Transfer Impedance Class | Grade 1 |
| Transfer Impedance Table Notes | IEC 61156-6 |
| Screening Class | Type I |
| Screening Table Notes | Coupling attenuation |
Electricals
| Max. Conductor DCR | 95 Ohm/km (29 Ohm/1000ft) |
|---|---|
| Max. Mutual Capacitance | 56 pF/m (17 pF/ft) |
| Max. Capacitance Unbalance | 160 pF/100m |
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Max. Delay Skew | 25 ns/100m |
|---|---|
| Nom. Velocity of Prop. | 78% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) |
|---|---|
| 1 | 2.9 dB/100m |
| 4 | 5.6 dB/100m |
| 10 | 8.8 dB/100m |
| 16 | 11.1 dB/100m |
| 31.2 | 15.6 dB/100m |
| 62.5 | 22.3 dB/100m |
| 100 | 28.5 dB/100m |
| 300 | 51.3 dB/100m |
| 500 | 67.9 dB/100m |
| 600 | 75.1 dB/100m |
| 1000 | 100.4 dB/100m |
Transfer Impedance
| Frequency | Max. Transfer Impedance |
|---|---|
| 1 MHz | Max. 5 mOhm/m |
| 10 MHz | Max. 5 mOhm/m |
| 30 MHz | Max. 30 mOhm/m |
| 100 MHz | 100 mOhm/m |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| Operating | -40°C to +90°C |
|---|---|
| Installation | -25°C To +50°C |
| Storage | -40°C to +90°C |
Bend Radius
| Stationary Min. | 32 mm (1.3 in) |
|---|---|
| Installation Min. | 64 mm |
Standards and Compliance
| Environmental Suitability | Indoor, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-2-25, UN ECE R118.03 |
| IEEE Compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| Data Category | Category 7 |
| ISO/IEC Compliance | ISO/IEC 11801-1 |
| CENELEC Compliance | EN 45545-2, Segregation class according EN50174-2 = d |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 80% |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.251 Revision Date: 02-20-2026 |
|---|
