Product Number: NH50105SFA

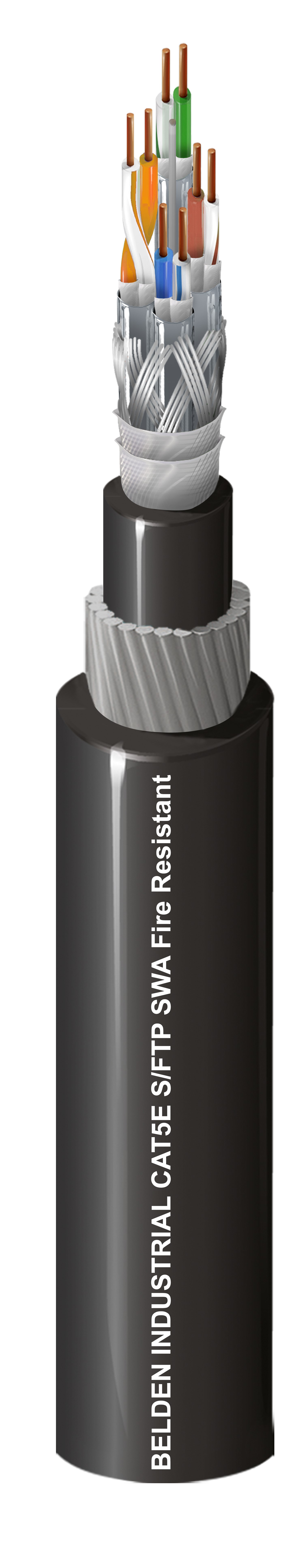

DataTuffTM Industrial Ethernet CAT5e 4x2x23AWG/1 S/FTP SWA Fire Resistant, Water- block

23 AWG solid bare twisted copper conductors, Mica Glass Tape Fire Protection barrier on each conductor, Polyethylene insulation, S/FTP, SWA Fire Reistant, Tinned Copper Braid Shield with Central Drain Wire, Mica Glass Tape and Water Blocking tape, LSZH Inner Jacket, Armoring, LSZH Jacket, Water-block

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

NH50105SFA is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
NH50105SFA-A305	Black	Reel	305 m	8719605213280	Order online

Specifications

Product Overview

Suitable Applications	Industrial Ethernet Cat 5e connection with Fire Resistant capability

Construction Details

Conductor

Element	Conductor(s)
Size	23 AWG
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Material	PE - Polyethylene
Nom. Insulation Diameter	1.17 mm (0.0461 in)
Color Code	Blue & White with Blue Strip, Orange & White with Orange Strip, Green & White with Green Strip, Brown & White with Brown Strip
Notes	Fire Protection Barrier: Mica glass Tape(MGT), Twist Direction = S, 25% AL-mylar tape(Overlapping)

Inner Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	60%
Drainwire Type	26 AWG (Solid) TC
Notes	Fire Protection Barrier: Mica Glass Tape(MGT), Water blocking structure: Water block tape

Inner Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	12.89 mm (0.5075 in)

Armor

Armor Type & Material	SWA - Steel Wire Armor

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	16.3 mm (0.642 in)

Electrical Characteristics

Electricals

Max. Conductor DCR	73.2 Ohm/km (22.3 Ohm/1000ft)
Max. Capacitance Unbalance	330 pF/100m
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay Skew	45 ns/100m

High Frequency

Frequency	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]
4 MHz	4.1 dB/70m	56.3	63.3	51.8	48.8	23.0
10 MHz	6.5 dB/70m	50.3	57.3	43.8	40.8	25.0
20 MHz	9.3 dB/70m	45.8	52.8	37.8	34.8	25.0
25 MHz	10.4 dB/70m	44.3	51.3	35.8	32.8	24.3
31.25 MHz	11.7 dB/70m	42.9	49.9	33.9	30.9	23.6
62.5 MHz	17.0 dB/70m	38.4	45.4	27.9	24.9	21.5
100 MHz	22.0 dB/70m	35.3	42.3	23.8	20.8	20.1

Voltage

UL Voltage Rating	60 V

Mechanical Characteristics

Temperature

Operating	-40°C To +80°C

Standards and Compliance

Environmental Suitability	UV Resistance, Oil Resistance
Flammability / Reaction to Fire	IEC 60332-1-2, IEC 60332-3-22, IEC 60331-23, EN 50200 PH120
Data Category	Category 5e
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	IEC 61156-5
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = 0.5 %, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
Other Standard Compliance(s)	BS6387 CWZ
