Product Number: 74009PU

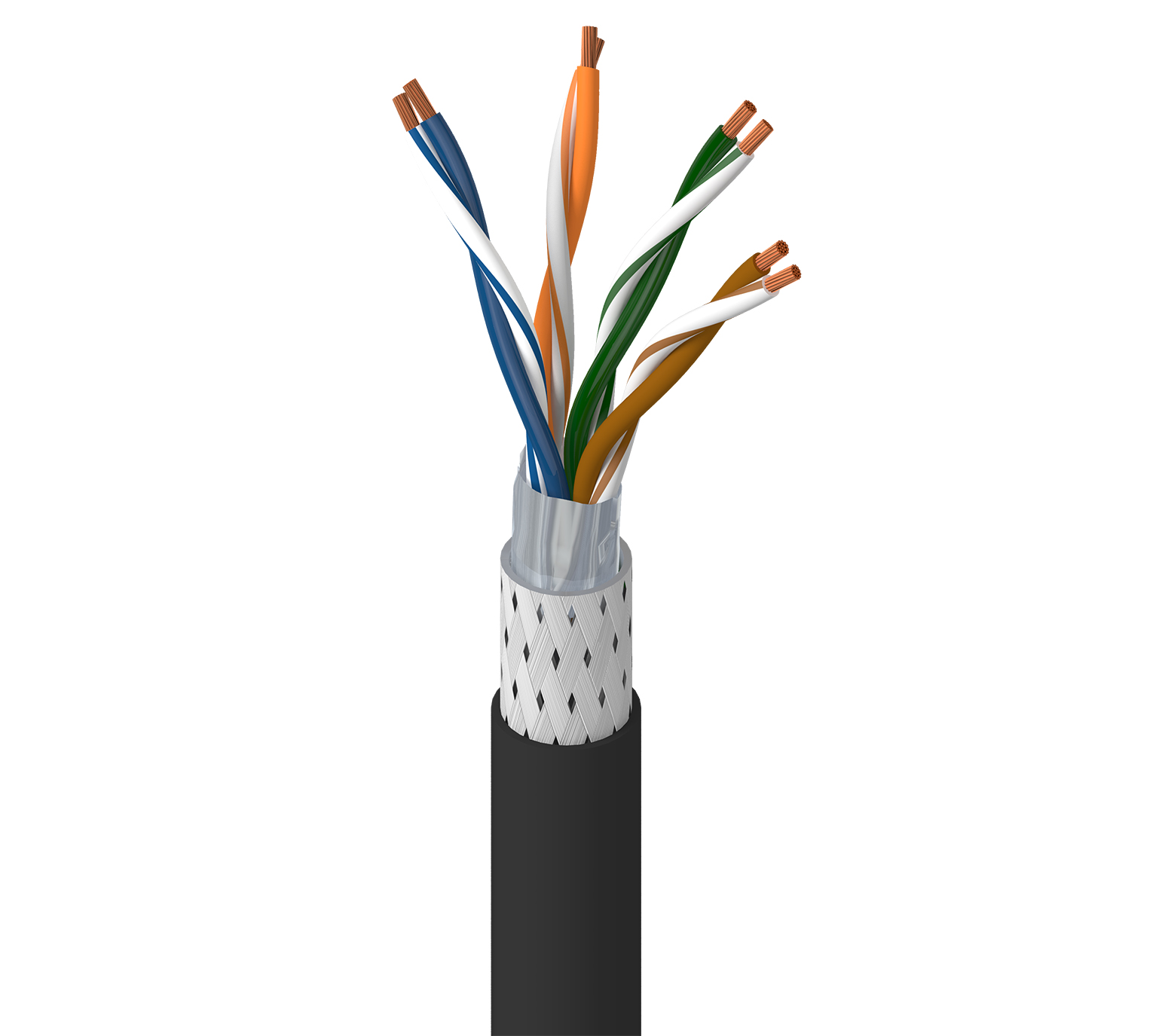

DataTuff® 5E, 4PR #26 Str BC, PO ins, SF/UTP, PUR HF jkt, AWM 20549

DataTuff® 5E, 4 Pair AWG 26 Bare Copper - Stranded, Polyethylene insulation, SF/UTP - Overall Braid + Foil shielding, PUR Halogen Free jacket , AWM 20549

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

74009PU is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
74009PU.01500	Black	Reel	500 m	8719605013385	Order online

Specifications

Product Overview

Suitable Applications	Cat5e, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details

Outer Shield Table Notes	Aluminum outside
Outer Jacket1 Table Notes	Sheath Resists Weld-Splatter
Overall Cable Diameter (Nominal)	6.4 mm (0.25 in)

Conductor

Size	26 AWG
Stranding	19x0.10 mm
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Material	PE - Polyethylene
Nom. Insulation Diameter	1 mm (0.039 in)
Color Code	White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown

Cable Core

Description	5 fillers and 4 pairs twisted to cable core

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	80%

Outer Jacket

Separator	non-Woven Tape
Material	PUR - Polyurethane (Halogen Free)
Nom. Diameter	6.4 mm (0.25 in)

Electrical Characteristics

High Frequency Table Notes	Reference standard: ISO/IEC 11801 ed 2.0, Cat 5e

Electricals

Max. Conductor DCR	140 Ohm/km (43 Ohm/1000ft)
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay Skew	40 ns/100m
Nom. Velocity of Prop.	60%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)
1	3.2 dB/100m
4	6.2 dB/100m
10	9.5 dB/100m
16	12.1 dB/100m
20	13.6 dB/100m
31.25	17.9 dB/100m
62.5	24.8 dB/100m
100	32 dB/100m

Voltage

UL Voltage Rating	300 V RMS
Voltage Rating	450 V DC and 300 V AC

Mechanical Characteristics

Temperature

Operating	-40°C to +80°C
Installation	-5°C To +50°C
Storage	-40°C to +80°C

Trailing/Flexing Properties

Motion	Number of Cycles	Traverse Length	Torsion Angle
Trailing/Bending	1,000,000
Torsion/Twisting	2,000,000	1 m	360 °

Bend Radius

Stationary Min.	30 mm (1.2 in)
Installation Min.	60 mm

Standards and Compliance

Environmental Suitability	Indoor, Indoor, Sunlight Resistance - Black only, Oil Resistance
Flammability / Reaction to Fire	UL 1581 Horizontal flame test
AWM Compliance	AWM 20549
Data Category	Category 5e
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	ISO/IEC 11801-1
CENELEC Compliance	EN 50173-1
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = Zero
European Directive Compliance	EU CE Mark
