Product Number: 74002PU

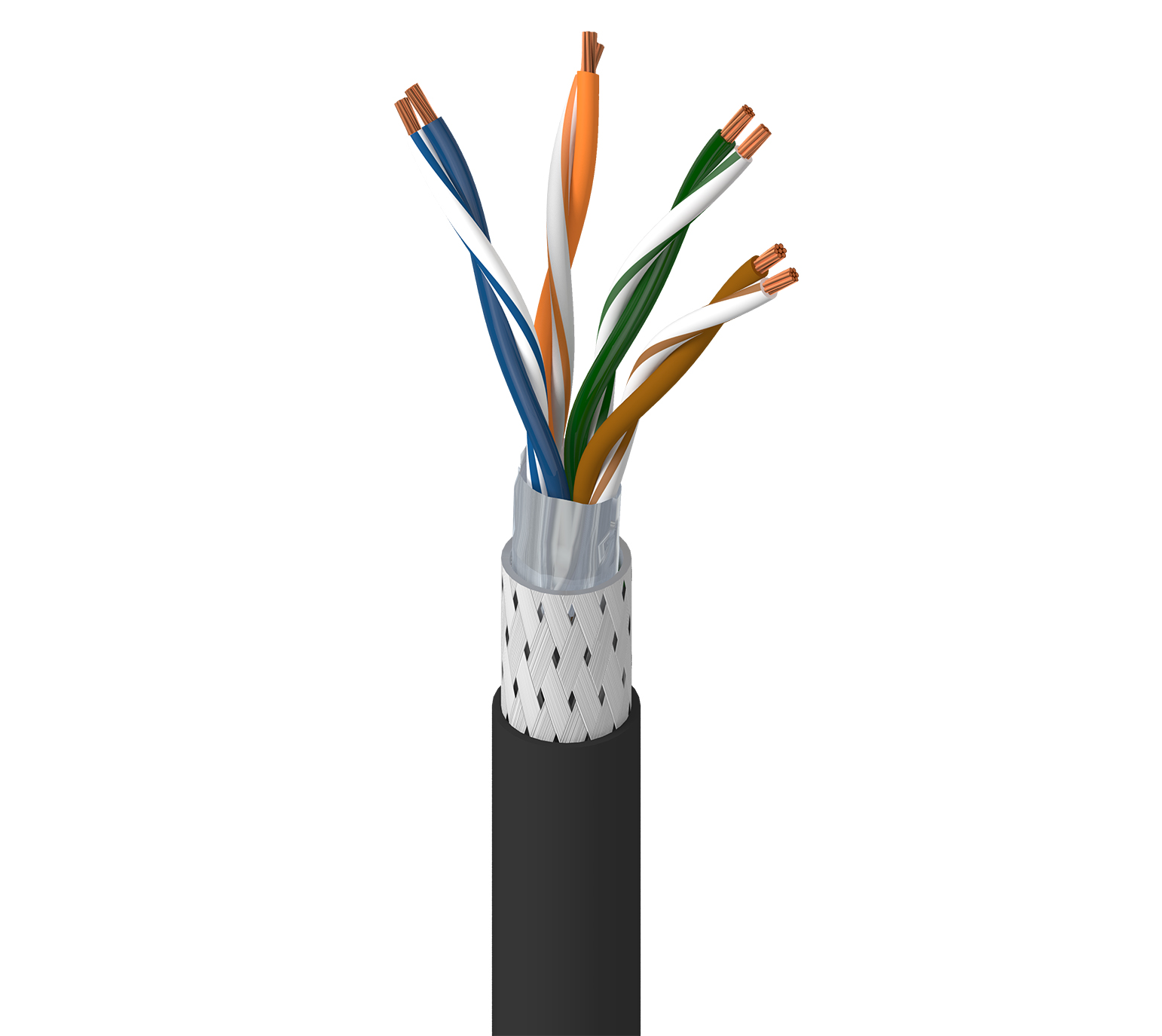

DataTuff® 5E, 4PR #26 Str BC, PO ins, SF/UTP, PUR HF jkt, AWM 20549

DataTuff® 5E, 4 Pair AWG 26 Bare Copper - Stranded, Polyethylene insulation, SF/UTP - Overall Braid + Foil shielding, PUR Halogen Free jacket , AWM 20549

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

74002PU is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
74002PU.01305	Black	Reel	305 m	8719605013095	Order online
74002PU.01500	Black	Reel	500 m	8719605013101	Order online
74002PU.011000	Black	Reel	1,000 m	8719605013088	Order online

Specifications

Product Overview

Suitable Applications	Cat5e, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details

Outer Shield Table Notes	Aluminum outside
Outer Jacket1 Table Notes	Flame Retardant Sheath
Overall Cable Diameter (Nominal)	6.5 mm (0.26 in)

Conductor

Size	26 AWG
Stranding	7x0.16 mm
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Material	PE - Polyethylene
Nom. Insulation Diameter	0.98 mm (0.039 in)
Color Code	White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown

Cable Core

Description	4 pairs twisted to cable core covered with a polyester foil

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)
Braid	Tinned Copper (TC)	80%

Outer Jacket

Material	PUR - Polyurethane (Halogen Free)
Nom. Diameter	6.5 mm (0.26 in)

Electrical Characteristics

Electricals

Max. Conductor DCR	145 Ohm/km (44.2 Ohm/1000ft)
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay Skew	40 ns/100m
Nom. Velocity of Prop.	60%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]
0.772		67	64			19.4
1	3.2 dB/100m	65.3	62.3	63.8	60.8	20
4	6 dB/100m	56.3	53.3	51.8	48.8	23
10	9.5 dB/100m	50.3	47.3	43.8	40.8	25
16	12.1 dB/100m	47.2	44.2	39.7	36.7	25
20	13.6 dB/100m	45.8	42.8	37.8	34.8	25
25	15.3 dB/100m	44.3	41.3	35.8	32.8	24.3
31.25	17.1 dB/100m	42.9	39.9	33.9	40.9	23.6
62.5	24.8 dB/100m	38.3	35.4	27.9	24.9	21.5
100	32 dB/100m	35.3	32.3	23.8	20.8	20.1

Voltage

Voltage Rating	450 V DC and 300 V AC

Mechanical Characteristics

Max. Pull Tension	80 N (18 lbf)

Temperature

Operating	-40°C to +80°C
Installation	-15°C To +60°C
Storage	-40°C to +80°C

Bend Radius

Stationary Min.	35 mm (1.4 in)
Installation Min.	70 mm

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Sunlight Resistance, Oil Resistance
AWM Compliance	AWM 20549
Data Category	Category 5e
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	ISO/IEC 11801-1
CENELEC Compliance	EN 50173-1
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
European Directive Compliance	EU CE Mark
