Product Number: 72001ELW

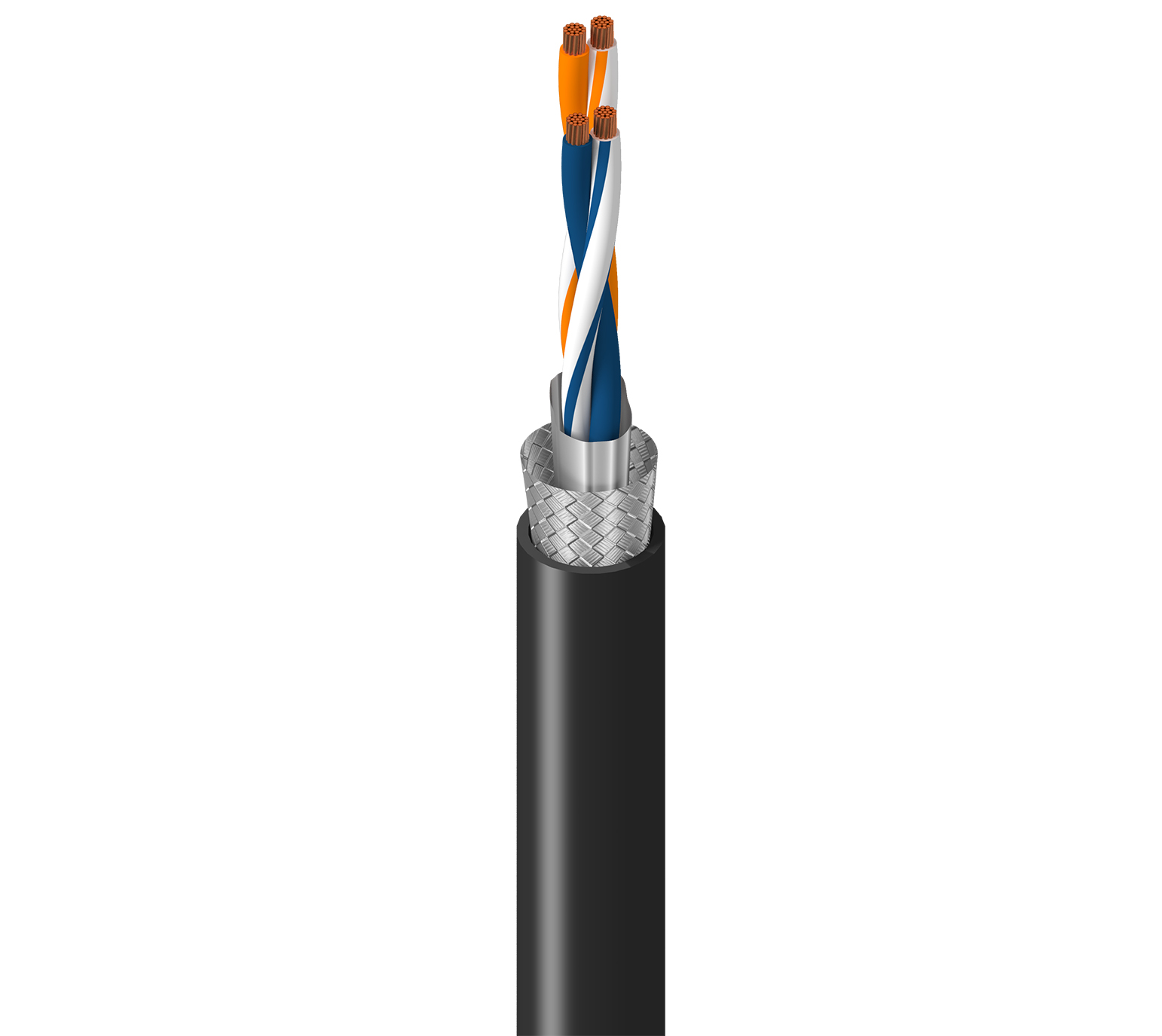

DataTuff® 5E, 2PR #24 Sol BC, PO ins, SF/UTP, LSZH Jkt, Cca

Name: Belden 72001ELW
Brand: Belden
SKU: 72001ELW

DataTuff® 5E, 2 Pair AWG 24 Bare Copper - Solid, Polyethylene insulation, SF/UTP - Overall Braid + Foil shielding, LSZH / FRNC jacket, CPR Cca

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Cat7, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Overall Cable Diameter (Nominal)	6.4 mm (0.25 in)

Material	PE - Polyethylene
Nom. Insulation Diameter	1.1 mm (0.043 in)
Color Code	White/Blue & Blue, White/Orange & Orange

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)
Braid	Tinned Copper (TC)	80%

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	6.4 mm (0.25 in)

Max. Conductor DCR	93.8 Ohm/km (28.6 Ohm/1000ft)
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Nom. Velocity of Prop.	60%

Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. ACRF (ELFEXT) [dB]	Min. RL (Return Loss) [dB]
	67		19.4
3.2	65.3	63.8	20
6	56.3	51.8	23
9.5	50.3	43.8	25
12.1	47.2	39.7	25
13.6	45.8	37.8	25
15.3	44.3	35.8	24.3
17.1	42.9	33.9	23.6
24.8	38.3	27.9	21.5
32	35.3	23.8	20.1

Voltage Rating	72 V DC

Max. Pull Tension	80 N (18 lbf)

Installation	-5°C To +50°C
Storage	-40°C To +80°C

Stationary Min.	32 mm (1.3 in)
Installation Min.	64 mm (2.5 in)

Environmental Suitability	Indoor/Outdoor - Euroclass Cca, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance - UL 1581 sec 1200 Black Only, Oil Resistance
Flammability / Reaction to Fire	IEC 60332-1-2
CPR Compliance	CPR Euroclass: Cca-s1,d1,a1
Data Category	Category 5e
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	ISO/IEC 11801-1
CENELEC Compliance	EN 50173-1
European Directive Compliance	EU CE Mark
