Product Number: 70094C

IE 5E, 4PR #26 Str BC, PO ins, SF/UTP, PUR HF jkt, UL AWM 20549 Trialing

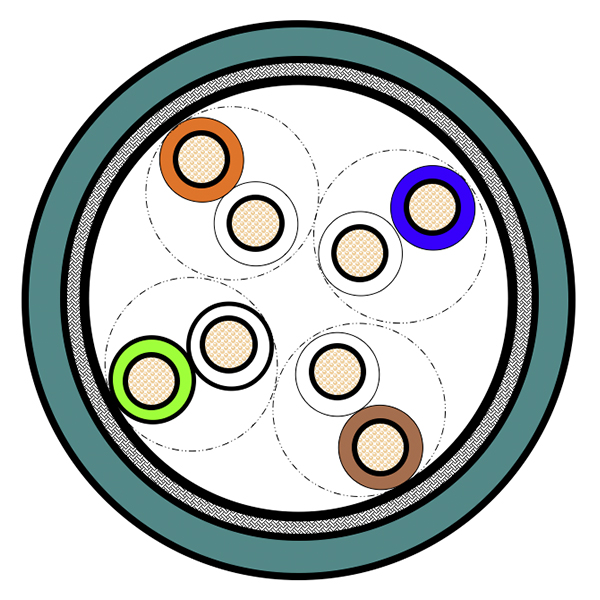

IE 5E, 4 pair AWG 26 Bare Copper - Stranded, Polyethylene insulation,SF/UTP - Overall Braid + Foil shielding, PUR Halogen Free jacket , UL AWM 20549, Trailing

Availability: Global
Status: Discontinued

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Product Life Cycle

Life Cycle	Discontinued - the product is no longer manufactured

Construction Details

Outer Shield Table Notes	Aluminum outside
Outer Jacket1 Table Notes	Flame Retardant Sheath
Overall Cable Diameter (Nominal)	6.4 mm (0.25 in)

Conductor

Size	26 AWG
Stranding	19x0.10 mm
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Material	PE - Polyethylene
Nom. Insulation Diameter	1 mm (0.039 in)
Color Code	White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown

Cable Core

Description	4 pairs twisted to cable core covered with a polyester foil

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)
Braid	Tinned Copper (TC)	85%

Outer Jacket

Separator	non-Woven Tape
Material	PUR - Polyurethane (Halogen Free)
Nom. Diameter	6.4 mm (0.25 in)

Electrical Characteristics

Transfer Impedance Class	Grade 1
Screening Class	Type I
Screening Table Notes	Coupling Attenuation

Electricals

Max. Conductor DCR	140 Ohm/km (43 Ohm/1000ft)
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay Skew	40 ns/100m
Nom. Velocity of Prop.	60%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	3.2 dB/100m	65.3	62.3	62.1	59.1	64	61	23	40	35
4	6 dB/100m	56.3	53.3	50.3	47.3	52	49	23	34	23
10	9.5 dB/100m	50.3	47.3	40.8	37.8	44	41	25	30	15
16	12.1 dB/100m	47.2	44.2	35.2	32.2	39.9	36.9	25	28	10.9
20	13.5 dB/100m	45.8	42.8	32.2	29.2	38	35	25	27	9
31.25	17.1 dB/100m	42.9	39.9	25.8	22.8	34.1	31.5	23.3	25.1	5.5
62.5	24.8 dB/100m	38.4	35.4	13.6	10.6	28.1	25.1	20.7	22
100	32 dB/100m	35.3	32.3	3.3	0.3	24	21	19	20

Transfer Impedance

Frequency	Max. Transfer Impedance
1 Mhz	Max. 10 mOhm/m
10 Mhz	Max. 10 mOhm/m
30 Mhz	Max. 30 mOhm/m
100 Mhz	100 mOhm/m

Voltage

UL Voltage Rating	UL AWM 2464: 300 A.C.
Voltage Rating	72 V DC

Mechanical Characteristics

Max. Pull Tension	80 N (18 lbf)

Temperature

Operating	-40°C to +80°C
Installation	0°C To +50°C

Trailing/Flexing Properties

Motion	Trailing/Bending
Number of Cycles	5,000,000
Radius	60 mm
Speed	3 m/s
Acceleration	3 m/s2

Bend Radius

Stationary Min.	30 mm (1.2 in)
Installation Min.	60 mm

Standards and Compliance

Environmental Suitability	Indoor, Sunlight Resistance - UL 1581 sec 1200
Data Category	Category 5e
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	ISO/IEC 11801-1
CENELEC Compliance	EN 50173-1, Segregation class according EN50174-2 = d
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = Zero
European Directive Compliance	EU CE Mark
