Product Number: 70094A

IE 5E, 4PR #24 Sol BC, PO ins, SF/UTP, PUR HF jkt, UL AWM 20549

Name: Belden 70094A
Brand: Belden
SKU: 70094A

IE 5E, 4 pair AWG 24 Bare Copper - Solid, Polyethylene insulation,SF/UTP - Overall Braid + Foil shielding, PUR Halogen Free jacket , UL AWM 20549

Ships from and sold by A5 IT.

Specifications

Suitable Applications	harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Life Cycle	Discontinued - the product is no longer manufactured

Outer Shield Table Notes	Aluminum outside
Overall Cable Diameter (Nominal)	6.4 mm (0.25 in)

Material	PE - Polyethylene
Nom. Insulation Diameter	1.1 mm (0.043 in)
Color Code	White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown

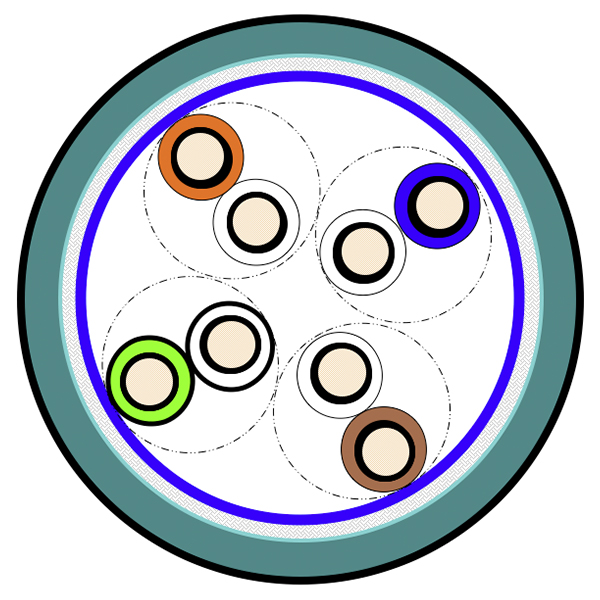

Description	4 pairs twisted to cable core covered with a polyester foil

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)
Braid	Tinned Copper (TC)	85%

Separator	non-Woven Tape
Material	PUR - Polyurethane (Halogen Free)
Nom. Diameter	6.4 mm (0.25 in)

Max. Conductor DCR	93.8 Ohm/km (28.6 Ohm/1000ft)
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Max. Delay Skew	40 ns/100m
Nom. Velocity of Prop.	60%

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1 dB/100m	65.3	62.3	63.2	60.2	64	61	23	40	35
4	4 dB/100m	56.3	53.3	52.32	49.3	52	49	23	34	23
10	6.3 dB/100m	50.3	47.3	44	41	44	41	25	30	15
16	8 dB/100m	47.2	44.2	39.2	36.2	39.9	36.9	25	28	10.9
20	9 dB/100m	45.8	42.8	36.8	33.8	38	35	25	27	9
31.25	11.4 dB/100m	42.9	39.9	31.5	28.5	34.1	31.5	23.6	25.1	5.5
62.5	16.5 dB/100m	38.4	35.4	21.9	18.9	28.1	25.1	21.5	22
100	21.3 dB/100m	35.3	32.3	14	11	24	21	20.1	20

UL Voltage Rating	UL AWM 2464: 300 A.C.
Voltage Rating	72 V DC

Max. Pull Tension	80 N (18 lbf)

Stationary Min.	30 mm (1.2 in)
Installation Min.	60 mm

Environmental Suitability	Indoor
AWM Compliance	AWM 2464
Data Category	Category 5e
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	ISO/IEC 11801-1
CENELEC Compliance	EN 50173-1, Segregation class according EN50174-2 = d
European Directive Compliance	EU CE Mark
