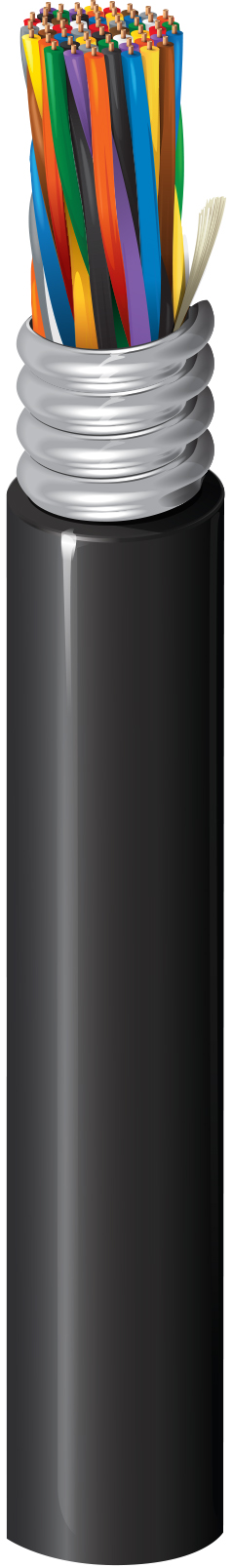

Product Number: 2139A

Category 5e Indoor/Outdoor Cable, 25 Pair, F/UTP, OSP/CM-LS, LSZH, CAT Armor

Category 5e Premise Backbone Cable (100MHz), Indoor/Outdoor OSP/CM-LS, 25 Pair, 24 AWG Solid Bare Copper Conductors, U/UTP, Gel-Filled, Corrugated Aluminum Tape Armor, UV Resistant Flame Retardant Haloarrest® LSZH Outer Jacket

Availability: Global
Status: Discontinued
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

2139A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
2139A 0101000	Black	612825377870	Order online

Specifications

Product Overview

Suitable Applications	OSP-Outdoor, Indoor/Outdoor, Premise Backbone Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments

Product Life Cycle

Life Cycle	Discontinued - the product is no longer manufactured
Discontinuation Announcement Date	2022-08-08

Construction Details

Overall Cable Diameter (Nominal)	0.730 in (18.5 mm)

Conductor

Size	24
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	25

Insulation

Material	PO - Polyolefin
Color Code	Western Electric

Inner Jacket

Material	PE - Polyethylene
Nom. Diameter	0.51 in (13 mm)
Ripcord	Yes

Armor

Armor Type & Material	CAT - Corrugated Aluminum Tape
Armor Thickness	.008 in (0.20 mm)

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	0.730 in (18.5 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Max. Conductor DCR	93.8 Ohm/km (28.6 Ohm/1000ft)
Max. Capacitance Unbalance	330 pF/100m

Delay

Frequency	100 MHz
Max. Delay	537.6 ns/100m
Max. Delay Skew	45 ns/100m
Nom. Velocity of Prop.	68%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. PSNEXT [dB]	Min. RL (Return Loss) [dB]	Max./Min. Fitted Impedance
1	2.0	62.3	20.0	100 ± 15%
4	4.1	53.3	23.0	100 ± 15%
8	5.8	48.8	24.5	100 ± 15%
10	6.5	47.3	25.0	100 ± 15%
16	8.2	44.3	25.0	100 ± 15%
20	9.3	42.8	25.0	100 ± 15%
25	10.4	41.3	24.3	100 ± 15%
31.25	11.7	39.9	23.6	100 ± 15%
62.5	17.0	35.4	21.5	100 ± 15%
100	22.0	32.3	20.1	100 ± 15%

Voltage

UL Voltage Rating	300 V (CM)

Mechanical Characteristics

Max. Pull Tension	150 lbs (68 kg)
Bulk Cable Weight	240 lbs/1000ft (360 kg/km)

Temperature

UL Temperature	75°C
Operating	-40°C To +75°C
Installation	-20°C To +75°C
Storage	-40°C To +75°C

Bend Radius

Stationary Min.	7.5 in (190 mm)
Installation Min.	14.75 in (374.7 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire
Flammability / Reaction to Fire	UL 1685 (UL Loading-Limited Smoke)
NEC / UL Compliance	CM
CEC / C(UL) Compliance	CM.
IEEE Compliance	IEEE 802.3bt Type 1, Type 2, Type 3
Data Category	Category 5e
TIA/EIA Compliance	ANSI/TIA-568.2-D Category 5e
ISO/IEC Compliance	11801 ed 2.2 (2011) Class D
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage Markings. Fully Water Blocked. Suitable for use in Buildings in Wet Locations. Suitable for Direct Burial applications though not UL rated.
