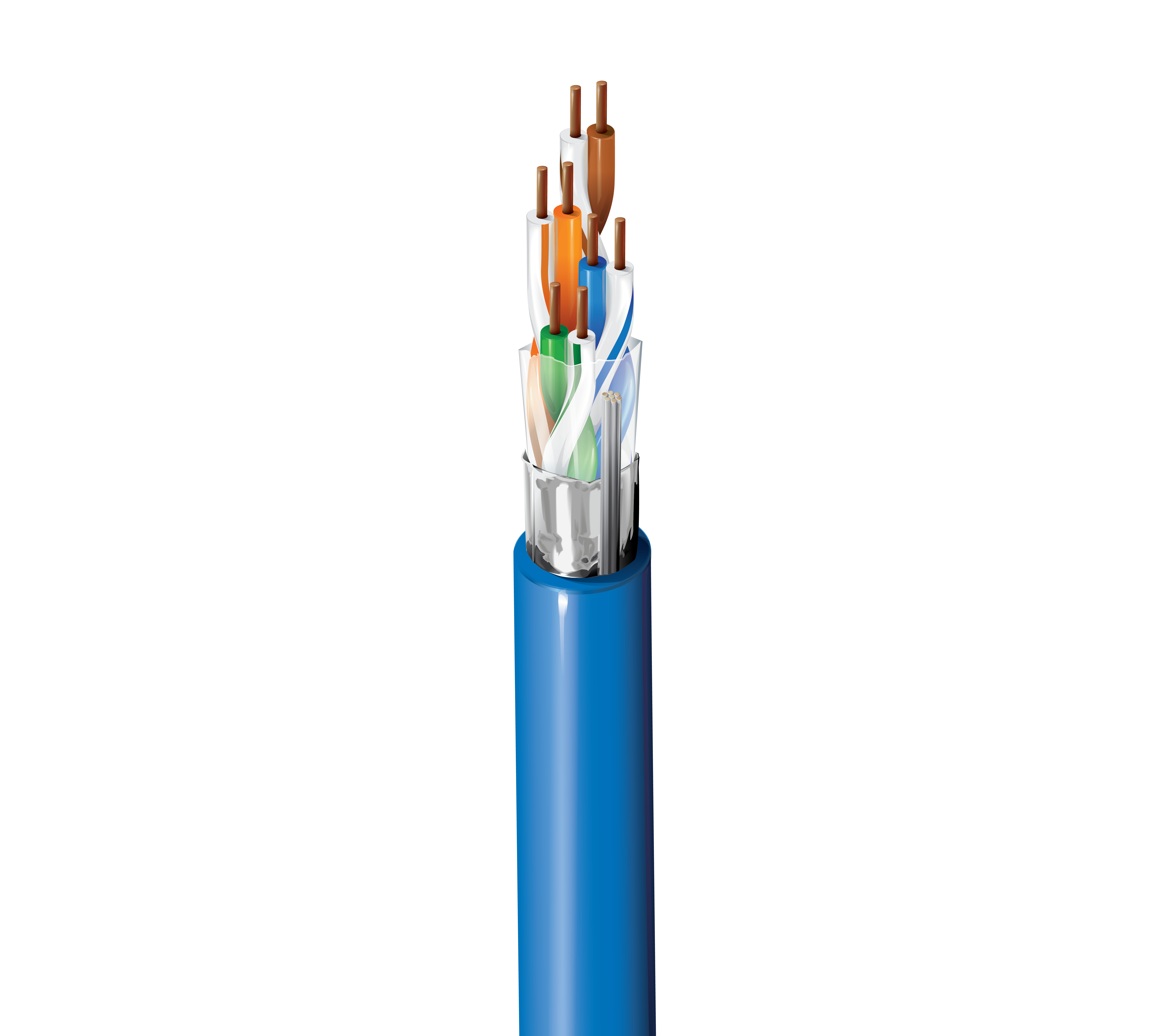

Product Number: 1633VNH

DNV GL, Shipboard, Category 5e Cable, 4 Pair, F/UTP, LSZH Indoor

DNV GL, Shipboard, Category 5e Premise Horizontal Cable (100MHz), 4-Pair, 24 AWG solid bare copper conductors, F/UTP, Polyethylene insulation, Beldfoil® shield, AWG 26 solid tinned copper drainwire, LSZH jacket

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

1633VNH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
1633VNH.06500	Blue	Reel	500 m	8719605180407	Order online
1633VNH.061000	Blue	Reel	1,000 m	8719605201478	Order online

Specifications

Product Overview

Suitable Applications	Horizontal and building backbone cable; Support current and future Category 5e applications, such as: 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Construction Details

Outer Shield Table Notes	Aluminum facing outside in contact with drain wire
Overall Cable Diameter (Nominal)	6.6 mm (0.26 in)

Conductor

Element	Individual Pair
Size	24 AWG
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Element	Individual Pair
Material	PE - Polyethylene
Nom. Insulation Diameter	1.05 mm (0.0413 in)
Color Code	White/Blue & Blue, White/Green & Green, White/Orange & Orange, White/Brown & Brown

Cable Core

Description	4 pairs twisted together covered with a polyester foil

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	26 AWG (Solid) TC

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	6.6 mm (0.26 in)

Electrical Characteristics

High Frequency Table Notes	Limits below 4 MHz are for information only. Reference standard: IEC 61156-5
Transfer Impedance Class	Grade 2
Screening Class	Type II
Screening Table Notes	Coupling Attenuation

Electricals

Max. Conductor DCR	95 Ohm/km (29 Ohm/1000ft)
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay Skew	40 ns/100m
Nom. Velocity of Prop.	69%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1	65.3	62.3	63.2	60.2	64	61	20	40	35
4	4	56.3	53.3	52.32	49.3	52	49	23	34	23
10	6.3	50.3	47.3	44	41	44	41	25	30	15
16	8	47.2	44.2	39.2	36.2	39.9	36.9	25	28	10.9
20	9	45.8	42.8	36.8	33.8	38	35	25	27	9
31.25	11.4	42.9	39.9	31.5	28.5	34.1	31.5	23.6	25.1	5.5
62.5	16.5	38.4	35.4	21.9	18.9	28.1	25.1	21.5	22
100	21.3	35.3	32.3	14	11	24	21	20.1	20

Transfer Impedance

Frequency	Max. Transfer Impedance
1 Mhz	Max. 50 mOhm/m
10 Mhz	Max. 100 mOhm/m
30 Mhz	Max. 200 mOhm/m
100 Mhz	Max. 1000 mOhm/m

Voltage

Voltage Rating	72 V DC

Mechanical Characteristics

Max. Pull Tension	72 N (16 lbf)
Bulk Cable Weight	39 kg/km (26 lbs/1000ft)

Temperature

Operating	-30°C to +60°C
Installation	0°C To +50°C

Bend Radius

Stationary Min.	24 mm (0.94 in)
Installation Min.	48 mm (1.9 in)

Standards and Compliance

Environmental Suitability	Indoor - Euroclass Dca
Flammability / Reaction to Fire	IEC 60332-1-2
CPR Compliance	CPR Euroclass: Dca-s2,d2,a1
IEEE Compliance	PoE: IEEE 802.3bt Type 1, Type 2, Type 3
Data Category	Category 5e
TIA/EIA Compliance	ANSI/TIA 568.2-D
Third Party Performance Verification	DNV GL certification
ISO/IEC Compliance	ISO/IEC 11801-1
CENELEC Compliance	EN 50173-1, Segregation class according EN50174-2 = c
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
European Directive Compliance	EU CE Mark
UK Regulation Compliance	UKCA Mark
