Product Number: YJ53419B1

Category 3-UTP 50Pair 24AWG , GB 31247 B1 Rating

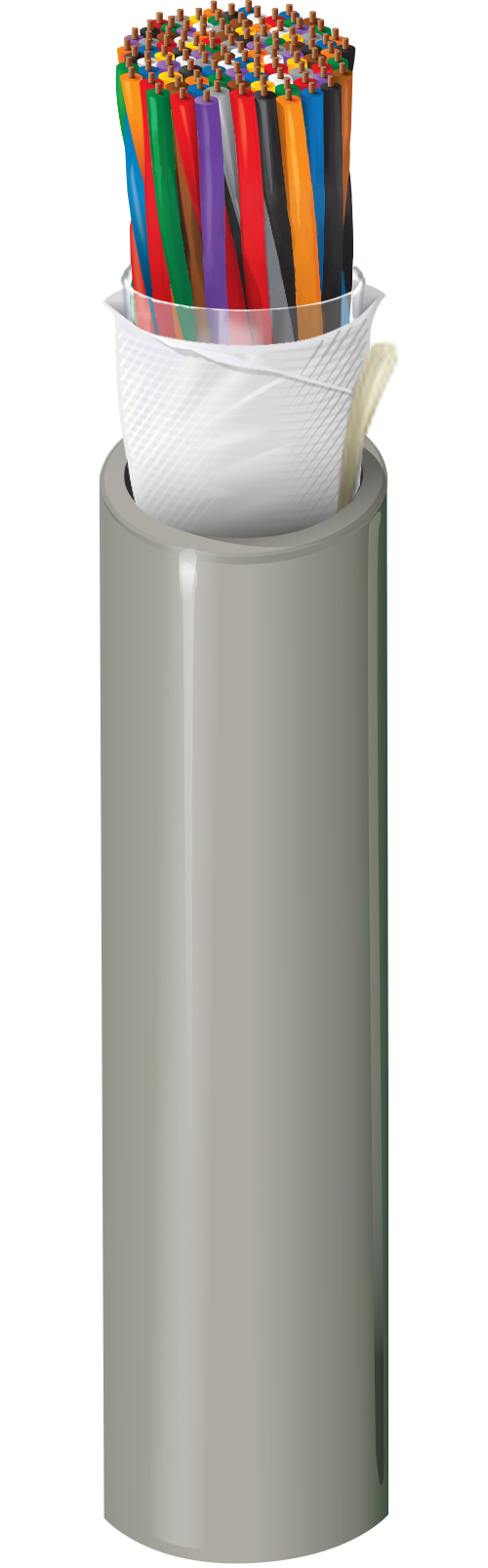

Name: Belden YJ53419B1
Brand: Belden
SKU: YJ53419B1

Ships from and sold by A5 IT.

Part numbers

YJ53419B1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	Order
YJ53419B1 0101000M	Black	1,000 m	Order online
YJ53419B1 0081000M	Gray	1,000 m	Order online

Suitable Applications	Premise Backbone Cable, Ethernet 10BASE-T, Analog Phone, FAX

Overall Cable Diameter (Nominal)	17 mm (0.67 in)

Material	PE - Polyethylene
Color Code	Western Electric Bound in (12P +13P) X 2 Pair Sub-Units, Binder 1: Blue, Binder 2: Orange, Binder 3: Green, Binder 4: Brown

Shield Type	No Shield

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Ripcord	Yes

Max. Conductor DCR	93.8 Ohm/km
Max. Mutual Capacitance	66 pF/m (20 pF/ft)

Frequency	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. SRL (Structural Return Loss) [dB]	Max./Min. Fitted Impedance
1	2.6	41	12	100 ± 15 Ohms
4 MHz	5.6	32	12	100 ± 15 Ohms
8 MHz	8.5	27	12	100 ± 15 Ohms
10 MHz	9.7	26	12	100 ± 15 Ohms
16 MHz	13.1	23	10	100 ± 15 Ohms

Max. Pull Tension	400 N (90 lbf)
Bulk Cable Weight	315 kg/km (212 lbs/1000ft)

UL Temperature	72 V DC
Operating	-20°C to +60°C

Installation Min.	170 mm (6.7 in)

GB Compliance	GB 31247
TIA/EIA Compliance	ANSI/ TIA 568 .2 D Category 3
ISO/IEC Compliance	IEC 11801-1
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
