Product Number: 1232A1

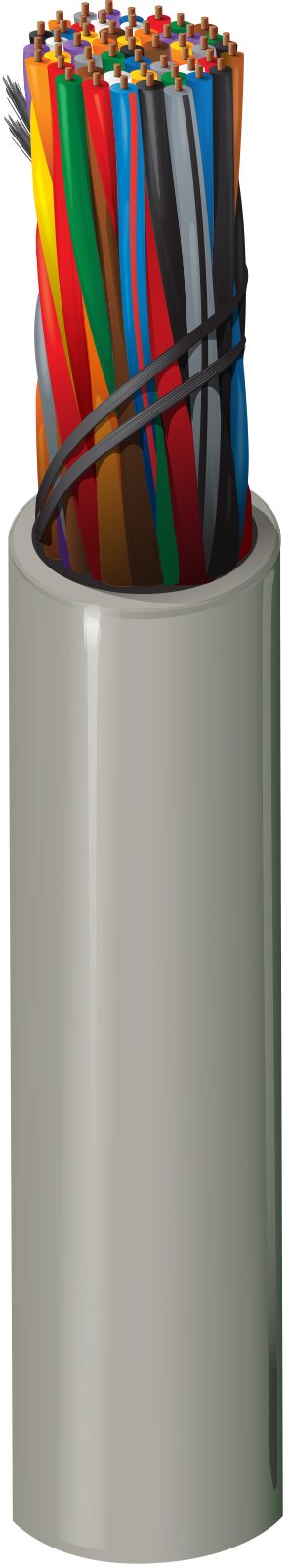

CAT3 Horizontal, 25pr, UTP, PVC Jkt, CMR

CAT3 (16MHz), 25-Pair, U/UTP-unshielded, Riser-CMR, Premise Backbone Cable, 24 AWG solid bare copper conductors, semi-rigid PVC insulation, PVC jacket

Availability: Global
Status: Discontinued
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

1232A1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
1232A1 0081000	Gray	Reel	1,000 ft	612825109648	C	Order online

Specifications

Product Overview

Suitable Applications	802.3 10BaseT, 100BaseT4

Product Life Cycle

Life Cycle	Discontinued - the product is no longer manufactured
Discontinuation Announcement Date	2000-02-21

Construction Details

Conductor

Size	24
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	25

Insulation

Material

PO - Polyolefin

Color Code

White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe, Red/Orange Stripe & Orange/Red Stripe, Red/Green Stripe & Green/Red Stripe, Red/Brown Stripe & Brown/Red Stripe, Red/Gray Stripe & Gray/Red Stripe, Black/Blue Stripe & Blue/Black Stripe, Black/Orange Stripe & Orange/Black Stripe, Black/Green Stripe & Green/Black Stripe, Black/Brown Stripe & Brown/Black Stripe, Black/Gray Stripe & Gray/Black Stripe, Yellow/Blue Stripe & Blue/Yellow Stripe, Yellow/Orange Stripe & Orange/Yellow Stripe, Yellow/Green Stripe & Green/Yellow Stripe, Yellow/Brown Stripe & Brown/Yellow Stripe, Yellow/Gray Stripe & Gray/Yellow Stripe, Purple/Blue Stripe & Blue/Purple Stripe, Purple/Orange Stripe & Orange/Purple Stripe, Purple/Green Stripe & Green/Purple Stripe, Purple/Brown Stripe & Brown/Purple Stripe, Purple/Gray Stripe & Gray/Purple Stripe

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.399 in (10.1 mm)
Ripcord	No

Electrical Characteristics

Electricals

Max. Conductor DCR	93.8 Ohm/km (28.6 Ohm/1000ft)
Max. Capacitance Unbalance	330 pF/100m

Delay

Frequency	16 MHz
Max. Delay	543 ns/100m
Nom. Velocity of Prop.	70%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. PSNEXT [dB]	Min. SRL (Structural Return Loss) [dB]	Max./Min. Fitted Impedance
1	2.6	41.0	12.0	100 ± 15 Ohm
4	5.6	32.0	12.0	100 ± 15 Ohm
8	8.5	27.0	12.0	100 ± 15 Ohm
10	9.7	26.0	12.0	100 ± 15 Ohm
16	13.1	23.0	10.0	100 ± 15 Ohm

Voltage

UL Voltage Rating	300 V RMS

Mechanical Characteristics

Max. Pull Tension	150 lbs (68 kg)
Bulk Cable Weight	90 lbs/1000ft (130 kg/km)

Temperature

UL Temperature	60°C
Operating	-20°C To +60°C
Installation	0°C To +50°C
Storage	-20°C To +60°C

Bend Radius

Stationary Min.	2.25 in (57.2 mm)
Installation Min.	2.75 in (69.9 mm)

Standards and Compliance

Environmental Suitability	Riser, Indoor
Sustainability	Product LensTM, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire	UL 1666 Riser
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	CMR
CEC / C(UL) Compliance	CMR.
IEEE Compliance	802.3 10BaseT, 100BaseT4
Data Category	Category 3
TIA/EIA Compliance	ANSI/TIA-568-C.2 Category 3
Third Party Performance Verification	Category 3
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage Markings.
