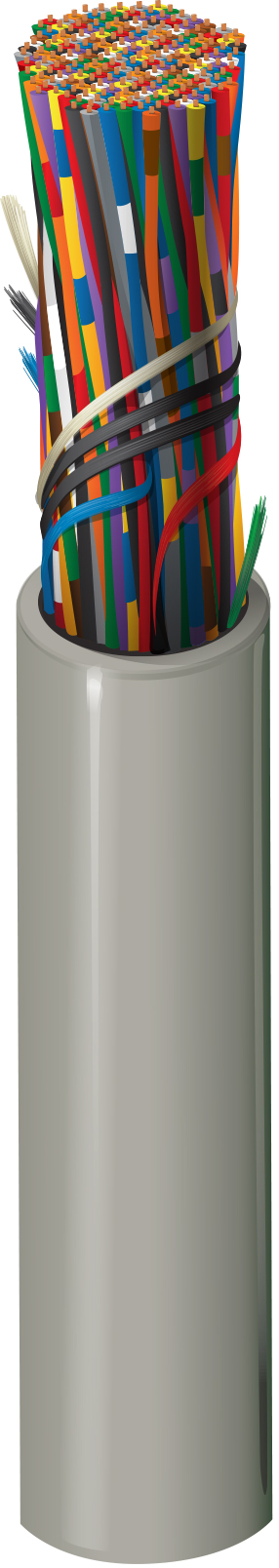

Product Number: DPLN300

CAT3 Backbone, 300pr, UTP, LS-PVC Jkt, CMP

CAT3, DIW 300-Pair, U/UTP-unshielded, Plenum-CMP, Premise Backbone Cable, 24 AWG solid bare copper conductors, LS-PVC insulation, ripcord, LS-PVC jacket

Availability: Global
Status: Discontinued
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

DPLN300 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
DPLN300 732CUT	Olive	Cut to Length	612825061038	Order online
DPLN300 732CUT	Olive	Cut to Length	612825061038	Order online

Specifications

Product Overview

Suitable Applications	Premise Backbone Cable

Product Life Cycle

Life Cycle	Discontinued - the product is no longer manufactured
Discontinuation Announcement Date	2022-04-20

Construction Details

Conductor

Size	24
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	300

Insulation

Material

Color Code

PVC - Polyvinyl Chloride

White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Slate & Slate/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/Green & Green/Red, Red/Brown & Brown/Red, Red/Slate & Slate/Red, Black/Blue & Blue/Black, Black/Orange & Orange/Black, Black/Green & Green/Black, Black/Brown & Brown/Black, Black/Slate & Slate/Black, Yellow/Blue & Blue/Yellow, Yellow/Orange & Orange/Yellow, Yellow/Green & Green/Yellow, Yellow/Brown & Brown/Yellow, Yellow/Slate & Slate/Yellow, Violet/Blue & Blue/Violet, Violet/Orange & Orange/Violet, Violet/Green & Green/Violet, Violet/Brown & Brown/Violet, Violet/Slate & Slate/Violet, White/Blue, White/Orange, White/Green, White/Brown, White/Slate, Red/Blue, Red/Orange, Red/Green, Red/Brown, Red/Slate, Black/Blue, Black/Orange

Blue/White, Orange/White, Green/White, Brown/White, Gray/White, Blue/Red, Orange/Red, Green/Red, Red/Brown, Red/Gray, Black/Blue, Black/Orange

Outer Jacket

Material	PVC - Polyvinyl Chloride
Material Trade Name	Flamarrest®
Nom. Diameter	1.350 in (34.29 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Max. Conductor DCR	93.8 Ohm/km (28.6 Ohm/1000ft)
Max. Capacitance Unbalance	330 pF/100m

Delay

Frequency	16 MHz
Max. Delay	543 ns/100m
Max. Delay Skew	45 ns/100m
Nom. Velocity of Prop.	61%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. RL (Return Loss) [dB]	Max./Min. Fitted Impedance
0.772	2.2	47.0	43.0	50.1	46.1
1	2.6	45.0	41.0	47.8	43.8	12.0	100 ± 15 Ohm
4	5.6	36.0	32.0	36.0	32.0	12.0	100 ± 15 Ohm
8	8.5	31.0	28.0	28.3	24.3	12.0	100 ± 15 Ohm
10	9.7	30.0	26.0	26.2	22.3	12.0	100 ± 15 Ohm
16	13.1	27.0	23.0	20.1	16.1	10.0	100 ± 15 Ohm

Voltage

UL Voltage Rating	300 V RMS

Mechanical Characteristics

Max. Pull Tension	1800 lbs (820 kg)
Bulk Cable Weight	1220 lbs/1000ft (1820 kg/km)

Temperature

Operating	-30°C To +60°C
Installation	0°C To +50°C
Storage	-30°C To +60°C

Bend Radius

Stationary Min.	13.5 in (343 mm)
Installation Min.	27.0 in (686 mm)

Standards and Compliance

Environmental Suitability	Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262 Plenum (UL 910), FT6
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	CMP
CEC / C(UL) Compliance	CMP.
Data Category	Category 3
TIA/EIA Compliance	ANSI/TIA-568-C.2 Category 3
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	DIW300

Product Notes

Notes	Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings.
