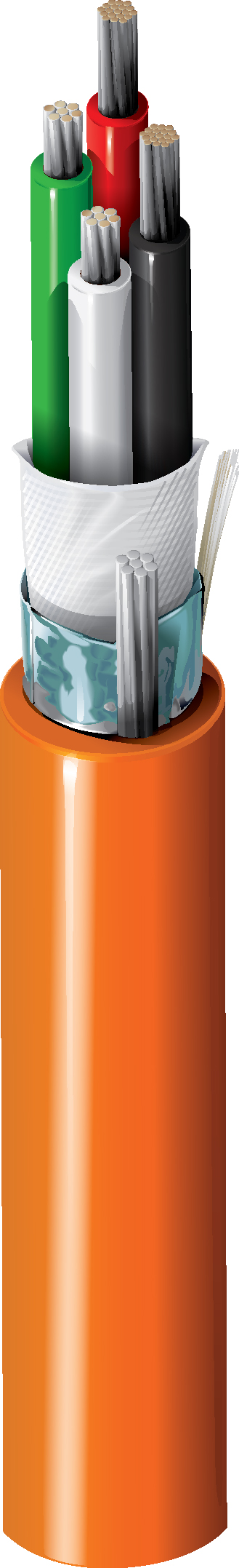

DeviceBus® for Square D/Seriplex®, 3 Pr #12+16+22 Str TC, PVC+PVC+PO Ins, OS (Data), PVC Jkt, CM
DeviceBus® for Square D/Seriplex®, 3 Pair 12+16+22AWG (65x30+26x30+7x30) Tinned Copper, PVC+PVC+PO Insulation, Overall Beldfoil® (Data Pair Only) Shield, PVC Outer Jacket, CM
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
3126A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 3126A 0031000 | Orange | Reel | 1,000 ft | 612825142041 | C | Order online |
Specifications
Product Overview
| Suitable Applications | harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Construction Details
Conductor
| Size | Stranding | Material |
|---|---|---|
| 16 | 26x30 | TC - Tinned Copper |
| 22 | 7x30 | TC - Tinned Copper |
| 12 | 65x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code | Notes |
|---|---|---|---|---|
| 16 AWG | PE - Polyethylene | 0.025 in (0.64 mm) | Red and Black, Green and White, White/Red and White/Black | HDPE |
| 22 AWG | PE - Polyethylene | 0.0405 in (1.03 mm) | HDPE | |
| 12 AWG | PVC - Polyvinyl Chloride | 0.018 in (0.46 mm) |
Inner Shield
| Element | Data Pair(s) |
|---|
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Outer Jacket
| Separator | PO - Polyolefin (Foam) Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.039 in (0.99 mm) |
| Nom. Diameter | .486 x .363 in |
Electrical Characteristics
| Nom Outer Shield DCR | 16 Ohm/1000ft (52 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedence | Nom. Velocity of Prop. |
|---|---|---|---|
| 4.49 Ohm/1000ft (14.7 Ohm/km) | 28 pF/ft (92 pF/m) | 120 Ohm | 78% |
| 18.1 Ohm/1000ft (59.4 Ohm/km) | 16 pF/ft (52 pF/m) | 78% | |
| 1.8 Ohm/1000ft (5.9 Ohm/km) | 48% |
Voltage
| UL Voltage Rating | 300 V RMS (CL2), (CM) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 262 lbs (119 kg) |
|---|---|
| Bulk Cable Weight | 105 lbs/1000ft (156 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C to +75°C |
Standards and Compliance
| Flammability / Reaction to Fire | UL1685 UL Loading |
|---|---|
| NEC / UL Compliance | Article 725, Article 800, CL2, CM |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.348 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
