Blue Hose®, 1 Pr #18 Str TC, PP Ins, OS+TC Brd, PVC Jkt, AIA Armor, PVC Jkt, PLTC
Blue Hose® for Data Highway Plus, 1 Pair 18AWG (7x26) Tinned Copper, Polypropylene Insulation, Overall Beldfoil®+Tinned Copper Braid(55%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, PLTC
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | exposure to rodent, crush, or cut through force, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.617 in (15.7 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 7x26 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.025 in (0.64 mm) |
| Color Code | Blue & White |
| Notes | Flame Retardant |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
| Braid | Tinned Copper (TC) | 55% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.324 in (8.23 mm) |
Armor
| Armor Type & Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.045 in (1.1 mm) |
| Nom. Diameter | 0.617 in (15.7 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Characteristic Impedence | 78 Ohm |
| Nom. Velocity of Prop. | 65% |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|
Voltage
| UL Voltage Rating | 300 V (CM, PLTC), 150 V (ITC) |
|---|
Mechanical Characteristics
| Temperature Table Notes | -40C |
|---|
Temperature
| UL Temperature | 75°C Dry |
|---|
Standards and Compliance
| Environmental Suitability | Outdoor, Sunlight Resistance |
|---|---|
| NEC / UL Compliance | Article 725, Article 727, Article 800, CM, ITC, PLTC |
| CEC / C(UL) Compliance | CMG HL. |
History
| Update and Revision | Revision Number: 0.64 Revision Date: 02-15-2024 |
|---|
Resources
Related multi-pair cable
123078F
Fieldbus, 1 Pr #22 Str TC, FPE Ins, OS, PVC Jkt, AIA Armor, PVC Jkt, Flexible, PLTC, ITC, CM
1 · 22 AWG · TC - Tinned Copper · PE - Polyethylene (Foam)
123079A
Profibus, 1 Pr #22 Sol BC, PE Ins, OS+TC Brd, PVC jkt, AIA, PVC Jkt, PLTC CM Profibus DP
1 · 22 AWG · BC - Bare Copper · PE - Polyethylene (Foam)
123079E
Profibus, 1 Pr #22 Str BC, PE Ins, OS+TC Brd, PVC jkt, AIA, PVC Jkt, PLTC CM Profibus DP
1 · 22 AWG · BC - Bare Copper · PE - Polyethylene (Foam)

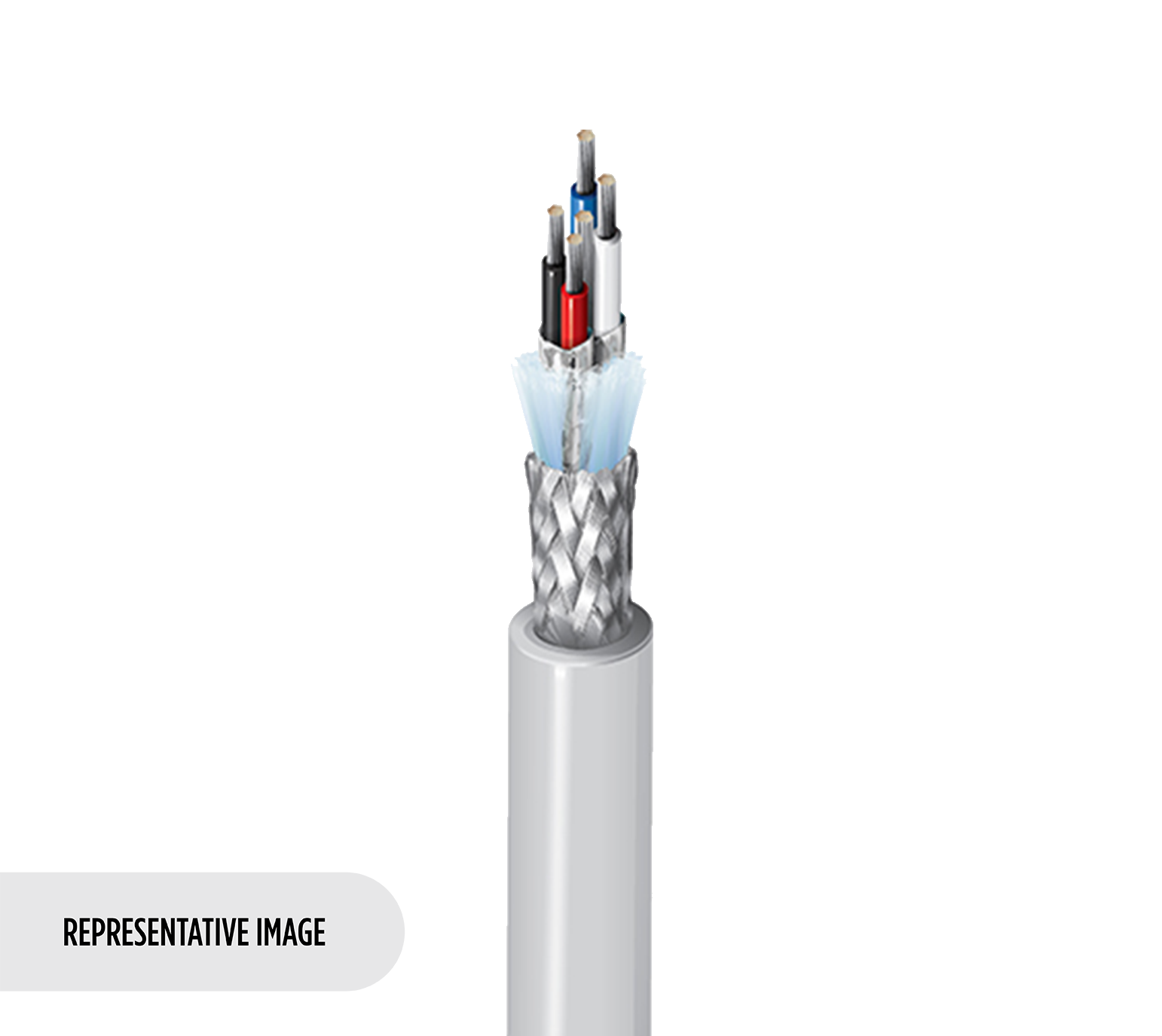

123082A
