DeviceBus® for Square D/Seriplex®, 2 Pr #18+22 Str TC, FPE Ins, OS, PVC Jkt, CM

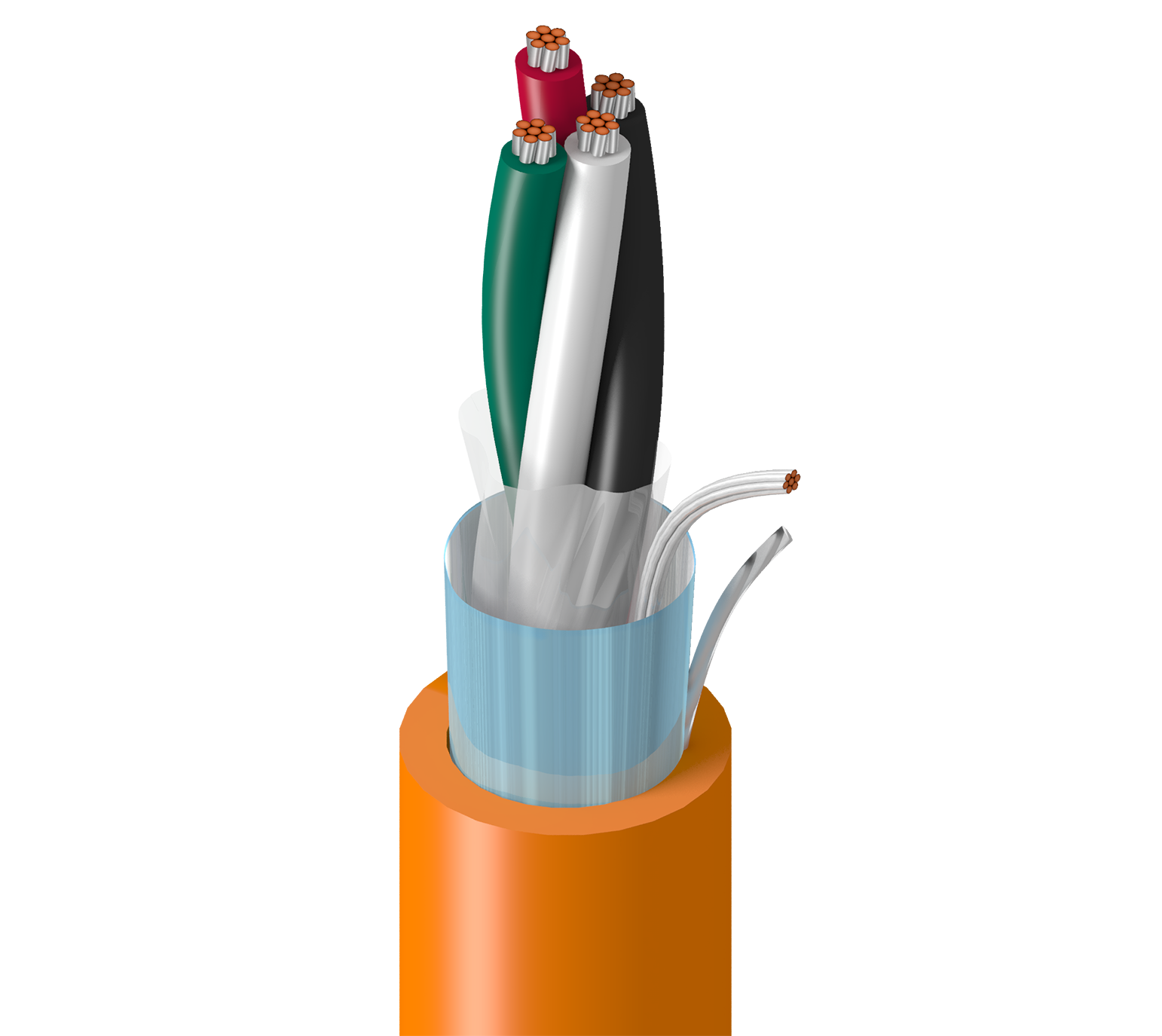

DeviceBus® for Square D/Seriplex®, 2 Pair 18+22AWG (16x30+7x30) Tinned Copper, FPE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
3124A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 3124A 0031000 | Orange | Reel | 1,000 ft | 612825142010 | C | Order online |
Specifications
Product Overview
| Suitable Applications | harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.308 in (7.82 mm) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Power Pair(s) | 1 | 18 AWG | 16x30 | TC - Tinned Copper |
| Data Pair(s) | 1 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code | Notes |
|---|---|---|---|---|
| Power Pair(s) | PE - Polyethylene (Foam) | 0.026 in (0.66 mm) | Black & Red | HDPE |
| Data Pair(s) | PE - Polyethylene (Foam) | 0.0315 in (0.800 mm) | White & Green | HDPE |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 22 AWG (7x30) TC |
| Notes | Foam PP tape under foil tape |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.039 in (0.99 mm) |
| Nom. Diameter | 0.308 in (7.82 mm) |
| Ripcord | Yes |
Electrical Characteristics
| Nom Outer Shield DCR | 10.7 Ohm/1000ft (35.1 Ohm/km) |
|---|
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedence | Nom. Velocity of Prop. |
|---|---|---|---|---|
| Power Pair(s) | 6.8 Ohm/1000ft (22 Ohm/km) | 20 pF/ft (66 pF/m) | ||
| Data Pair(s) | 18.1 Ohm/1000ft (59.4 Ohm/km) | 16 pF/ft (52 pF/m) | 120 Ohm | 78% |
Voltage
| UL Voltage Rating | 300 V (CM), 600 V (UL AWM 20201) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 60 lbs (27 kg) |
|---|---|
| Bulk Cable Weight | 39.3 lbs/1000ft (58.5 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C to +75°C |
Bend Radius
| Stationary Min. | 3.75 in (95.3 mm) |
|---|---|
| Installation Min. | 3.75 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, Article 800, CL2, CM |
| AWM Compliance | AWM 20201 |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.459 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
