Product Number: 3084F

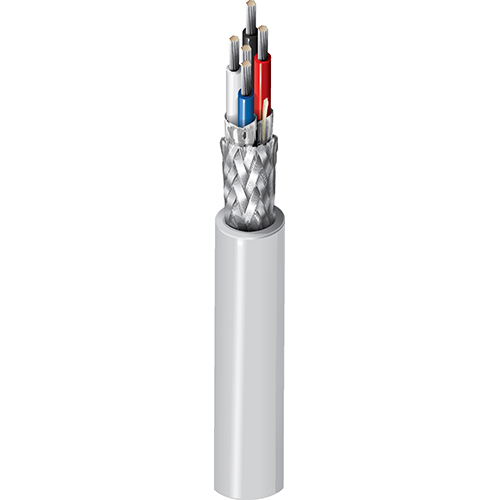

DeviceBus®, 2 Pr #22+24 Str TC, PVC+FPP Ins, IS+OA TC Brd, PVC Jkt, High Flex, CMG, CL2

DeviceBus® for ODVA DeviceNetTM, 2 Pair 22+24AWG (26x36+19x36) Tinned Copper, PVC+Foam PP Insulation, Individual Beldfoil® & OA Tinned Copper Braid(65%) Shield, PVC Outer Jacket, High Flex, CMG, CL2

Availability: Global
Status: Active
Orderable items: 4

Ships from and sold by A5 IT.

Part numbers

3084F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
3084F T5U500	Gray T5U	Reel	500 ft	612825140955	C N	Order online
3084F T5U1000	Gray T5U	Reel	1,000 ft	612825140931	C	Order online
3084F T5U2000	Gray T5U	Reel	2,000 ft	612825140948	C	Order online
3084F T5U5000	Gray T5U	Reel	5,000 ft	612825140962	C Z	Order online

Specifications

Product Overview

Suitable Applications	harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.

Construction Details

Overall Cable Diameter (Nominal)	0.275 in (6.99 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Power Pair(s)	1	22 AWG	26x36	TC - Tinned Copper
Data Pair(s)	1	24 AWG	19x36	TC - Tinned Copper

Insulation

Element	Material	Nom. Thickness	Color Code
Power Pair(s)	PVC - Polyvinyl Chloride	0.016 in (0.41 mm)	Red & Black
Data Pair(s)	PP - Polypropylene	0.028 in (0.71 mm)	Blue & White

Inner Shield

Element	Shield Type	Material	Coverage
Power Pair(s)	Tape	Bi-Laminate (Alum+Poly)	100%
Data Pair(s)	Tape	Bi-Laminate (Alum+Poly)	100%

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	65%
Drainwire Type	22 AWG (26x36) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.036 in (0.91 mm)
Nom. Diameter	0.275 in (6.99 mm)

Electrical Characteristics

Nom Outer Shield DCR	3.2 Ohm/1000ft (10 Ohm/km)

Electricals

Element	Nom. Conductor DCR	Max. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Characteristic Impedence	Nom. Delay	Nom. Velocity of Prop.	Max. Current
Power Pair(s)	17.5 Ohm/1000ft (57.4 Ohm/km)	17.5 Ohm/1000ft					4 Amps Per Conductor at 24 V (per NEC CL2) (Power Pair)
Data Pair(s)		28 Ohm/100m	12.0 pF/ft (39.4 pF/m)	120 Ohm	1.36 ns/ft	75%	4 Amps Per Conductor at 24 V (per NEC CL2) (Power Pair)

Voltage

UL Voltage Rating	300 V (CMG)

Mechanical Characteristics

Max. Pull Tension	65 lbs (29 kg)
Bulk Cable Weight	41 lbs/1000ft (61 kg/km)

Temperature

UL Temperature	75°C
Operating	-20°C to +75°C

Bend Radius

Stationary Min.	2.75 in (69.9 mm)
Installation Min.	2.75 in (69.9 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 FT4 Loading, 1202
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 725, Article 800, CL2, CMG
AWM Compliance	I/II A
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	ODVA Class 2 Thin

Product Notes

Notes	Hi-Flex. Thin. Flex Test Results: "S-Bend" Flex Test - 4" Diameter Wheels, 2 lbs. tension: 150, 000 Cycles Averaged. +/-90 Degree Flex Test: 2"" Diameter, 2 lbs. tension - 8500 Cycles Averaged. Flex tests were conducted at less than the recommeded cable minimum bend radius. Actual cable performance will depend on the individual application. Meter marks on jacket to aid users in installation.

History

Update and Revision	Revision Number: 0.700 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
