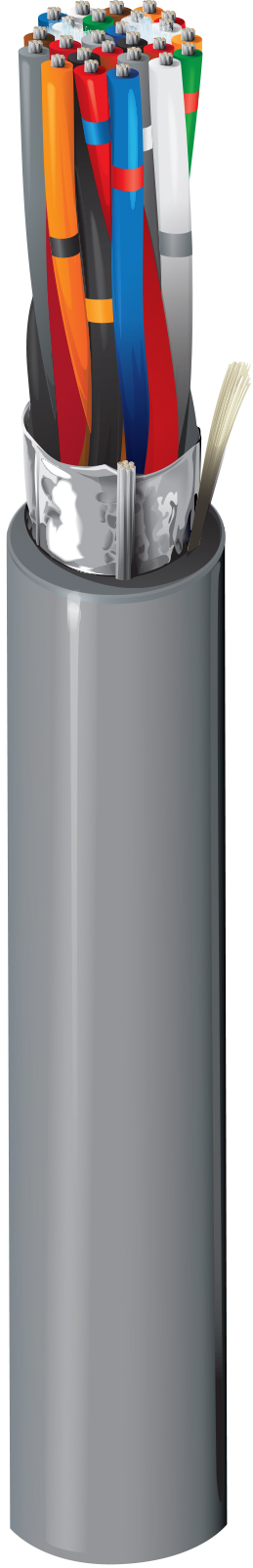

RS232/422 Low Cap, #24-12.5pr, FPE, O/A Foil, PVC Jkt, CM, 100Ω
Computer EIA RS-232/422 Cable, 12.5-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
1424A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 1424A 0601000 | Chrome | 612825115113 | C | Order online |
| 1424A 060500 | Chrome | 612825115120 | C | Order online |
Specifications
Product Overview
| Suitable Applications | RS-232 extended distance applications; RS-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.418 in (10.6 mm) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 12 | 24 AWG | 7x32 | TC - Tinned Copper |
| Conductor(s) | 1 | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PE - Polyethylene (Foam) | 0.0125 in (0.318 mm) | 0.049 in (1.2 mm) | Western Electric Standard |
| Conductor(s) | PE - Polyethylene (Foam) | 0.0125 in (0.318 mm) | 0.049 in (1.2 mm) | Gray |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.035 in (0.89 mm) |
| Nom. Diameter | 0.418 in (10.6 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 12 Ohm/1000ft (39 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 24 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 13 pF/ft (43 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 22 pF/ft (72 pF/m) |
| Nom. Characteristic Impedence | 100 Ohm |
| Nom. Inductance | 0.213 μH/ft (0.699 μH/m) |
| Nom. Velocity of Prop. | 78% |
| Max. Current | 1.8 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CM), 30 V (UL AWM 2919) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 138 lbs (62.6 kg) |
|---|---|
| Bulk Cable Weight | 76 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C to +80°C |
Bend Radius
| Stationary Min. | 2.9 in (74 mm) |
|---|---|
| Installation Min. | 2.9 in (74 mm) |
Standards and Compliance
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
|---|---|
| Flammability / Reaction to Fire | UL 1685 FT4 Loading |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2919 |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight. |
|---|
History
| Update and Revision | Revision Number: 0.451 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
