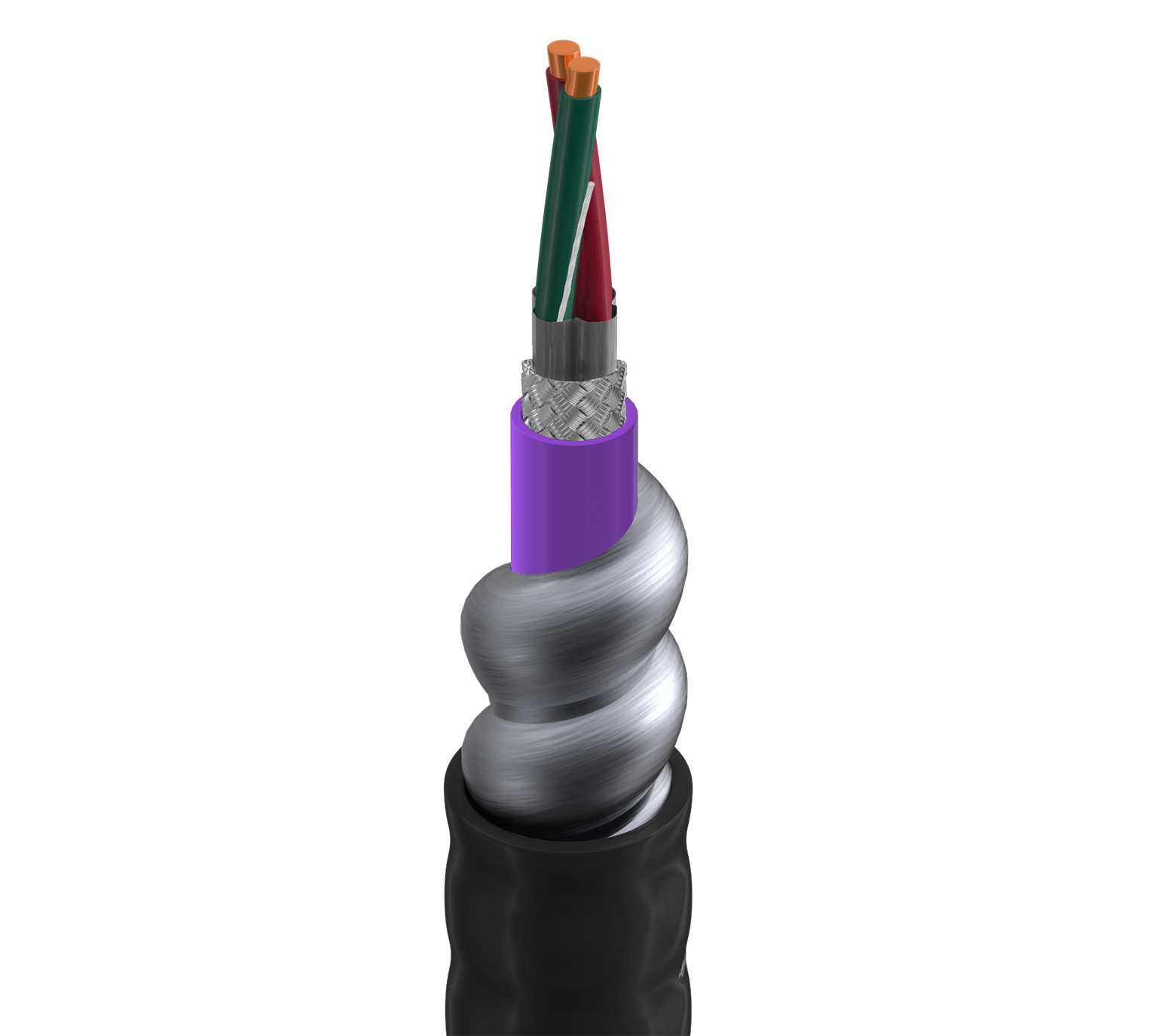

Product Number: 123107A

RS485, 2 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, AIA Armor, PVC Jkt, CM, PLTC

RS-485, 2 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM, PLTC

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

123107A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
123107A 0105000	Black	Reel	5,000 ft	612825109631	C Z	Order online

Specifications

Product Overview

Suitable Applications	exposure to rodent, crush, or cut through force, burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.

Construction Details

Overall Cable Diameter (Nominal)	0.690 in (17.5 mm)

Conductor

Element	Pair(s)
No. of Elements	2
Size	22 AWG
Stranding	7x30
Material	TC - Tinned Copper

Insulation

Element	Pair(s)
Material	PE - Polyethylene (Foam)
Nom. Thickness	0.025 in (0.64 mm)
Nom. Insulation Diameter	0.079 in (2.0 mm)
Color Code	White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe
Notes	HDPE

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	22 AWG (7x30) TC
Braid	Tinned Copper (TC)	65%

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.053 in (1.3 mm)
Nom. Diameter	0.350 in (8.89 mm)

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Armor Thickness	0.025 in
Armor Material Diameter	0.560 in

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.045 in (1.1 mm)
Nom. Diameter	0.690 in (17.5 mm)

Electrical Characteristics

Nom Outer Shield DCR	2.95 Ohm/1000ft (9.68 Ohm/km)

Electricals

Element	Pair(s)
Nom. Conductor DCR	18.7 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	11 pF/ft (36 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	20.9 pF/ft (68.6 pF/m)
Nom. Characteristic Impedence	120 Ohm
Nom. Velocity of Prop.	78%
Max. Current	2.7 Amps per Conductor at 25oC

High Frequency (Nominal/Typical)

Element	Pair(s)
Frequency [MHz]	1
Nom. Insertion Loss (Attenuation)	0.5 dB/100ft

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Temperature Table Notes	-40C
Max. Pull Tension	200 lbs (91 kg)
Bulk Cable Weight	172 lbs/1000ft

Temperature

UL Temperature	60°C
Operating	-40°C to +60°C
Installation	-20°C To +60°C

Bend Radius

Stationary Min.	8.5 in (220 mm)
Installation Min.	8.5 in (220 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	UL 1685 UL Loading, IEEE 1202
NEC / UL Compliance	Article 725, Article 800, CM, PLTC
CEC / C(UL) Compliance	CMG, HLBCD.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

History

Update and Revision	Revision Number: 0.404 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
