Product Number: 9L28309

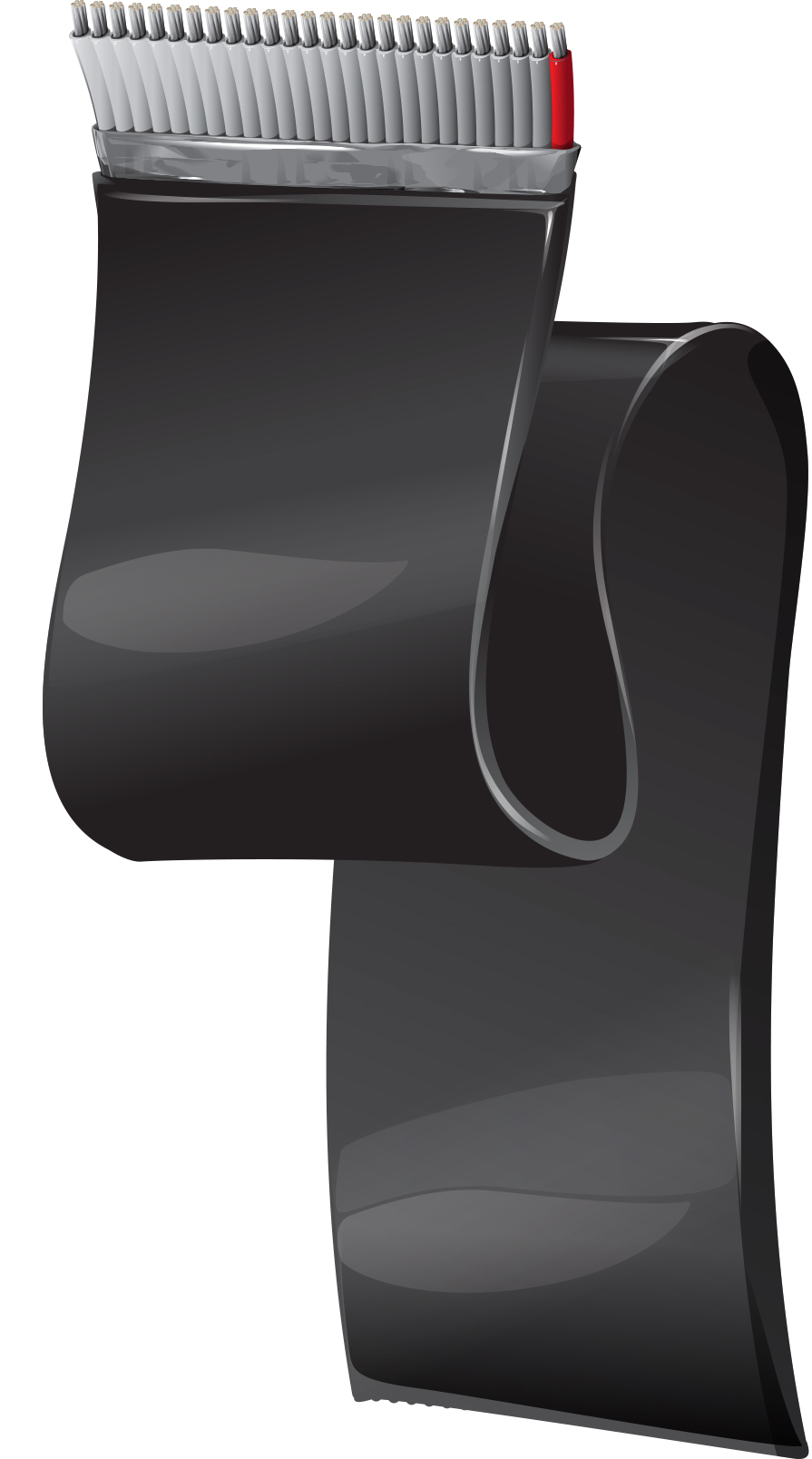

Shielded Flat Ribbon Cable .050" Pitch, 9L283XX Series, #28-9c, PVC Ins, O/A Foil Tape, PVC Jacket

Shielded Flat Ribbon Cable .050" Pitch, 9L283XX Series, 9 Conductor, 28 AWG (7x36) Tinned Copper, Gray PVC Insulation, Beldfoil® Tape, Black PVC Jacket

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

9L28309 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	Length	UPC	Order
9L28309 010100	Black	Reel	100 ft	612825221722	Order online

Specifications

Product Overview

Suitable Applications	Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors, noisy evnvironments

Physical Characteristics (Overall)

Conductor Count	9
Color Chart1 Table Notes	First Conductor has Red Stripe

Conductor

AWG	28
Stranding	7x36
Material	TC - Tinned Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nominal Wall Thickness	0.010 in

Color Chart

Color	Gray

Outer Shield

Type	Tape
Material	Bi-Laminate (Alum+Poly)
Material Trade Name	Beldfoil®
Coverage [%]	100%
Drainwire Material	TC - Tinned Copper
Drainwire AWG	28
Drainwire Construction n x D	7x36

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nominal Wall Thickness	0.038 in

Construction and Dimensions

Conductor Spacing	.050 +/- .002 in
Conductor Spacing Center-Center Outside	.400 +/- .008 in
OuterJacket1, Nominal Width	.520 in
OuterJacket1, Nom Thick Flat Section	0.115 in

Electrical Characteristics

Min Insulation Resistance	10,000 MOhm
High Frequency Table (Nominal/Typical) Notes	GSG=Ground-Signal-Ground Mode

Conductor DCR

Nominal Conductor DCR	68.2 Ohm/1000ft

Capacitance

Element	Nom. Capacitance Conductor to Conductor
@ 1 kHz (GSG) with shield grounded	70 pF/ft
@ 1 MHz (GSG) with shield grounded	50 pF/ft

Inductance

Element	@ 1 MHz (GSG) with shield grounded
Nominal Inductance	0.11 μH/ft

Impedance

Nominal Characteristic Impedance	45 Ohm
Nominal Characteristic Impedance Description	(GSG) with shield grounded

High Frequency (Nominal/Typical)

Frequency [MHz]	Nom. Insertion Loss
10 MHz	6 dB/100ft
20 MHz	9.5 dB/100ft
30 MHz	12.5 dB/100ft
40 MHz	14.9 dB/100ft
50 MHz	17.2 dB/100ft
60 MHz	19 dB/100ft
70 MHz	21.5 dB/100ft
80 MHz	23 dB/100ft
90 MHz	24.5 dB/100ft
100 MHz	26 dB/100ft

Delay

Nominal Delay	1.7 ns/ft
Nominal Velocity of Propagation (VP) [%]	60%

Unbalanced Crosstalk

Element	Typical Unbalanced NEXT %	Typical Unbalanced FEXT %	Typical Cross Talk Pulse Rise Time (ns)
10 ft. sample length with ground connected to shield	1.5	2	3 ns
10 ft. sample length with ground connected to shield	0.9	1.5	5 ns
10 ft. sample length with ground connected to shield	0.7	1.2	7 ns

Current

Max. Recommended Current [A]	1 Amp per Conductor at 20oC

Voltage

Dielectric Withstand Voltage	2000 V
UL Voltage Rating	300 V

Temperature Range

Operating Temperature Range	-20°C to +105°C

Mechanical Characteristics

Bulk Cable Weight	44 lbs/1000ft
Minimum Bend Radius During Installation	3.0 in
Minimum Minor Axis Bend Radius	1.25 in

Standards

UL AWM Style Compliance	AWM 20081
CSA AWM Compliance	II A

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/96/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
CA Prop 65 (CJ for Wire and Cable)	Yes
MII Order #39 (China RoHS)	Yes
