Product Number: 9L26016

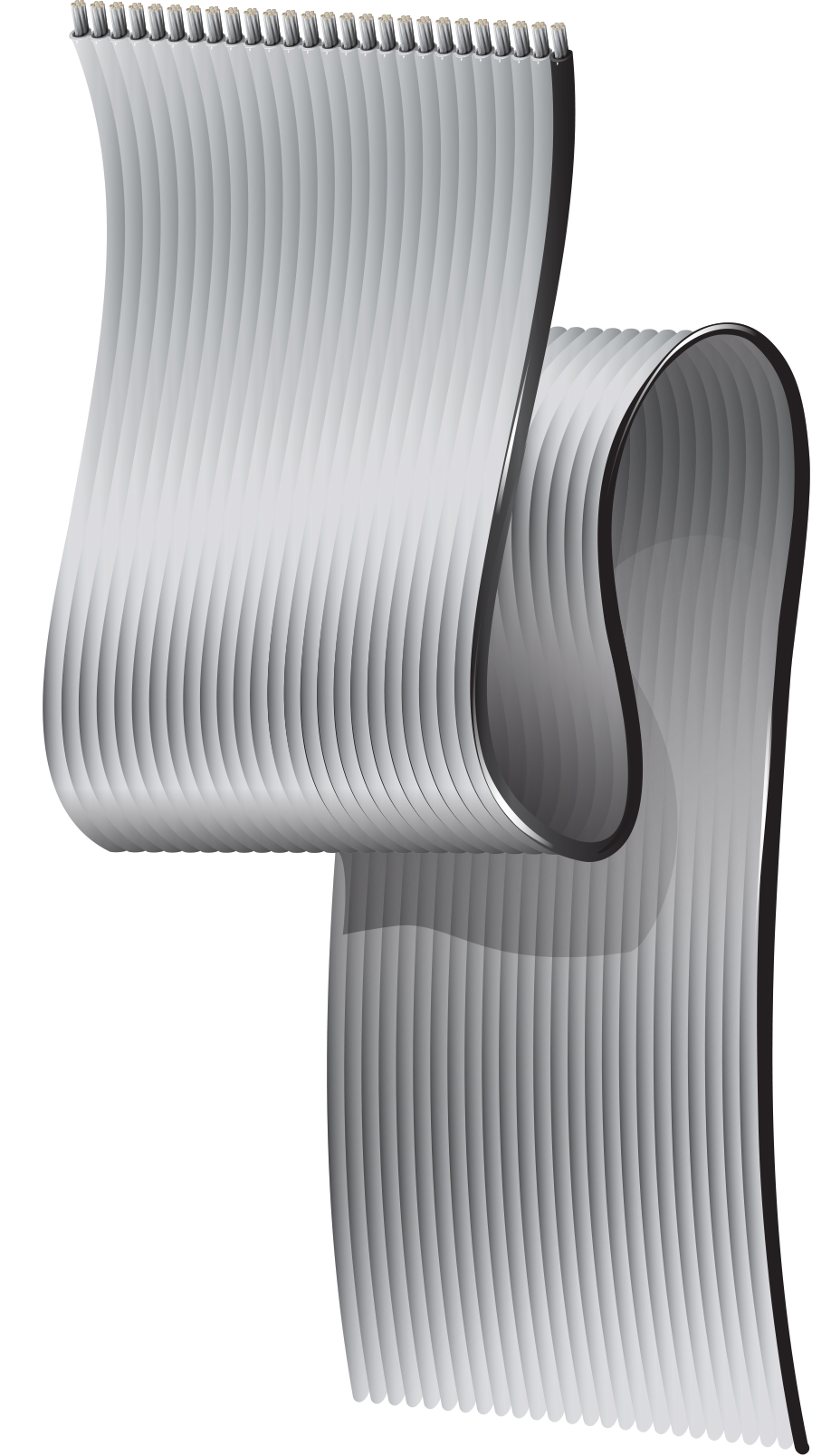

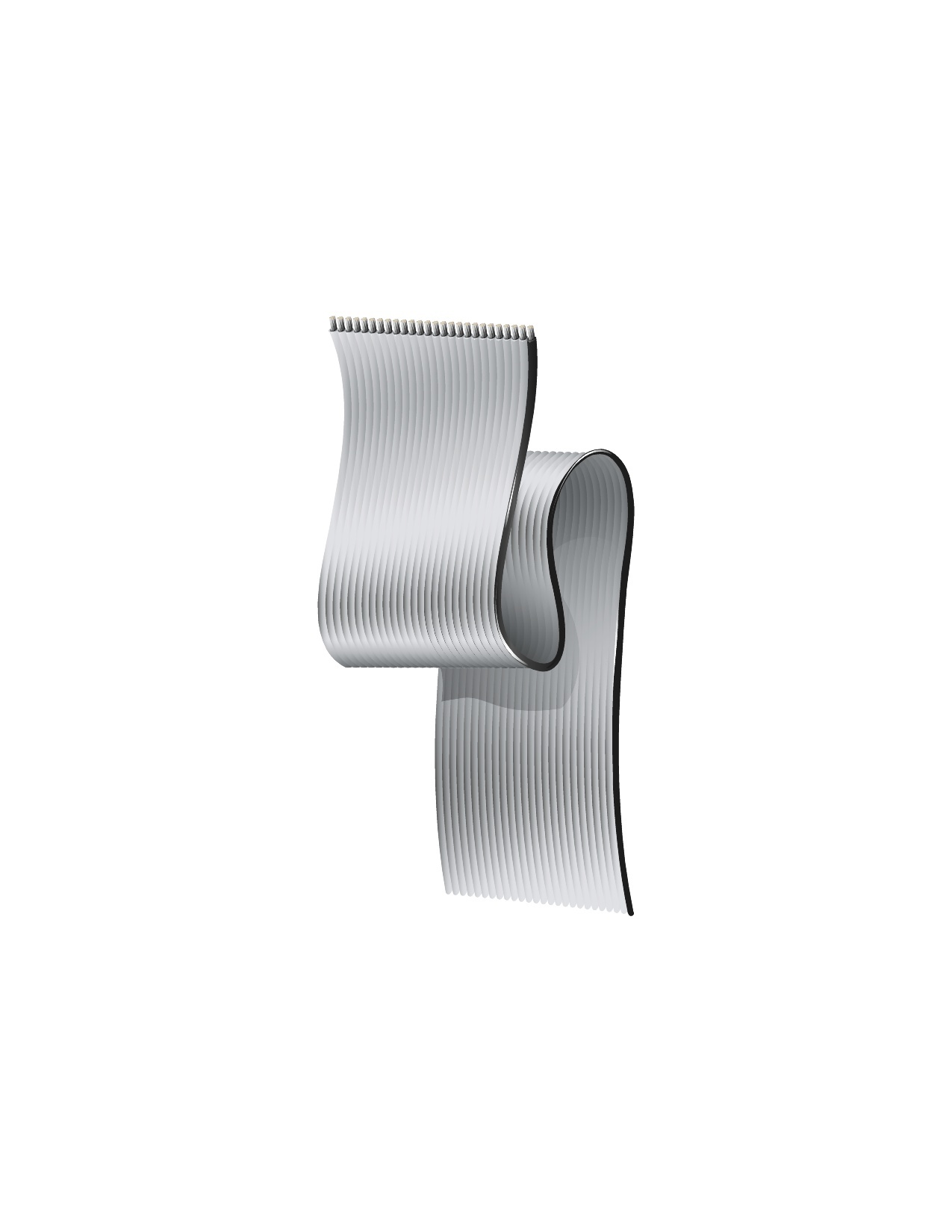

Flat Gray Ribbon Cable .050" Pitch, 9L260XX Series, #26-16c, PVC Ins

Name: Belden 9L26016
Brand: Belden
SKU: 9L26016

Flat Gray Ribbon Cable .050" Pitch, 9L260XX Series, 16 Conductor, 26 AWG (7x34) Tinned Copper, PVC Insulation

Ships from and sold by A5 IT.

Part numbers

9L26016 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	UPC	Order
9L26016 008H100	Gray	100 ft	612825221531	Order online

Suitable Applications	Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors

Conductor Spacing Center-Center	.050 +/- .002 in
Conductor Spacing Center-Center Outside	.750 +/- .008 in

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.038 in (0.97 mm)
Color Code	Gray
Notes	A Blue Stripe over the first conductor

High Frequency Table (Nominal/Typical) Notes	GS=Ground-Signal Mode; GSG=Ground-Signal-Ground Mode

Electricals

Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Characteristic Impedence	Nom. Delay	Nom. Inductance	Nom. Velocity of Prop.	Max. Current
43 Ohm/1000ft	23 pF/ft (75 pF/m)	135 Ohm	1.48 ns/ft	0.23 μH/ft (0.75 μH/m)	68%	1.5 Amps per Conductor at 20oC
	11 pF/ft (36 pF/m)	90 Ohm		0.15 μH/ft (0.49 μH/m)
	18 pF/ft (59 pF/m)

Element	Typical Unbalanced NEXT %	Typical Unbalanced FEXT %	Typical Cross Talk Pulse Rise Time
10 ft. sample length	5.2	6.2	3 ns
10 ft. sample length	4.2	5	5 ns
10 ft. sample length	3.3	3.8	7 ns

Frequency [MHz]	Nom. Insertion Loss (Attenuation)
10	3.9 dB/100ft
20	6.4 dB/100ft
30	8.7 dB/100ft
40	13 dB/100ft
50	16.9 dB/100ft
60	20.1 dB/100ft
70	22.5 dB/100ft
80	23.9 dB/100ft
90	25.1 dB/100ft
100	26.4 dB/100ft

UL Voltage Rating	300 V

Bulk Cable Weight	25 lbs/1000ft

UL Temperature	105°C
Operating	-40°C to +105°C

Installation Min.	2.07 in (52.6 mm)

Environmental Suitability	Indoor
Flammability / Reaction to Fire	VW-1
AWM Compliance	AWM 2651, AWM 1/11, A
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
