Product Number: C5625

Teck90 1000V, 3+G C #1+6 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

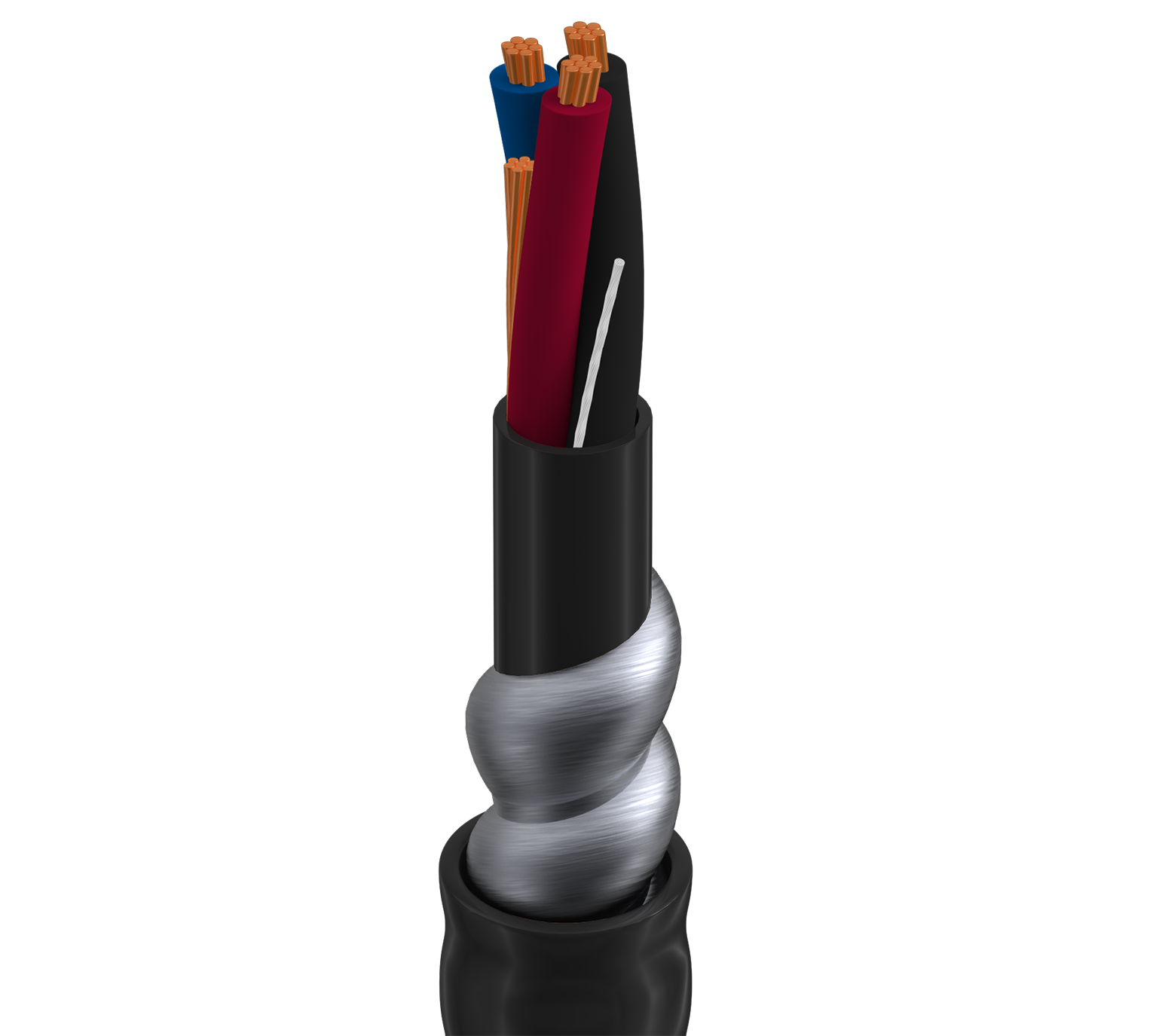

Teck90 1000V, 3+G Conductor 1+6AWG (19x14) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C

Availability: Global
Status: Active
Orderable items: 7

Ships from and sold by A5 IT.

Part numbers

C5625 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	Order
C5625 0101640	Reel	Order online
C5625 0102460	Reel	Order online
C5625 0103280	Reel	Order online
C5625 010984	Reel	Order online
C5625 0102460	Reel	Order online
C5625 0101968	Reel	Order online
C5625 0102500	Reel	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.72 Revision Date: 02-20-2026

Product Overview

Suitable Applications	CEC Power and Control Applications up to 600V

Construction Details

Overall Cable Diameter (Nominal)	1.579 in (40.11 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	1 AWG	19x14	BC - Bare Copper
Ground Wire	1	6 AWG	7x14	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLP, XLPO, XLPE (Thermoset)	0.080 in (2.0 mm)	0.487 in mm	Black, Red, Blue
Ground Wire	No Insulation

Outer Shield

Material	No Shield

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.083 in (2.1 mm)
Nom. Diameter	1.213 in (30.81 mm)

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Diameter Over Armor	1.473 in

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.053 in (1.3 mm)
Nom. Diameter	1.579 in (40.11 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.132 Ohm/1000ft	145 Amps per Conductor at 30oC
Ground Wire	0.419 Ohm/1000ft (1.37 Ohm/km)

Voltage

Voltage Rating	1000 V (TECK 90)

Mechanical Characteristics

Max. Pull Tension	3718.3 lbs (1686.6 kg)
Bulk Cable Weight	1575 lbs/1000ft

Temperature

Operating	-40°C To +90°C
Installation	-25°C To +90°C

Bend Radius

Stationary Min.	12.6 in (320 mm)
Installation Min.	12.6 in (320 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial
CEC / C(UL) Compliance	TECK 90, HL.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
