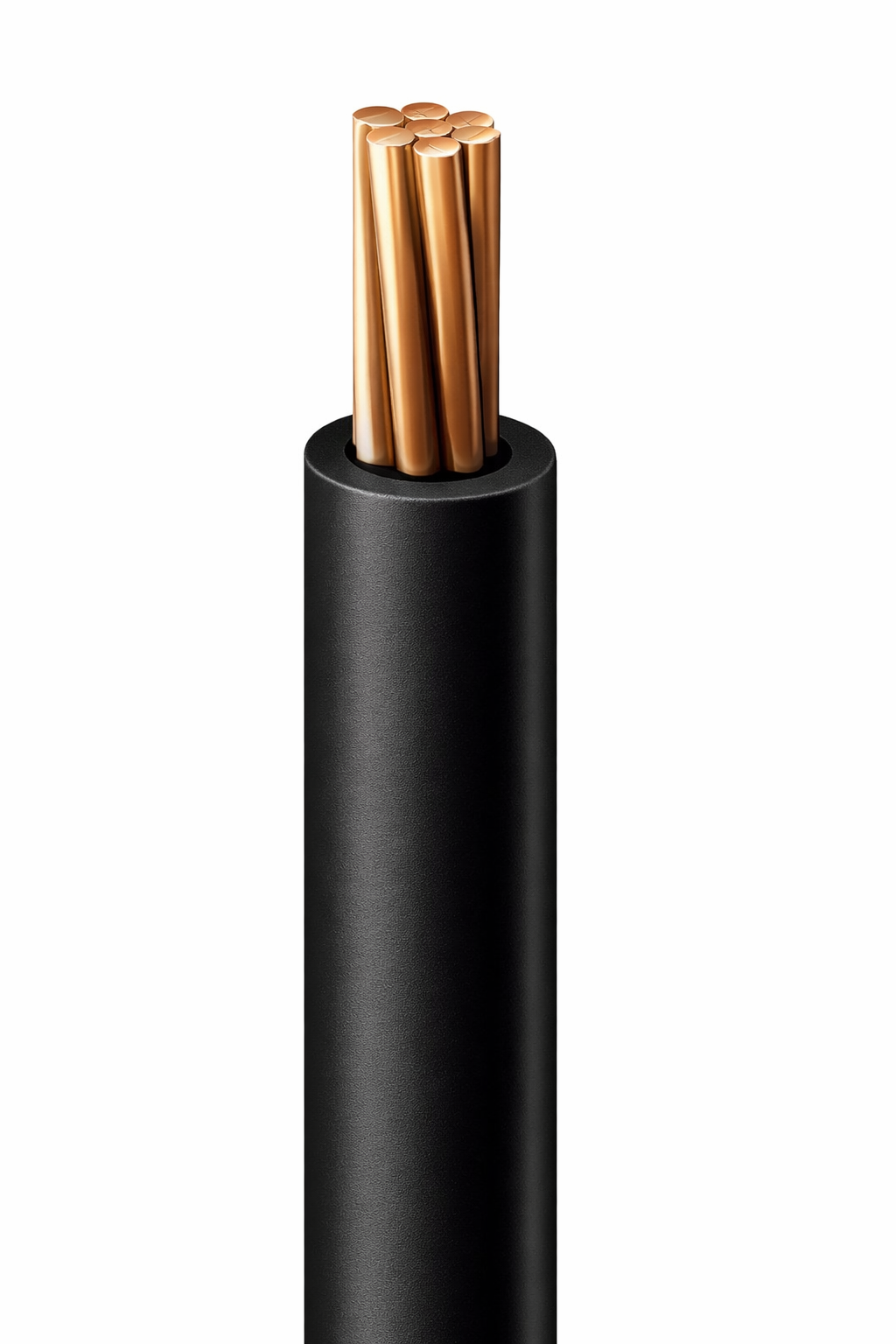

RW90 1000V, 4 Str BC, XLPE Ins, 90C Dry/Wet CSA HL SUN RES
RW90 1000V, 4 AWG Bare Copper, XLPE Insulation, 90C Dry/Wet CSA HL SUN RES
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | CEC Power and Control Applications |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.347 in (8.81 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Stranding | 7x12 |
| Material | BC - Bare Copper |
Insulation
| Material | XLP, XLPO, XLPE (Thermoset) |
|---|---|
| Nom. Thickness | 0.046 in (1.2 mm) |
| Nom. Insulation Diameter | 0.347 in (8.81 mm) |
| Color Code | black |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 0.26 ohms /1000ft |
| Max. Current | 95 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 1000 V RMS |
|---|---|
| Voltage Rating | 1000 V (1000 V) |
Mechanical Characteristics
| Bulk Cable Weight | 492 lbs/1000ft (732 kg/km) |
|---|
Temperature
| Operating | -40°C To +90°C |
|---|---|
| Installation | -25°C To +90 |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial |
|---|---|
| CEC / C(UL) Compliance | RW90, C22.2 #230, #38. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.288 Revision Date: 09-02-2026 |
|---|
Resources
Related control cable
19105
Portable Cordage, 3 C #10 Str BC, EPDM Ins, Rubber Jkt, UL Type S
3 · 10 AWG · BC - Bare Copper · EPDM - Ethylene Propylene Diene Monomer
1 item
19106
Portable Cordage, 3 C #12 Str BC, EPDM Ins, Rubber Jkt, UL Type S
3 · 12 AWG · BC - Bare Copper · EPDM - Ethylene Propylene Diene Monomer
1 item
19107
Portable Cordage, 3 C #14 Str BC, EPDM Ins, Rubber Jkt, UL Type S
3 · 14 AWG · BC - Bare Copper · EPDM - Ethylene Propylene Diene Monomer
1 item

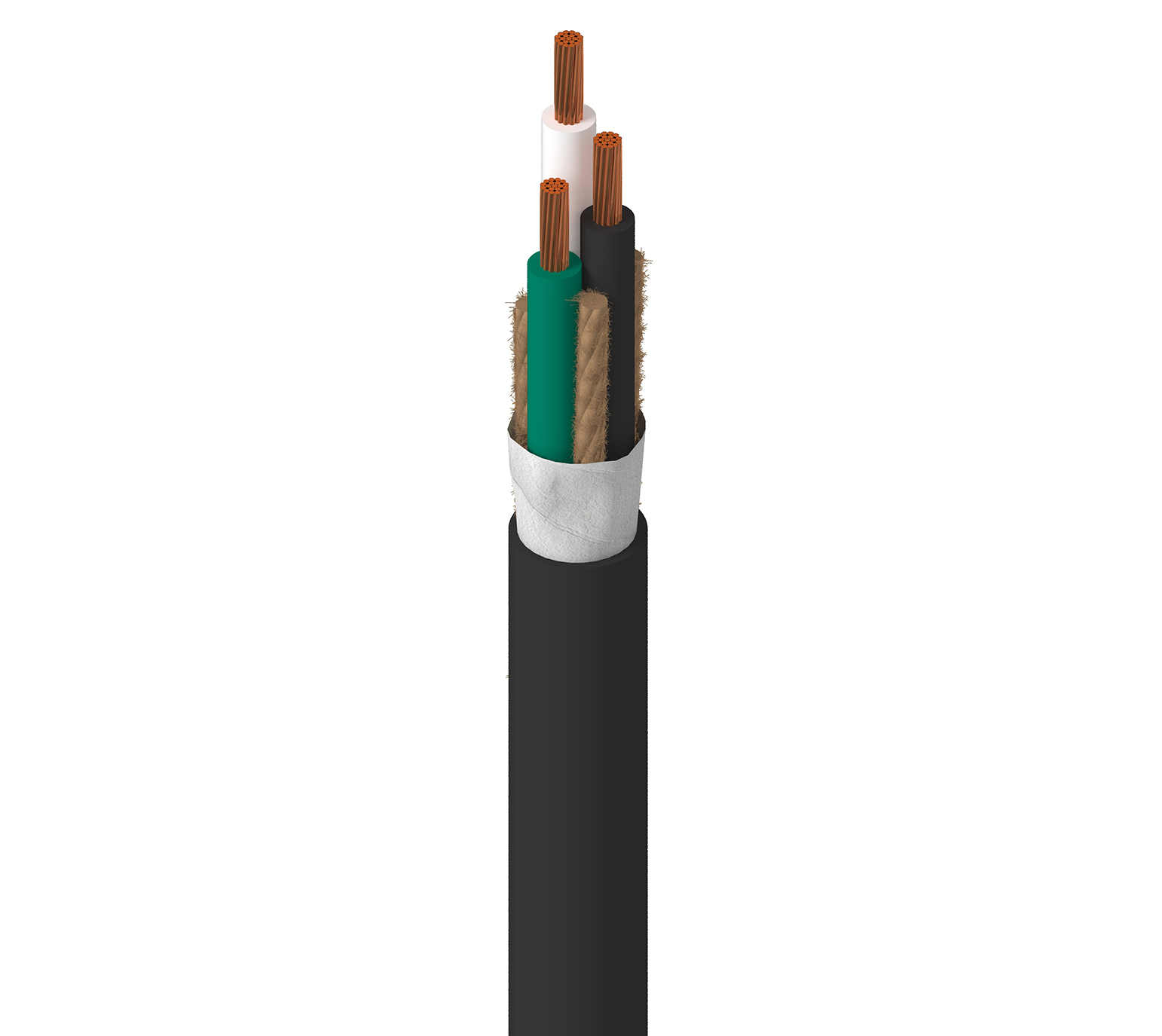

19108
