Product Number: C5591

Teck90 1000V, 3+G C 6 Str BC, XLPE Ins, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA SUN RES -40C

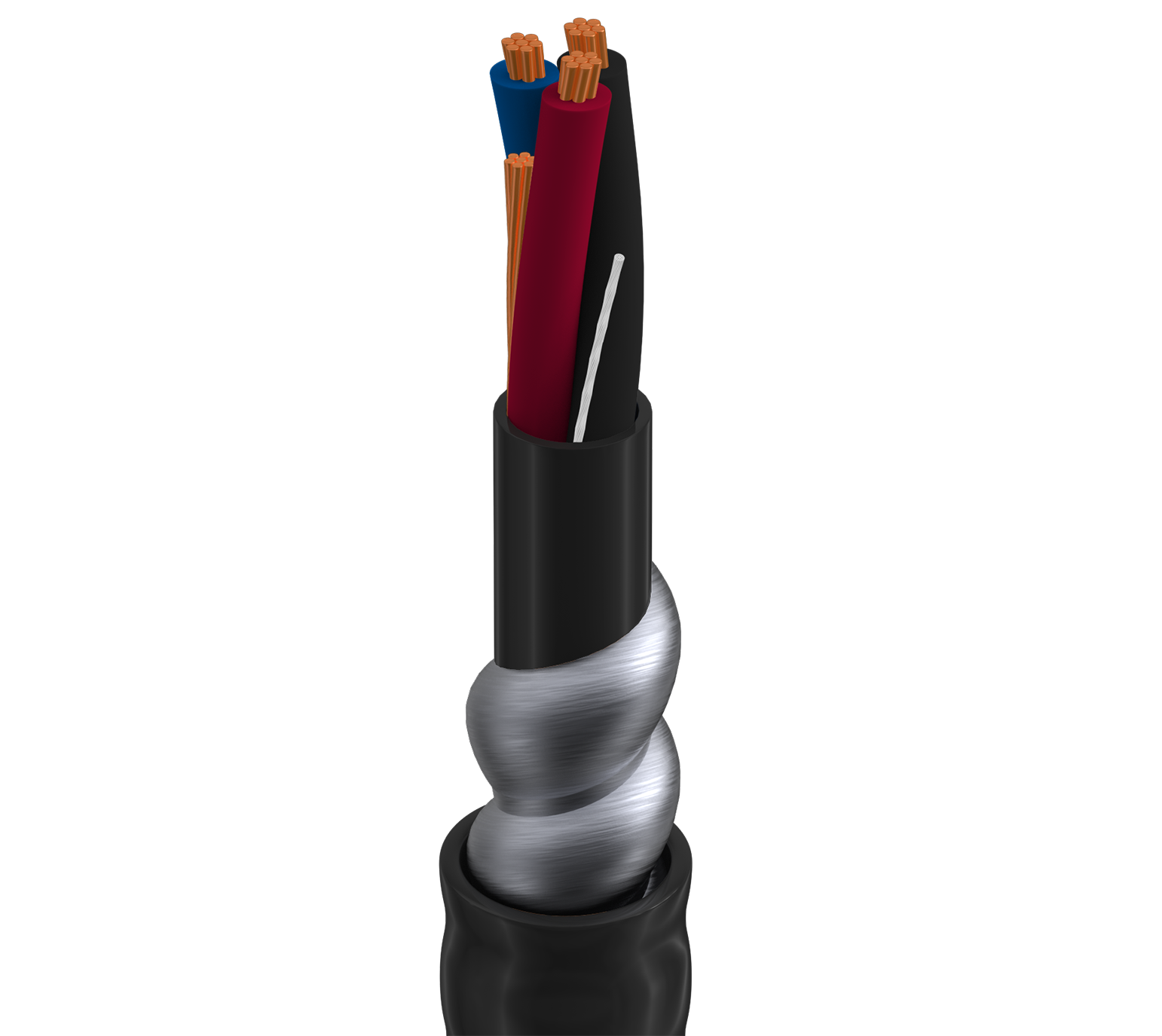

Teck90 1000V, 3+G Conductor 6 AWG (7x14H) Bare Copper, XLPE insulation, 8 AWG (7x16H) bare copper ground wire, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA SUN RES -40C

Availability: Global
Status: Active
Orderable items: 6

Ships from and sold by A5 IT.

Part numbers

C5591 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	Order
C5591 0105000	Reel	Order online
C5591 0101640	Reel	Order online
C5591 0102952	Reel	Order online
C5591 0103937	Reel	Order online
C5591 0104920	Reel	Order online
C5591 0107380	Reel	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.205 Revision Date: 02-20-2026

Product Overview

Suitable Applications	Power and Control Applications up to 600V

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	6	7x14	BC - Bare Copper
Ground	1	8	7x16	BC - Bare Copper

Insulation

Material	XLP, XLPO, XLPE (Thermoset)
Nom. Thickness	0.061 in (1.5 mm)
Nom. Insulation Diameter	0.300 in (7.62 mm)
Color Code	Black, Red, Blue

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.773 in (19.6 mm)

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Diameter Over Armor	1.033 in

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	1.129 in (28.68 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.41 Ohm/1000ft	75 Amps per Conductor at 30oC
Ground	0.654 Ohm/1000ft (2.15 Ohm/km)

Voltage

Voltage Rating	1000 V (TECK 90)

Mechanical Characteristics

Max. Pull Tension	1462.1 lbs (663.20 kg)
Bulk Cable Weight	687 lbs/1000ft

Temperature

UL Temperature	90°C
Operating	-40°C To +90°C
Installation	-25°C To +90°C

Bend Radius

Stationary Min.	9.032 in (229.4 mm)
Installation Min.	9.032 in (229.4 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance	TECK 90, HL.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
