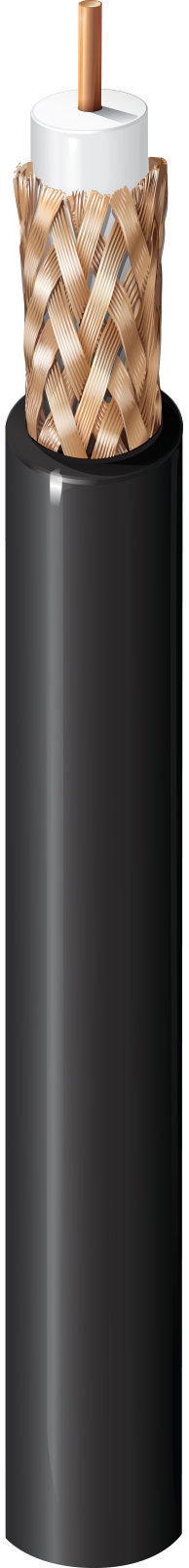

Surveillance CCTV, RG-6 #18 BC, 95% BC Braid, CMP
Surveillance & CCTV Cable, RG6, Plenum-CMP-FHC 25/50, 18 AWG bare copper foam FEP core, 95% bare copper braid, FEP jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
7985LC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 7985LC 010500 | Black | Reel | 500 ft | 612825192466 | Order online |
| 7985LC 0101000 | Black | Reel | 1,000 ft | 612825192459 | Order online |
Specifications
Product Overview
| Suitable Applications | Surveillance, CCTV Camera |
|---|
Physical Characteristics (Overall)
| Conductor Count | 1 |
|---|
Conductor
| AWG | 18 |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| Nominal Diameter | 0.04 in |
| No. of Coax | 1 |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene (Foam) |
|---|---|
| Material Trade Name | Teflon® |
| Nominal Diameter | 0.17 in |
Outer Shield
| Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage [%] | 95% |
Outer Jacket
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Material Trade Name | Teflon® |
| Nominal Diameter | 0.228 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 6.4 Ohm/1000ft |
|---|---|
| Nominal Outer Shield DCR | 2.2 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield | 16.3 pF/ft |
|---|
Inductance
| Nominal Inductance | 0.097 μH/ft |
|---|
Impedance
| Nominal Characteristic Impedance | 75 Ohm |
|---|
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.24 dB/100ft |
| 3 MHz | 0.45 dB/100ft |
| 5 MHz | 0.55 dB/100ft |
| 8 MHz | 0.7 dB/100ft |
| 10 MHz | 0.85 dB/100ft |
| 50 MHz | 1.5 dB/100ft |
| 100 MHz | 2.1 dB/100ft |
| 200 MHz | 3.1 dB/100ft |
| 400 MHz | 4.7 dB/100ft |
| 700 MHz | 6.8 dB/100ft |
| 900 MHz | 8 dB/100ft |
| 1000 MHz | 8.5 dB/100ft |
Delay
| Max. Delay Skew | 83 ns/100m |
|---|---|
| Nominal Delay | 1.24 ns/ft |
| Nominal Velocity of Propagation (VP) [%] | 83% |
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| UL Temperature Rating | 200°C |
|---|---|
| Operating Temperature Range | -40°C To +200°C |
Mechanical Characteristics
| Bulk Cable Weight | 41 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 84 lbs |
| Min Bend Radius (Overall Cable) | 1.04 |
| Minimum Minor Axis Bend Radius | 2.25 in |
Standards
| NEC Articles | Article 800 |
|---|---|
| NEC/(UL) Compliance | Limited Combustible FHC 25/50 CMP |
| CEC/C(UL) Compliance | CMP |
| RG Type | 6 |
| Series Type | 6 |
Applicable Environmental and Other Programs
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
|---|---|
| EU CE Mark | Yes |
| MII Order #39 (China RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL723 (NFPA 255) |
|---|---|
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Related Part Numbers
| Footnote | C - CRATE REEL PUT-UP. |
|---|
Product Notes
| Notes | Teflon« is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc. |
|---|
History
| Update and Revision | Revision Number: 0.376 Revision Date: 02-20-2026 |
|---|
