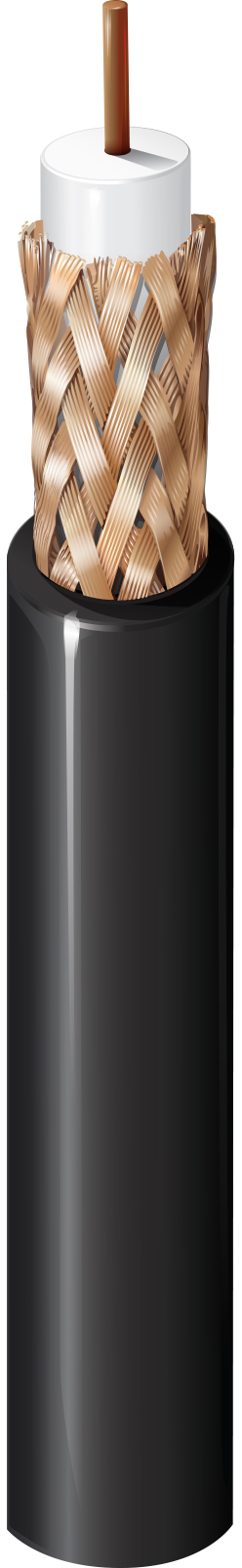

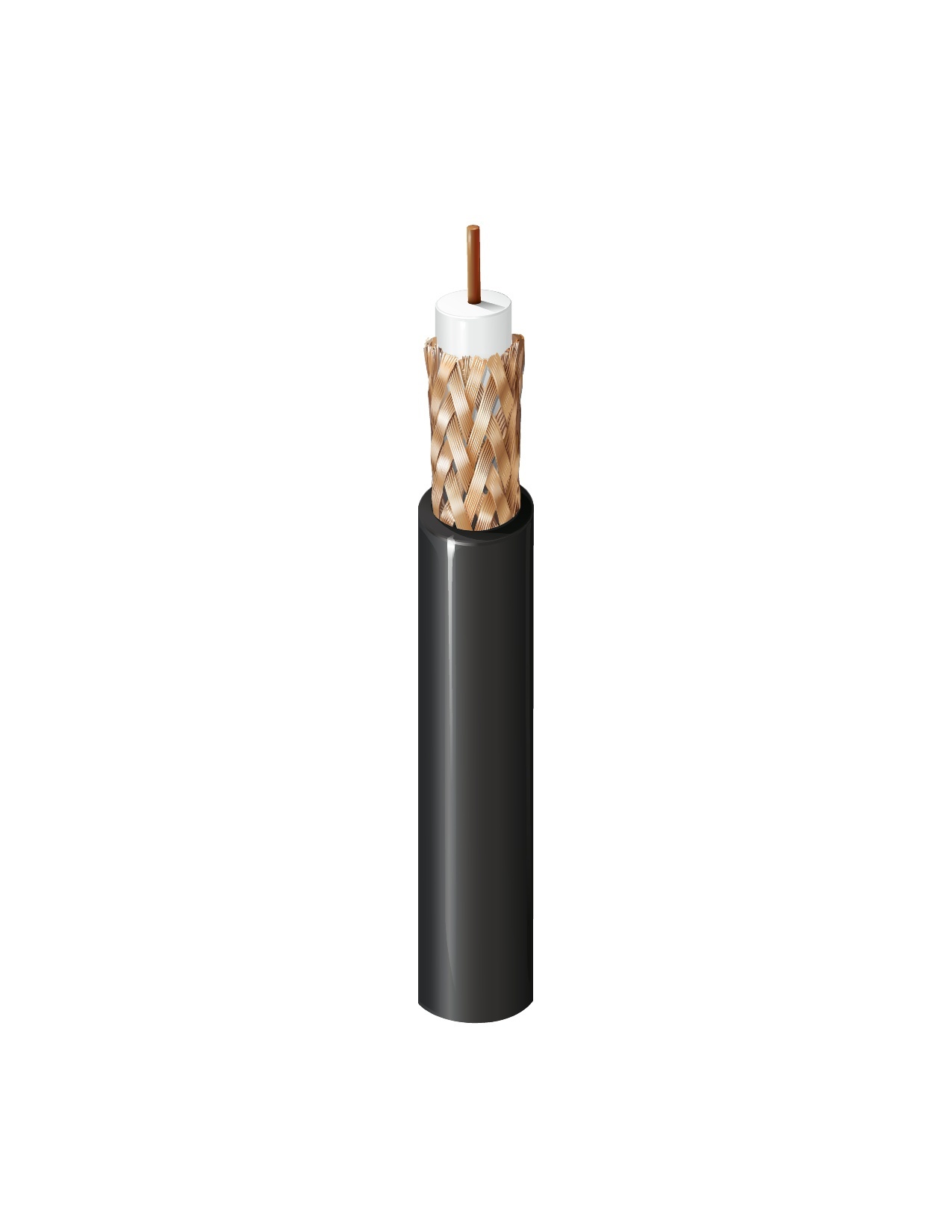

Surveillance CCTV, RG-59 #22 BC, 93% BC Braid, LSZH Jkt
Surveillance & CCTV Cable, RG59, Rated-CM, 22 AWG stranded bare copper, foam polyolefin core, 93% bare copper braid, LSZH jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
451945 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 451945.00500 | Gray | Reel | 500 m | 8719605007308 | Order online |
Specifications
Product Overview
| Suitable Applications | ANALOG VIDEO/CCTV; The cable is suitable for indoor use |
|---|
Construction Details
| RG Type | Mini 59 |
|---|
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 22 AWG |
| Stranding | 7x30 |
| Nom. Diameter | 0.75 mm |
| Material | BC - Bare Copper |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 3.56 mm (0.140 in) |
Outer Shield
| Outer Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 93% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 5.9 mm |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.98 dB/100m |
| 10 MHz | 2.95 dB/100m |
| 50 MHz | 6.88 dB/100m |
| 100 MHz | 9.83 dB/100m |
| 200 MHz | 14.7 dB/100m |
| 400 MHz | 21.6 dB/100m |
| 700 MHz | 29.1 dB/100m |
| 900 MHz | 33.1 dB/100m |
| 1000 MHz | 35.7 dB/100m |
Electricals
| Nom. Conductor DCR | 49.2 Ohm/km |
|---|---|
| Nom. Outer Shield DCR | 8.5 Ohm/km (2.6 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 56.7 pF/m (17.3 pF/ft) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 78% |
Mechanical Characteristics
| Bulk Cable Weight | 43 kg/km |
|---|
Temperature
| Operating | -30°C To +70°C |
|---|---|
| Storage | -30°C To +70°C |
Bend Radius
| Stationary Min. | 29.5 mm (1.16 in) |
|---|---|
| Installation Min. | 59 mm |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|
History
| Update and Revision | Revision Number: 0.242 Revision Date: 02-20-2026 |
|---|
