Product Number: 613948

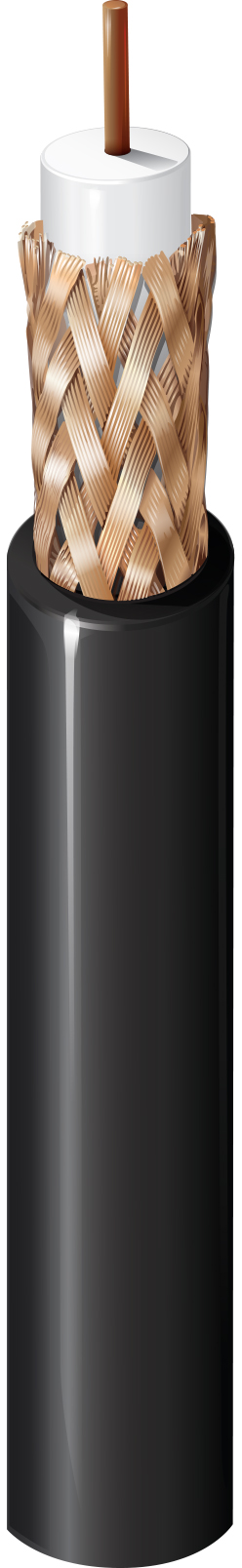

Surveillance CCTV, RG-11 #14 BC, 95% BC Braid, CMP

Surveillance & CCTV Cable, RG11, Plenum-CMP, 14 AWG solid bare copper, foam FEP core, 95% bare copper braid, PVDF

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

613948 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	Length	UPC	Order
613948 0091000	White	Reel	1,000 ft	612825173823	Order online

Specifications

Product Overview

Suitable Applications	Surveillance, CCTV Camera

Physical Characteristics (Overall)

Conductor Count	1
Weight	0.935 lbs

Conductor

AWG	14
Stranding	Solid
Material	BC - Bare Copper
Nominal Diameter	0.064 in
No. of Coax	1

Insulation

Material	FEP - Fluorinated Ethylene Propylene (Foam)
Nominal Diameter	0.274 in

Outer Shield

Type	Braid
Material	Bare Copper (BC)
Coverage [%]	95%

Outer Jacket

Material	PVDF - Polyvinylidene Fluoride
Nominal Diameter	0.348 in

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR	2.6 Ohm/1000ft
Nominal Conductor DCR Conductor Resistance	2.6 Ohm/1000ft
Nominal Outer Shield DCR	1.2 Ohm/1000ft
Outer Conductor DCR	1.2 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Shield	16.3 pF/ft

Inductance

Nominal Inductance	0.106 μH/ft

Impedance

Nominal Characteristic Impedance	75 Ohm

High Frequency (Nominal/Typical)

Frequency [MHz]	Nom. Insertion Loss
1 MHz	0.17 dB/100ft
10 MHz	0.4 dB/100ft
50 MHz	0.95 dB/100ft
100 MHz	1.4 dB/100ft
200 MHz	2.1 dB/100ft
400 MHz	3.4 dB/100ft
700 MHz	5 dB/100ft
900 MHz	6 dB/100ft
1000 MHz	6.5 dB/100ft

Delay

Max. Delay Skew	84 ns/100m
Nominal Delay	1.22 ns/ft
Nominal Velocity of Propagation (VP) [%]	83%

Unbalanced Crosstalk

Typical Unbalanced NEXT %	Typical Unbalanced FEXT %
	0.9 MHz
0.9 MHz

Voltage

UL Voltage Rating	300 V RMS

Mated Connection

Frequency (MHz)	1

Temperature Range

UL Temperature Rating	125°C
Operating Temperature Range	-20°C To +125°C

Mechanical Characteristics

Bulk Cable Weight	81 lbs/1000ft
Maximum Recommended Pulling Tension	138 lbs
Minimum Bend Radius During Installation	0.9 in
Minimum Minor Axis Bend Radius	3.5 in

Dimensions

Width	1
Height	0.97
Depth	1

Standards

NEC/(UL) Compliance	CMP
CEC/C(UL) Compliance	CMP
RG Type	11
Series Type	11

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/11/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive Compliance	Yes
MII Order #39 (China RoHS)	Yes
