Product Number: AFZLCLCH4XT2100LDN

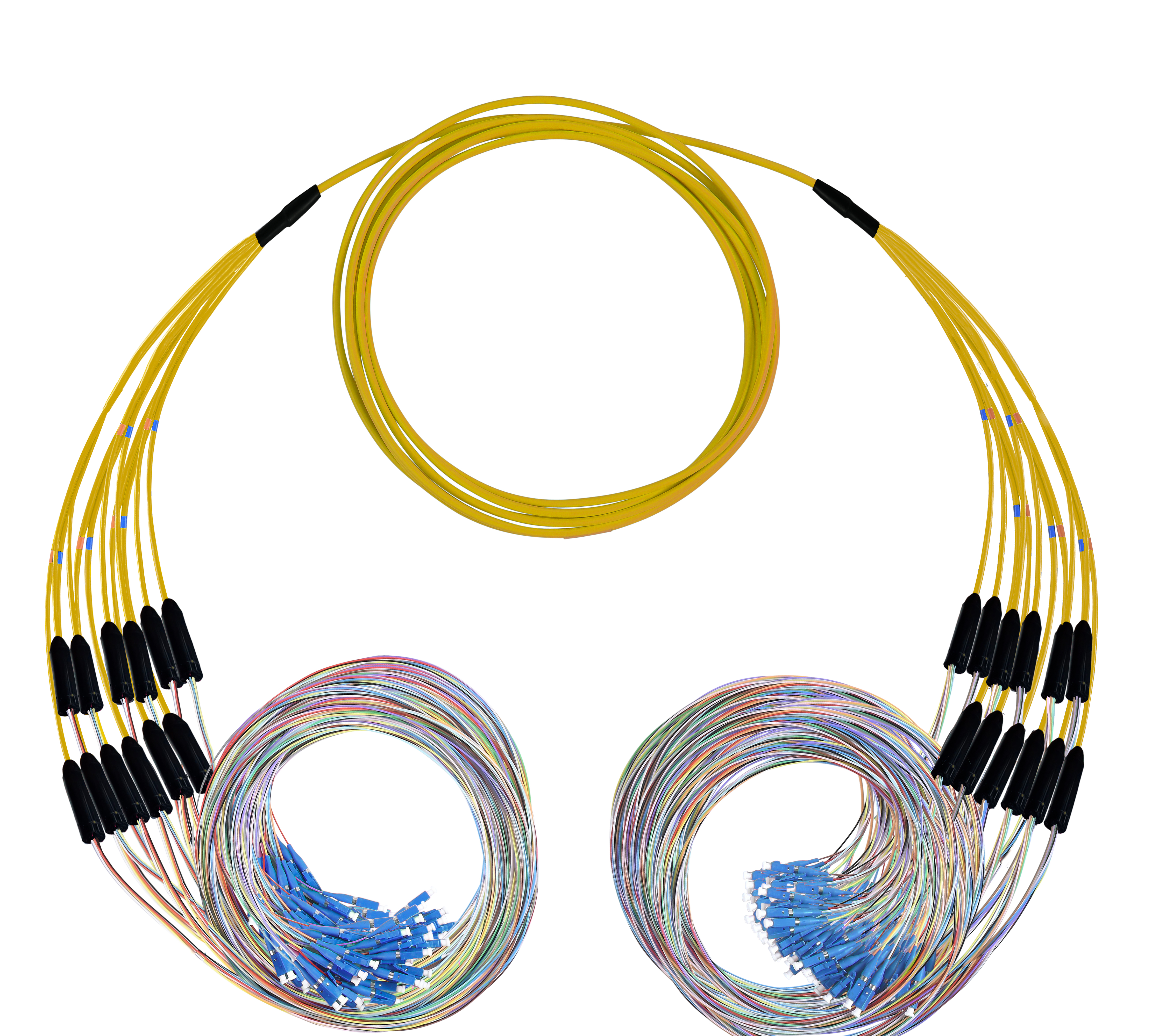

FiberExpress Multi-Fiber Assemblies G.657 A1/A2, LC(UPC)_SX LC(UPC)_SX 144F LSZH Jacket A/B Cross Polarity 0.5m X In-Line 100 m

FiberExpress Multi-Fiber Assemblies, G.657 A1/A2, LC(UPC) Simplex-LC(UPC) Simplex, 144 Fibers, Yellow LSZH Jacket Without Pulling Eye, A/B Cross Polarity, 2.0 mm Fan-out construction, 0.5m x In-line, 100 m Trunk Cable

Availability: Asia Pacific
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Data Centers, Main Equipment Rooms

Fiber Specifications

Fiber Type	OS2, G.657.A2
Fiber Core Diameter	9/125 μm
Fiber Count	144

Physical Specifications

Connectors

Description	Type
Connector A (Inside End)	LC Simplex
Connector B (Outside End)	LC Simplex

Fan-out (Legs)

Description	Length (m)	Geometry
Connector A (Inside End)	0.5 m	In-Line
Connector B (Outside End)	0.5 m	In-Line

Assembly Cable

Cable Nominal OD	17.5 mm
Jacket Color	Yellow

Measurement

Overall Assembly Length	100 m
Packaging	Individually packaged on a reel.

Optical Characteristics

Fiber Connector Performance

Connector Type	Max. Insertion Loss	Min. Return Loss
LC Simplex	0.25 dB	55 dB
LC Simplex	0.25 dB	55 dB

Mechanical Characteristics

Minimum Bend Radius During Installation	350 mm
Minimum Bend Radius During Operation	175 mm
Crush Resistance	1000 N/100mm

Temperature Range

Operating Temperature Range	-10°C to +60°C
Storage Temperature Range	-10°C to +60°C

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	IEC 60332-1-2
TIA/EIA Compliance	TIA/EIA 568.3
ISO/IEC Compliance	IEC 61754-20 IEC 60793-2-50 IEC 11801
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)

Product Notes

Related Parts	FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and Cassettes
Notes	Crush resistance values are for Installation
