Multi-Fiber Trunks
Highly configurable Multi-Fiber Trunks are engineered for maximum performance and crafted to ensure superior quality. Belden's 1.6 mm Multi-Fiber Trunks are designed to manage cable density and allow for airflow. Available in many length, color, fiber and connector configurations, they’re quick and easy to pull and install. They also offer simple polarity management with easy-to-use LC Duplex clips.
Features & Benefits

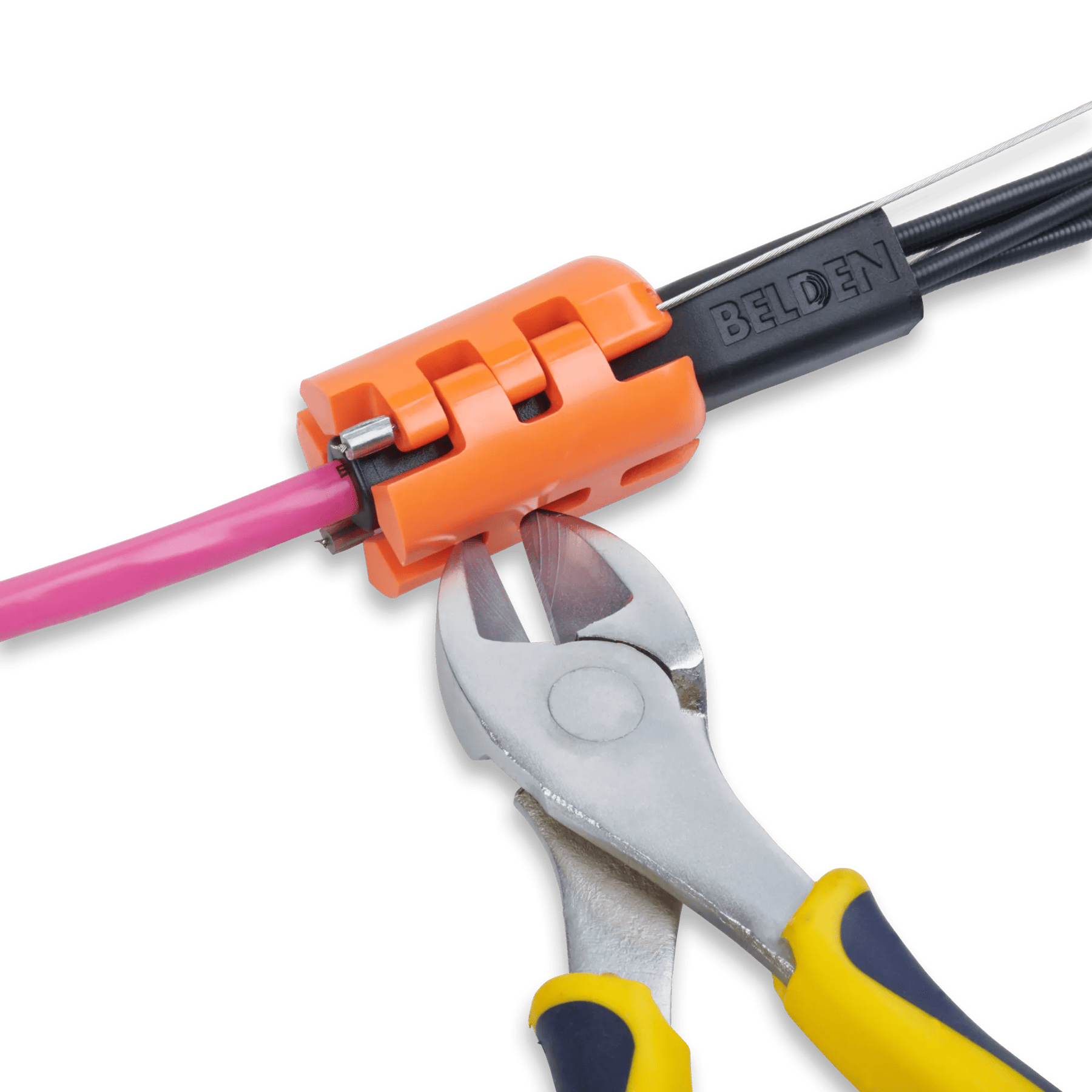

- Easier Installation: 3-flange reel and default pulling eye
- Faster Identification of Fiber Type: Erika Violet for OM4 cable, connectors and adapters
- Maintain Cleanliness: Keep contamination under control with Data Center ready packaging
- Quick Installation: Pre-terminated solutions are designed to save you lots of time
106 product families
A312LD7LD7P010M
OM3 12F LC_DX LC_DX 10M OFNP JKT1.6x1.0 JKT1.6x1.0
A312LD7LD7PxxxM
OM3 12F LC_DX LC_DX xxxM OFNP JKT1.6x1.0 JKT1.6x1.0

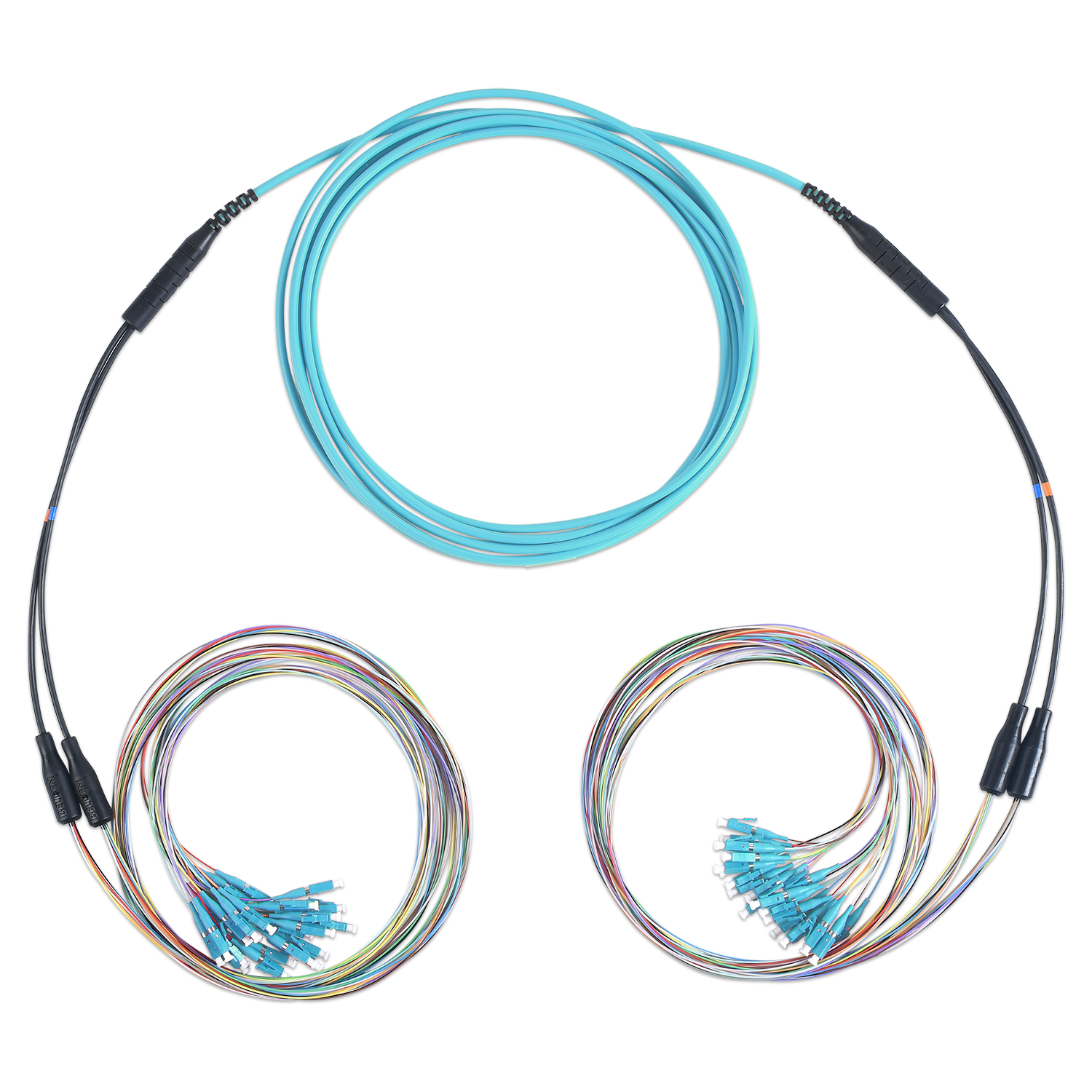

A324LCBLCBPxxxM
OM3 24F LC_SX LC_SX xxxM OFNP 900x1.0xIL 900x1.0xIL
A324LD7LD7P010M
OM3 24F LC_DX LC_DX 10M OFNP JKT1.6x1.0 JKT1.6x1.0
A324LD7LD7PxxxM
OM3 24F LC_DX LC_DX xxxM OFNP JKT1.6x1.0 JKT1.6x1.0
A324LDFLDFP010M
OM3 24F LC_DX LC_DX 10M OFNP JKTx1.0xIL JKTx1.0xIL
A324LDFLDFPxxxM
OM3 24F LC_DX LC_DX xxxM OFNP JKTx1.0xIL JKTx1.0xIL
A348LD7LD7P010M
OM3 48F LC_DX LC_DX 10M OFNP JKT1.6x1.0 JKT1.6x1.0
A348LD7LD7PxxxM
OM3 48F LC_DX LC_DX xxxM OFNP JKT1.6x1.0 JKT1.6x1.0
A412LD7LD7P010M
OM4 12F LC_DX LC_DX 10M OFNP JKT1.6x1.0 JKT1.6x1.0
A412LD7LD7PxxxM
OM4 12F LC_DX LC_DX xxxM OFNP JKT1.6x1.0 JKT1.6x1.0

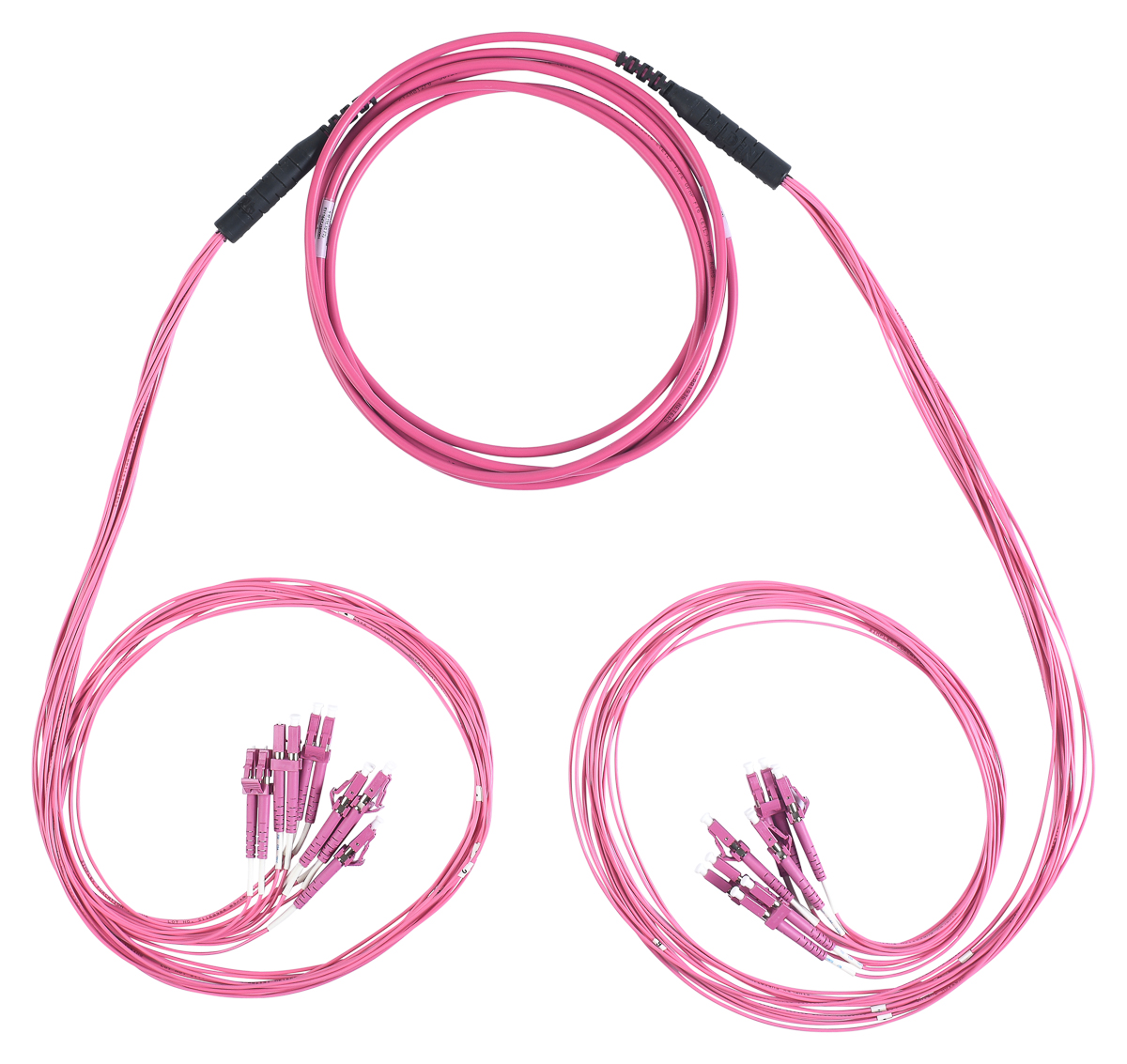

A412LDFLDFP010M
OM4 12F LC_DX LC_DX 10M OFNP JKTx1.0xIL JKTx1.0xIL
A412LDFLDFPxxxM
OM4 12F LC_DX LC_DX xxxM OFNP JKTx1.0xIL JKTx1.0xIL
A424LCBLCBP010M
OM4 24F LC_SX LC_SX 10M OFNP 900x1.0xIL 900x1.0xIL
A424LCBLCBP030M
OM4 24F LC_SX LC_SX 30M OFNP 900x1.0xIL 900x1.0xIL
A424LCBLCBPxxxM
OM4 24F LC_SX LC_SX xxxM OFNP 900x1.0xIL 900x1.0xIL
A424LD7LD7P07M5
OM4 24F LC_DX LC_DX 7.5M OFNP JKT1.6x1.0 JKT1.6x1.0
A424LD7LD7P008M
OM4 24F LC_DX LC_DX 8M OFNP JKT1.6x1.0 JKT1.6x1.0
A424LD7LD7P08M5
OM4 24F LC_DX LC_DX 8.5M OFNP JKT1.6x1.0 JKT1.6x1.0
A424LD7LD7P09M5
OM4 24F LC_DX LC_DX 9.5M OFNP JKT1.6x1.0 JKT1.6x1.0
A424LD7LD7P010M
OM4 24F LC_DX LC_DX 10M OFNP JKT1.6x1.0 JKT1.6x1.0
A424LD7LD7P10M5
OM4 24F LC_DX LC_DX 10.5M OFNP JKT1.6x1.0 JKT1.6x1.0
A424LD7LD7PxxxM
OM4 24F LC_DX LC_DX xxxM OFNP JKT1.6x1.0 JKT1.6x1.0

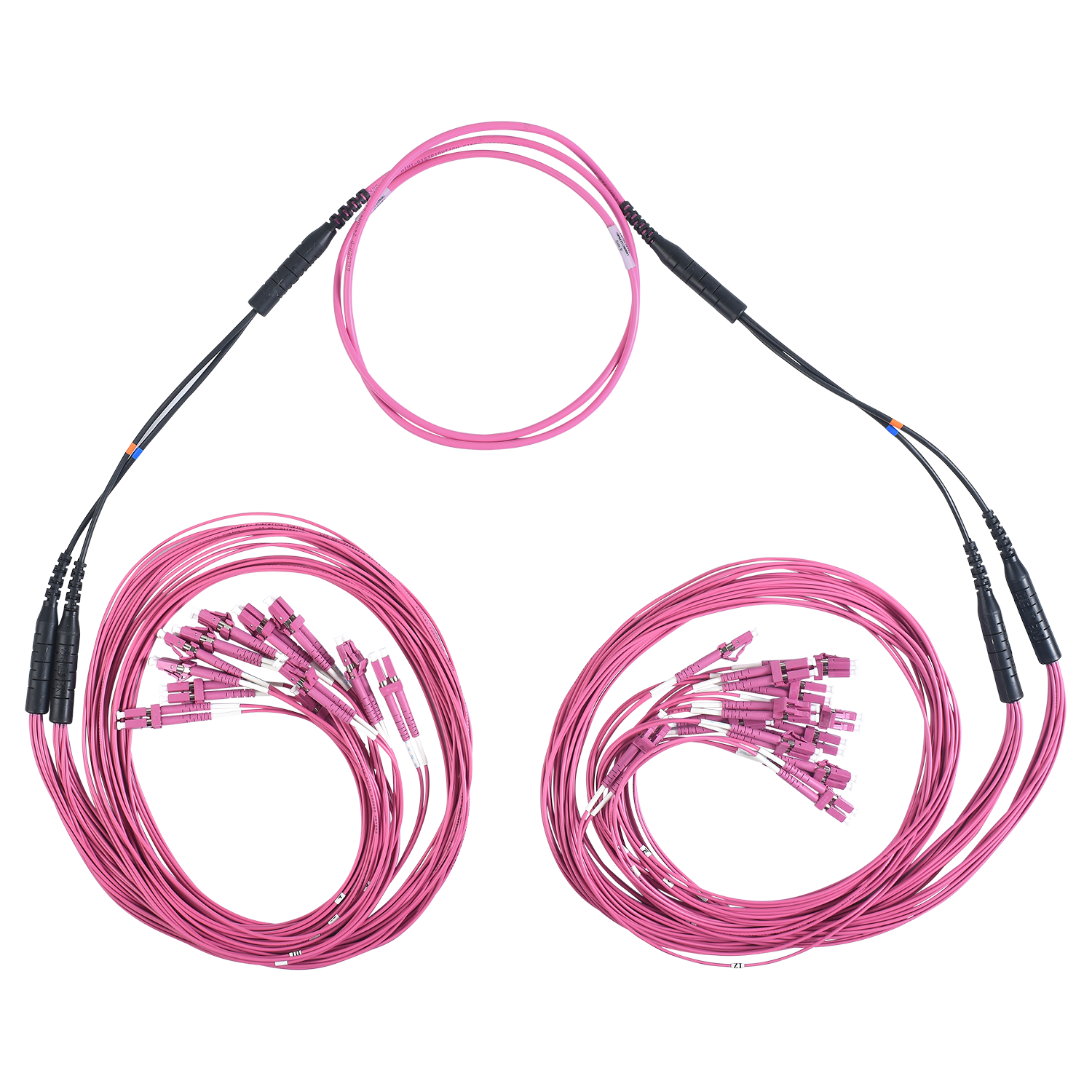

A424LDELDEP18M5
OM4 24F LC_DX LC_DX 18.5M, OFNP JKTx0.5xIL JKTx0.5xIL
A424LDFLDFP010M
OM4 24F LC_DX LC_DX 10M OFNP JKTx1.0xIL JKTx1.0xIL
A424LDFLDFPxxxM
OM4 24F LC_DX LC_DX xxxM OFNP JKTx1.0xIL JKTx1.0xIL
A448LD7LD7P010M
OM4 48F LC_DX LC_DX 10M OFNP JKT1.6x1.0 JKT1.6x1.0
A448LD7LD7PxxxM
OM4 48F LC_DX LC_DX xxxM OFNP JKT1.6x1.0 JKT1.6x1.0
A448LDFLDFP010M
OM4 48F LC_DX LC_DX 10M OFNP JKTx1.0xIL JKTx1.0xIL
A448LDFLDFPxxxM
OM4 48F LC_DX LC_DX xxxM, OFNP JKTx1.0xIL JKTx1.0xIL
A512LD7LD7P005M
OM5 12F LC_DX LC_DX 5M OFNP JKT1.6x1.0 JKT1.6x1.0
A512LD7LD7P010M
OM5 12F LC_DX LC_DX 10M OFNP JKT1.6x1.0 JKT1.6x1.0
A512LD7LD7PxxxM
OM5 12F LC_DX LC_DX xxxM OFNP JKT1.6x1.0 JKT1.6x1.0
A512LDFLDFP005M
OM5 12F LC_DX LC_DX 5M OFNP JKTx1.0xIL JKTx1.0xIL
A512LDFLDFP010M
OM5 12F LC_DX LC_DX 10M OFNP JKTx1.0xIL JKTx1.0xIL
A512LDFLDFPxxxM
OM5 12F LC_DX LC_DX xxxM OFNP JKTx1.0xIL JKTx1.0xIL
A524LCBLCBP005M
OM5 24F LC_SX LC_SX 5M OFNP 900x1.0xIL 900x1.0xIL
A524LCBLCBP010M
OM5 24F LC_SX LC_SX 10M OFNP 900x1.0xIL 900x1.0xIL
A524LCBLCBPxxxM
OM5 24F LC_SX LC_SX xxxM OFNP 900x1.0xIL 900x1.0xIL
A524LD7LD7P005M
OM5 24F LC_DX LC_DX 5M OFNP JKT1.6x1.0 JKT1.6x1.0
A524LD7LD7P010M
OM5 24F LC_DX LC_DX 10M OFNP JKT1.6x1.0 JKT1.6x1.0
A524LD7LD7PxxxM
OM5 24F LC_DX LC_DX xxxM OFNP JKT1.6x1.0 JKT1.6x1.0
A524LDFLDFP005M
OM5 24F LC_DX LC_DX 5M OFNP JKTx1.0xIL JKTx1.0xIL
A524LDFLDFP010M
OM5 24F LC_DX LC_DX 10M OFNP JKTx1.0xIL JKTx1.0xIL
A524LDFLDFPxxxM
OM5 24F LC_DX LC_DX xxxM OFNP JKTx1.0xIL JKTx1.0xIL
A548LD7LD7P005M
OM5 48F LC_DX LC_DX 5M OFNP JKT1.6x1.0 JKT1.6x1.0
A548LD7LD7P010M
OM5 48F LC_DX LC_DX 10M OFNP JKT1.6x1.0 JKT1.6x1.0
A548LD7LD7PxxxM
OM5 48F LC_DX LC_DX xxxM OFNP JKT1.6x1.0 JKT1.6x1.0
