Product Number: A412LD7LD7P010M

OM4 12F LC_DX LC_DX 10M OFNP JKT1.6x1.0 JKT1.6x1.0

Name: Belden A412LD7LD7P010M
Brand: Belden
SKU: A412LD7LD7P010M

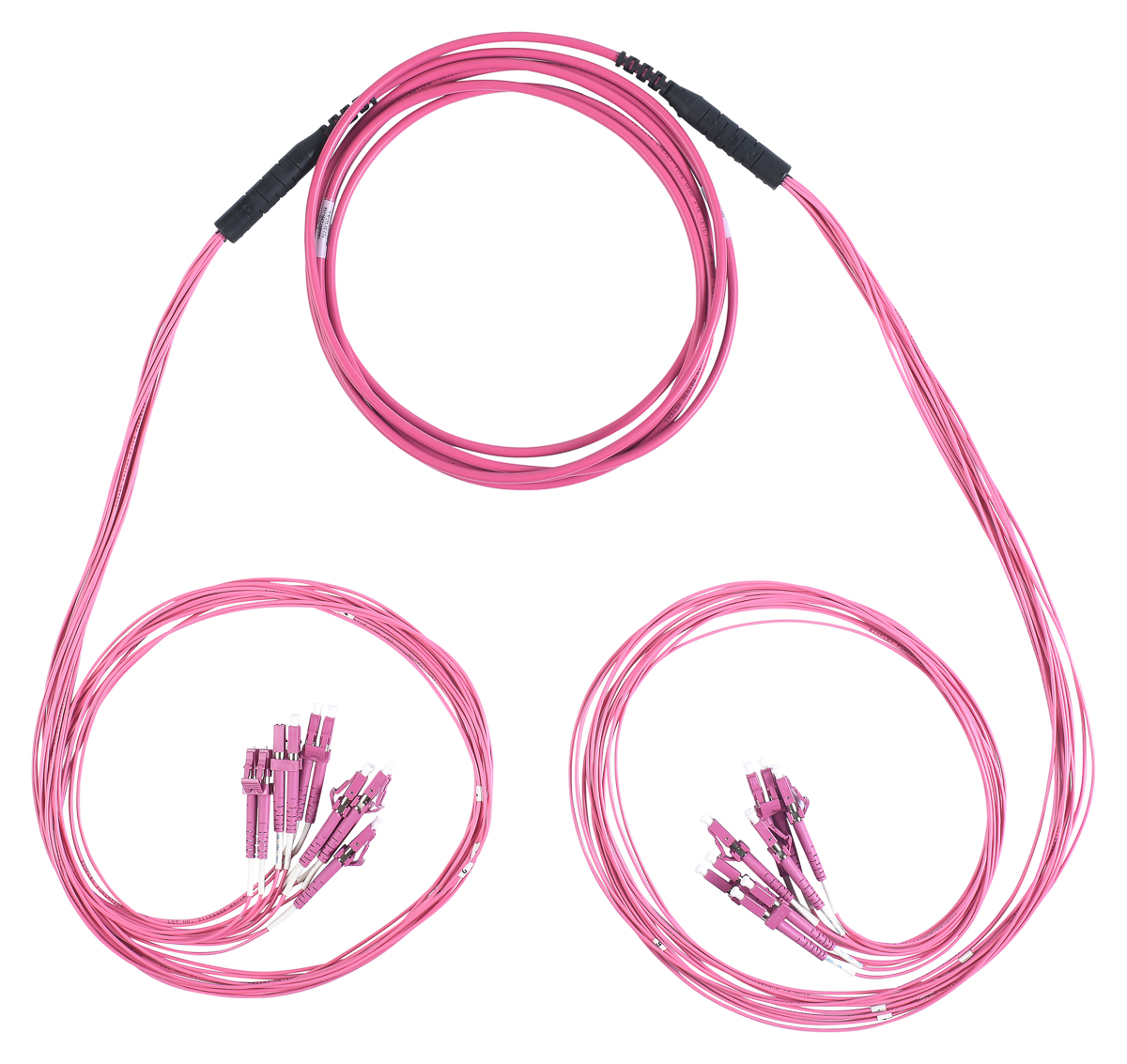

FX MULTI-FIBER TRUNK, OM4, 12 FIBERS, LC DUPLEX (JACKETED 1.6MM x 1.0M) - LC DUPLEX (JACKETED 1.6MM x 1.0M), OFNP, 10 M, ERIKA VIOLET JACKET

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Data Center, LAN, Equipment Room, Telecommunication room, Workstation Area

Description	Type	Housing Material	Housing Color	Ferrule	Boot Material	Boot Color
Connector A (Inside End)	LC Duplex	Plastic	Erika Violet	Zirconia Ceramic	Rubber	Erika Violet
Connector B (Outside End)	LC Duplex	Plastic	Erika Violet	Zirconia Ceramic	Rubber	Erika Violet

Description	Transition	Length (m)	Diameter	Geometry
Connector A (Inside End)	LPM	1.0 m	1.6 mm	In-Line
Connector B (Outside End)	LPM	1.0 m	1.6 mm	In-Line

Cable Nominal OD	4.8 mm
Jacket Color	Erika Violet

Overall Assembly Length	10 m (32.8 ft)
Packaging	Individually packaged in a plastic spool

Armor Type and Material	No Armor

Polarity Identification	A-to-B / B-to-A

Description	Connector Type	Max. Insertion Loss	Min. Return Loss
Connector A (Inside End)	LC Duplex	0.15 dB	25 dB
Connector B (Outside End)	LC Duplex	0.15 dB	25 dB

Pulling Eye Type	FX Pulling Eye
Pulling Eye Location	Outside End
Pulling Eye Tension	100 lbs
Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD

Operating Temperature Range	-10°C to +60°C
Storage Temperature Range	-10°C to +60°C

Environmental Suitability	Indoor
Flammability / Reaction to Fire	OFNP
UL Rating	Plenum
TIA/EIA Compliance	TIA/EIA 568.3
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
MII Order #39 (China RoHS)	EUP 50
Other Standard Compliance(s)	ACMA
