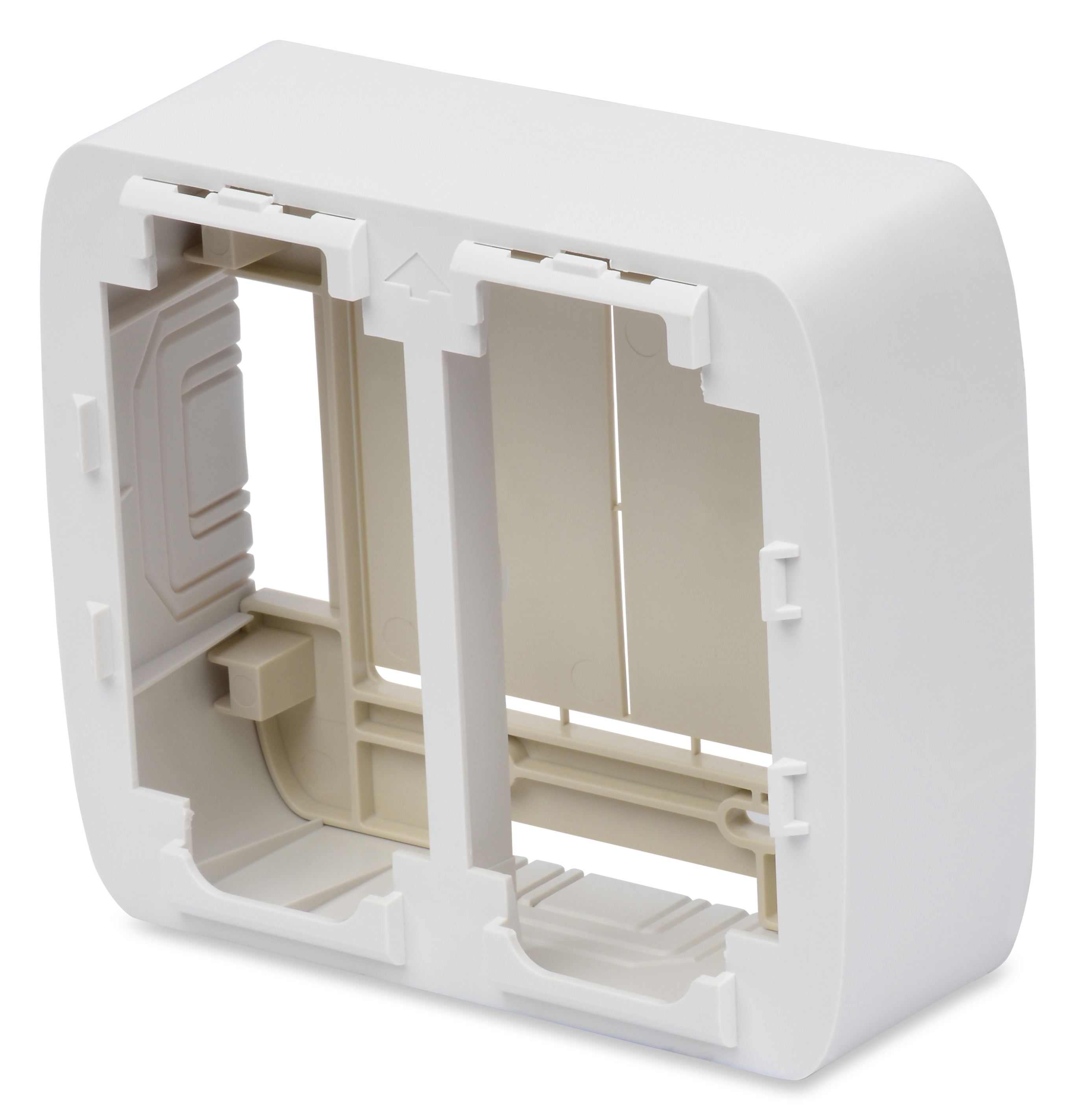

MediaFlex 2-Gang Adapter Box
MediaFlex Surface Adapter Box, Double Gang, Available in several colors.
- Availability
- Global
- Status
- Active
- Orderable items
- 5
Part numbers
MEDIAFLEX DG ADAPTER BOX is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Order |
|---|---|---|
| AX101874 | Almond | Order online |
| AX101876 | Black | Order online |
| AX101873 | Gray | Order online |
| AX101875 | White | Order online |
| AX102610 | White | Order online |
Specifications
Product Overview
| Suitable Applications | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400, 1200, Fiber and Coax. |
|---|
Physical Characteristics (Overall)
| Overall Height | 4.62 m |
|---|---|
| Overall Width | 5.3 |
| Overall Depth | 1.75 |
| Front Connection | Flush |
| Packaging | Individually shrink wrapped with plastic |
Connectors
Materials
| Description | Adapter Box |
|---|---|
| Material | Plastic - UL94V-0 |
Temperature Range
| Installation Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -40 to 70°C |
| Operating Temperature Range | -10 to 60°C |
Mechanical Characteristics
| Connector System Compatibility | Mediaflex |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | ACA, Bi-national Standard Listed |
|---|
Related Part Numbers
| Related Parts | Compatible with MediaFlex Faceplates |
|---|
Product Notes
| Included Parts | adhesive foam tape, installation guide |
|---|---|
| Notes | For proper installation refer to Installation Guide PX102064 included with the product or visit our web site at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.170 Revision Date: 02-20-2026 |
|---|
