Product Number: KEYCONNECT 6-PORT MEDIA BOX

6-Port KeyConnect Termination Media Box

Name: Belden KEYCONNECT 6-PORT MEDIA BOX
Brand: Belden
SKU: KEYCONNECT 6-PORT MEDIA BOX

KeyConnect 6 Port Media Box is available in several colors.

Ships from and sold by A5 IT.

Part numbers

KEYCONNECT 6-PORT MEDIA BOX is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Port Count	Order
AX106512-BK	Black	6 Port	Order online
AX105816	Brown	6 Port	Order online
AX106512-EW	Electric White	6 Port	Order online

Overall Height	1.06 in
Overall Width	3.35 in
Overall Depth	4.84 in
Front Connection	Flush
Packaging	Individually packaged in a box.
Weight	0.2 kg

Material	Plastic

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C to +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	KeyConnect

Environmental Space	Indoor
EU Directive 2002/95/EC (RoHS)	Yes

UL Flammability	UL2043 Air Handling Spaces

Related Parts	Compatible with KeyConnect-style Modular jacks10GX, CAT6+ and CAT5E.

Included Parts	(4) #6-32 mounting screws, (2) #4-40 cover std screws, (1) zip tie, (2) label, (2) label, window, (2) 2 sided adhesive
Notes	suitable for installation in Plenum/Air Handling Spaces per UL 2043

Update and Revision	Revision Number: 0.318 Revision Date: 02-20-2026

AX107295

Faceplates and Panels - Multi Media Outlet Box 6-Port KeyConnect

KEYCONNECT DG SURF ADAPTER BOX

KeyConnect Double-Gang Surface Adapter Box

KEYCONNECT SG SURF ADAPTER BOX

KeyConnect Single-Gang Surface Adapter Box

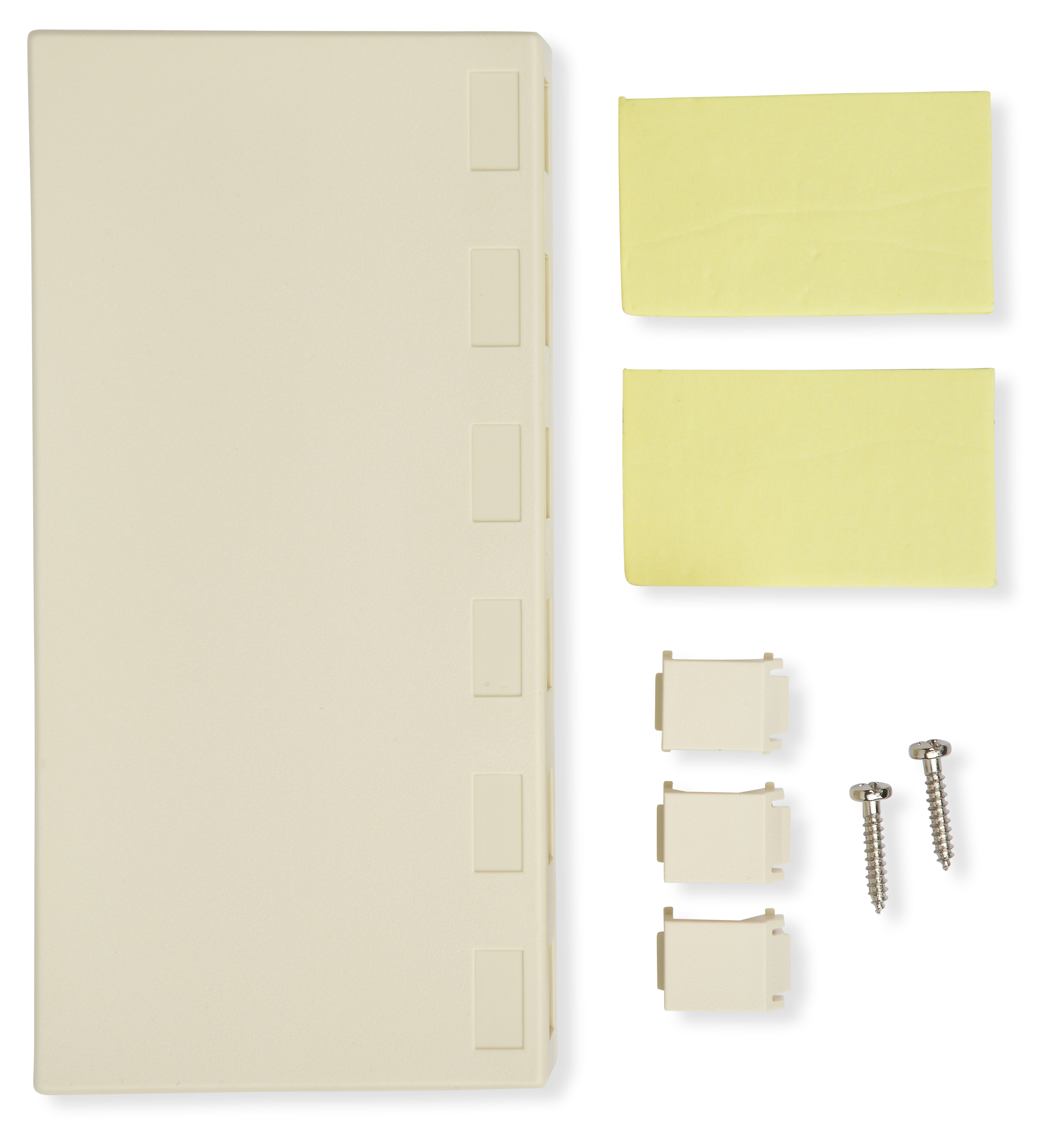

KEYCONNECT SIDE ENTRY BOXES
