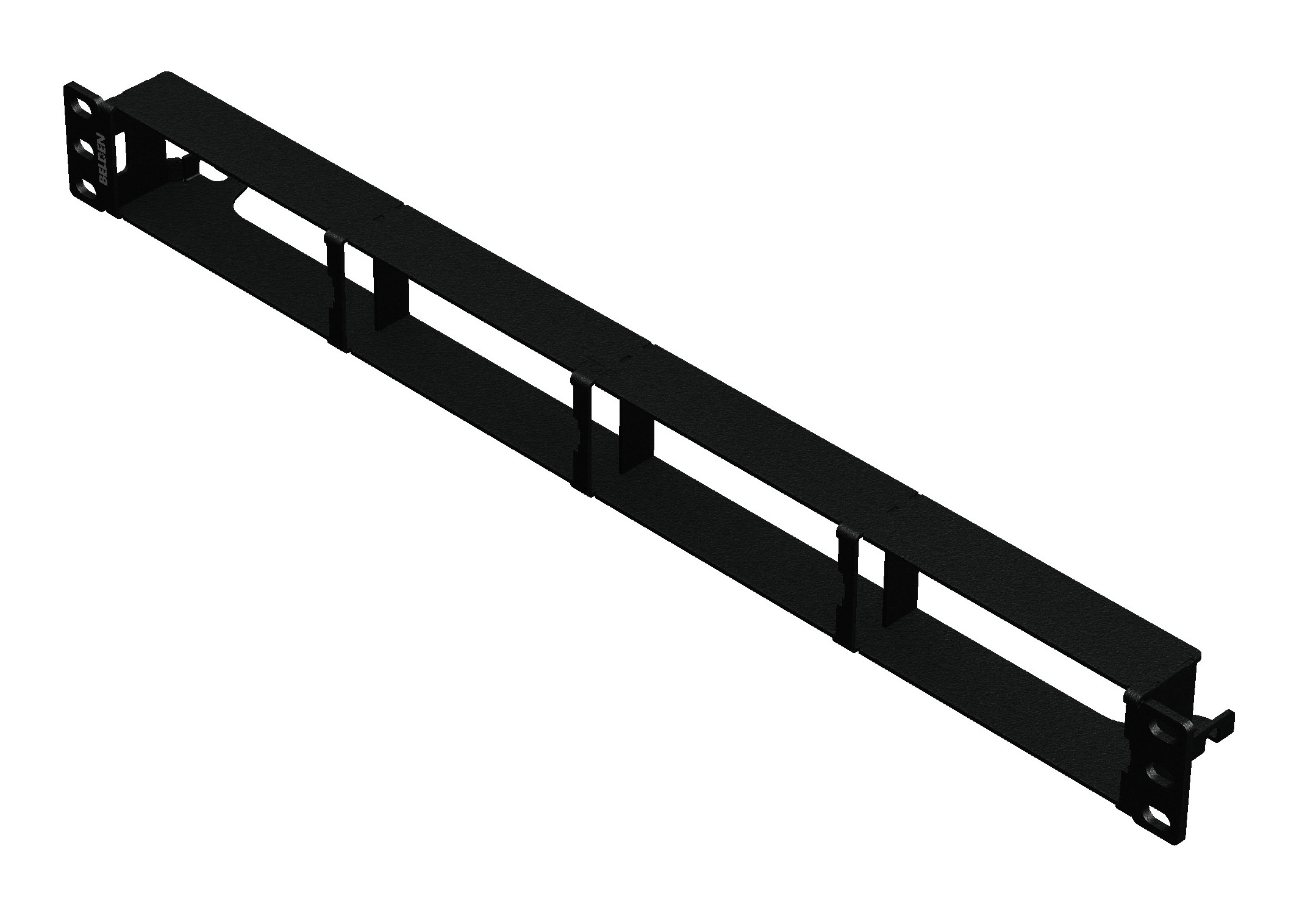

RVEPPF1U48BK, REVConnect Patch Panel, Empty, Flat, 1U, 48P, UTP
REVConnect Empty Patch Panel, Flat, 48 Port, 1U, Black
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | For use with REVConnect High Density Termination Modules |
|---|
Physical Characteristics (Overall)
| Overall Height | 1.73 |
|---|---|
| Overall Width | 19 |
| Overall Depth | 2 |
| Front Connection | Flush |
| Packaging | Individually packaged in a cardboard box. |
| Weight | 2.088 |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Panel | Steel | Black |
| Management Bar | Steel | Black |
Construction and Dimensions
| Max Capacity | 48 Connectors |
|---|
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Storage Temperature Range | -40°C to +70°C |
| Operating Temperature Range | -10°C to +60°C |
Mechanical Characteristics
| Connector System Compatibility | REVConnect |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed |
|---|
Related Part Numbers
| Related Parts | REVConnect 12-port Termination Modules, REVConnect Blank Modules |
|---|
Product Notes
| Included Parts | 1 REVConnect Empty High Density Patch Panel; 1 Rear Cable Management Bar; 4 Screws (10x32); 4 Screws (12x24); 2 Velcro Straps; 1 Installation Guide |
|---|---|
| Notes | For proper installation, refer to Installation Guide PX107031. |
History
| Update and Revision | Revision Number: 0.48 Revision Date: 12-03-2025 |
|---|
