Product Number: 10GX Angled PP 48 1U

AX105365-10GX Angled Patch Panel 48 Port 1U-Preloaded-UTP

Name: Belden 10GX Angled PP 48 1U
Brand: Belden
SKU: 10GX Angled PP 48 1U

Angled Patch Panel, 48-port, 1U with 10GX RJ45 Modular Jack

Ships from and sold by A5 IT.

Part numbers

10GX Angled PP 48 1U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX105365	Black	611589007528	Order online

Suitable Applications	IBDN System 10GX, TIA Category 10GX

Overall Height	44.450 mm
Overall Width	482.600 mm
Overall Depth	258.826 mm
Number of Ports	48 Port
Front Connection	Angled
Packaging	Individually packaged in a cardboard box.
Weight	1.179 kg

Description	Panel
Material	Steel

Max Capacity	48 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Data Category	Category 6A

Safety Listing	Bi-national Standard Listed

Related Parts	Compatible with 10GX, Patch Cord and 10GX Pre-Terminated Cable Assemblies.

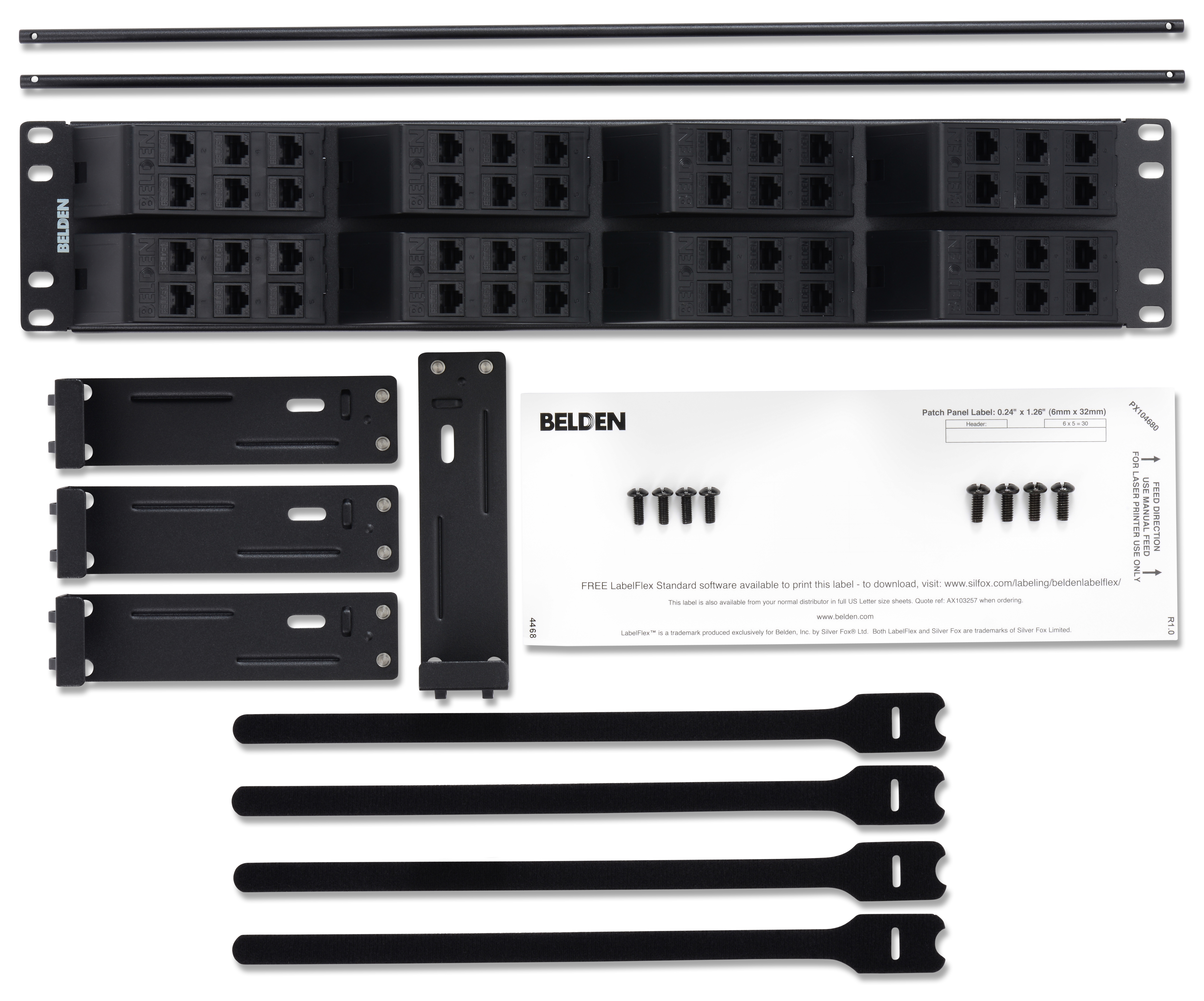

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 Rear Cable Management Bracket; 1 Bar.
Notes	Refer to AX102283 for the Specifications of the Modular Jacks.
