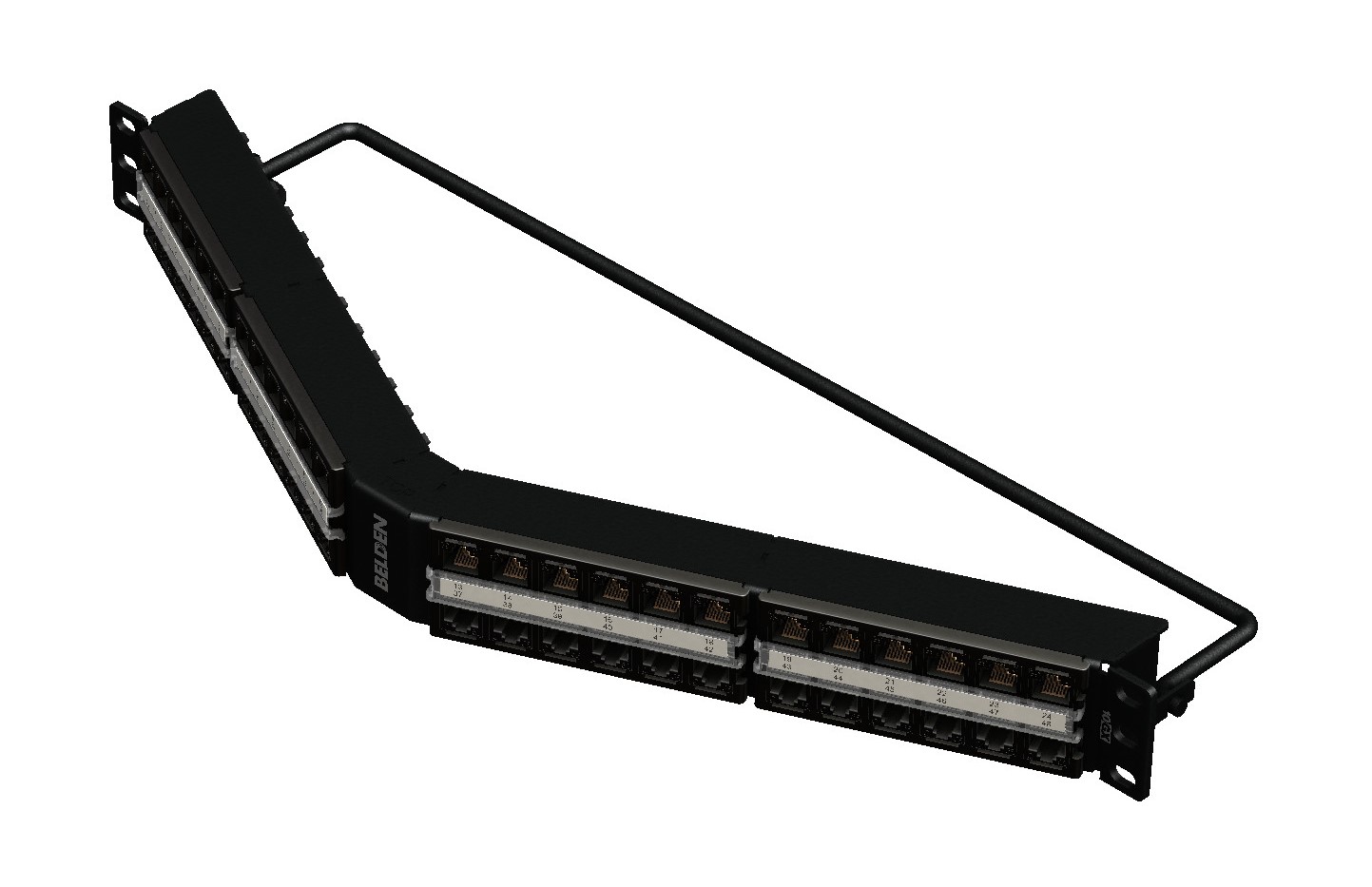

RVAPPA1U48BK, REVConnect Patch Panel, Cat 6A, Angled, 1U, 48P, Preloaded, UTP
REVConnect Category 6A Patch Panel, Preloaded, Angled, 48 Port, 1U, Black
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RVAPPA1U48BK is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Order |
|---|---|---|---|
| RVAPPA1U48BK | Black | 1U | Order online |
Specifications
Product Overview
| Suitable Applications | Ethernet 10GBASE-T, Wi-Fi 6, Wi-Fi 5, In-Building Wireless, In-Building Small Cells, Mobile RAN, Data Center EoR and MoR, PoE++, PoE+, PoE |
|---|
Physical Characteristics (Overall)
| Overall Height | 1.73 |
|---|---|
| Overall Width | 19 |
| Overall Depth | 5.83 |
| Number of Ports | 48 Port |
| Front Connection | Flush |
| Packaging | Individually packaged in a cardboard box. |
| Weight | 3.437 |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Panel | Steel | Black |
| Frame | PC/ABS | Black |
| Management Bar | Steel | Black |
| Clear Window | Polycarbonate | Transparent |
Construction and Dimensions
| Max Capacity | 48 Connectors (Preloaded) |
|---|
Electrical Characteristics
| Dielectric Strength | 1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
| Current Rating | 1.300 A |
| Insulation Resistance | 500 M-Ohm Minimum |
| Termination Resistance | 2.5 mOhm |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Storage Temperature Range | -40°C to +70°C |
| Operating Temperature Range | -10°C to +60°C |
Mechanical Characteristics
| Connector System Compatibility | REVConnect |
|---|---|
| Tool Compatibility | REVConnect Termination Tool (RVUTT01) |
| Plug /Jack Compatibility | RJ45 |
| Termination Front Connection | Mated Connection |
| Termination Front Connection Durability | 750 Cycles |
| Termination Rear Connection | Mated Connection |
| Termination Rear Connection Durability | 20 Cycles |
| Cable/Connector Retention | 15 lbs |
| Connector/Hardware Retention | 20 lbs |
| Plug/Connector Retention | 11.250 lbs |
Standards
| UL Rating | UL94V-0 |
|---|---|
| Data Category | Category 6A |
| TIA/EIA Compliance | Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2 |
| IEEE Compliance | Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE 802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseT TM (up to 100W) |
| Other Standards | FCC Part 68, Subpart F, IEC 60603-7 |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed |
|---|
Related Part Numbers
| Related Parts | REVConnect Termination Tool, Cat 6A Modular Cords |
|---|
Product Notes
| Included Parts | 48 10GX REVConnect High Density Jacks, Black, Preloaded; 50 REVConnect Cable Managers and Caps; 4 Clear Windows; 1 Rear Cable Management Bar; 4 Screws (10x32); 4 Screws (12x24); 2 Velcro Straps; 4 Frames; 1 Installation Guide |
|---|---|
| Notes | For proper installation, refer to Installation Guide PX107031. |
History
| Update and Revision | Revision Number: 0.118 Revision Date: 12-03-2025 |
|---|
