Product Number: RV6PPA1U48BK

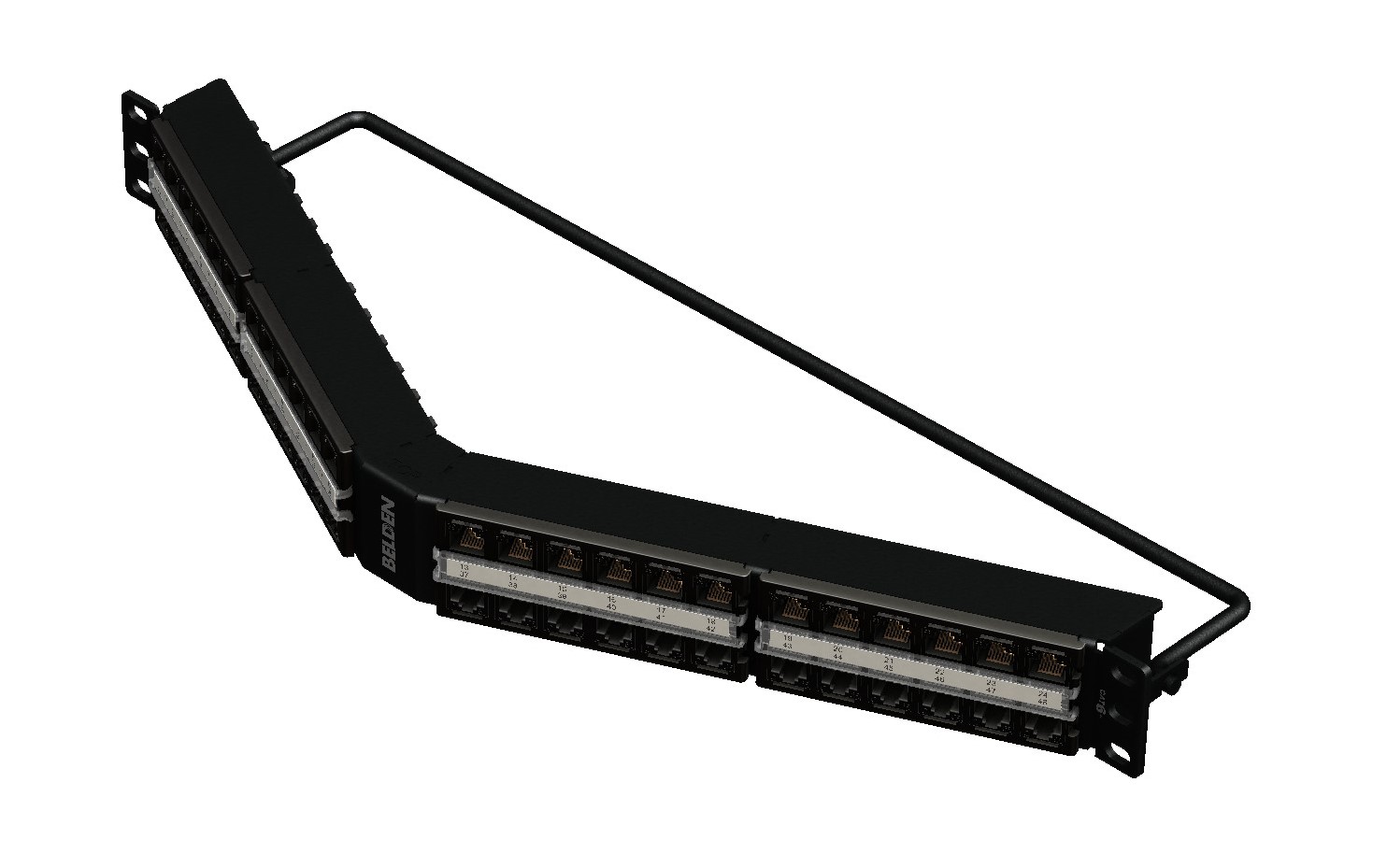

REVConnect Patch Panel, Cat 6+, Angled, 1U, 48P

Name: Belden RV6PPA1U48BK
Brand: Belden
SKU: RV6PPA1U48BK

REVConnect Category 6+ Patch Panel, Preloaded, Angled, 48 Port, 1U, Black

Ships from and sold by A5 IT.

Part numbers

RV6PPA1U48BK is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Order
RV6PPA1U48BK	Black	Order online

Suitable Applications	REVConnect 2400 & 3600 Systems, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Overall Height	1.73
Overall Width	19
Overall Depth	5.83
Number of Ports	48 Port
Front Connection	Flush
Packaging	Individually packaged in a cardboard box.
Weight	3.437

Max Capacity	48 Connectors (Preloaded)

Installation Temperature Range	-10°C to +60°C
Storage Temperature Range	-40°C to +70°C
Operating Temperature Range	-10°C to +60°C

Connector System Compatibility	REVConnect
Tool Compatibility	REVConnect Termination Tool (RVUTT01)
Plug /Jack Compatibility	RJ45
Termination Front Connection	Mated Connection
Termination Front Connection Durability	750 Cycles
Termination Rear Connection	Mated Connection
Termination Rear Connection Durability	20 Cycles
Cable/Connector Retention	15 lbs
Connector/Hardware Retention	20 lbs
Plug/Connector Retention	11.250 lbs

UL Rating	UL94V-0
Data Category	Category 6
TIA/EIA Compliance	Category 6 - TIA 568-C.2, ISO/IEC 11801-1, TIA TSB-5021
IEEE Compliance	Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE 802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseT TM (up to 100W)

Safety Listing	c(UL)us Listed

Related Parts	REVConnect Termination Tool, Cat 6 Modular Cords

Included Parts	48 Cat 6 REVConnect High Density Jacks, Black, Preloaded; 50 REVConnect Cable Managers and Caps; 4 Clear Windows; 1 Rear Cable Management Bar; 4 Screws (10x32); 4 Screws (12x24); 2 Velcro Straps; 4 Frames; 1 Installation Guide
Notes	For proper installation, refer to Installation Guide PX107031.
