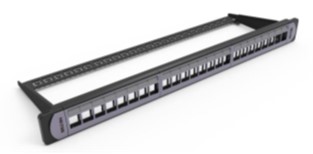

DataConnect Unshielded Patch Panel, 24-port, 1U (Empty)
DataConnect Unshielded Patch Panel, 24-port, 1U (Empty)
- Availability
- EMEA | Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Compatible with a variety of DataConnect Modules that are suitable for Belden DataConnect Cat 5e, Cat 6, and Cat 6A Jack. Compatible with 10GX, CAT6+ and CAT5E DataConnect Modular Jacks as well as DataConnect Multimedia Modules. |
|---|
Physical Characteristics (Overall)
| Overall Height | 43.6 mm |
|---|---|
| Overall Width | 482.600 mm |
| Material | Frame: Steel; Front plastic panel: ABS |
| Front Connection | Flush |
| Packaging | Individually packaged in a cardboard box. |
Construction and Dimensions
| Max Capacity | 24 Connectors |
|---|
Temperature Range
| Storage Temperature Range | -25°C To +55°C |
|---|---|
| Operating Temperature Range | -25°C To +55°C |
Applicable Environmental and Other Programs
| EU Directive 2012/19/EU (WEEE) | Yes |
|---|
Suitability
| Suitability - Indoor | Yes |
|---|
Product Notes
| Included Parts | M6*12 Cross pan head screw x 4; M6 Cage nut x 4 rear cable management bar |
|---|
History
| Update and Revision | Revision Number: 0.24 Revision Date: 11-21-2024 |
|---|
