Product Number: CAT5e DataConnect Panel 24P

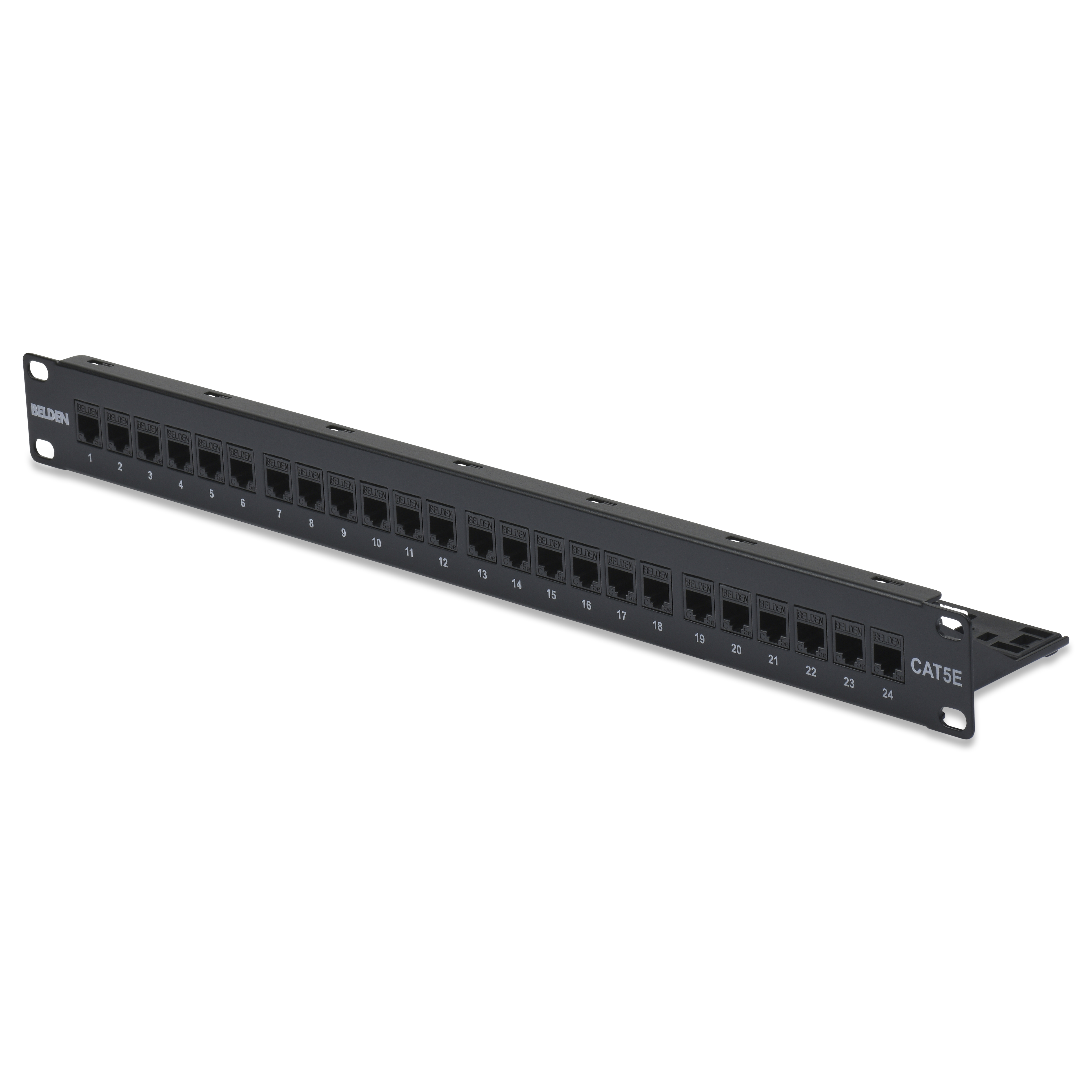

DC5PPF1U24-CAT5e DataConnect Patch Panel, UTP, 24 Port

Name: Belden CAT5e DataConnect Panel 24P
Brand: Belden
SKU: CAT5e DataConnect Panel 24P

CAT5e DataConnect Patch Panel, UTP, Flat, 24-Port, 1U (Preloaded)

Ships from and sold by A5 IT.

Part numbers

CAT5e DataConnect Panel 24P is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	UPC	Order
DC5PPF1U24BK	Black	1U	611589249195	Order online

Suitable Applications	Ethernet 10/ 100/ 1000BASE-T, 2.5GBASE-T

Overall Height	1.75 in
Overall Width	19.000 in
Overall Depth	2.960 in
Number of Ports	24 Port
Front Connection	Flush
Packaging	Individually packaged in a cardboard box.
Weight	2.008 lbs

Description	Material	Color
Panel	Steel	Black
Management Bar	Steel/Plastic	Black

Max Capacity	24 connectors (preloaded)

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	DataConnect
Tool Compatibility	Belden 110 Connecting Tool (AX100749), MediaFlex Termination Station (AX101852), Belden Rapid TerminationTool (AX105566)
Plug /Jack Compatibility	RJ45
Cable/Connector Retention	11.25 lbs
Connector/Hardware Retention	20 lbs
Plug/Connector Retention	11.250 lbs

UL Rating	UL94V-0
ISO/IEC Compliance	IEC 60603-7
Data Category	Category 5e
TIA/EIA Compliance	ANSI/TIA 1096-A (formerly FCC Part 68-F)
IEEE Compliance	IEEE 802.3at type 1 and 2 (PoE) up to 30W, IEEE 802.3bt type 3 and 4 (PoE) up to 100W, CISCO (UPOE) up to 60W, Power over HDBaseT TM (POH) up to 100W

Safety Listing	c(UL)us Listed, UL 1863, UL File E77103

Related Parts	DataConnect CAT5E Modular Jacks, DataConnect CAT5E Modular cord

Included Parts	4 Screws (12x24); 1 Printable Label Half-Sheet; 2 Velcro Straps; 1 Rear Cable Support Bar; 1 Installation Guide; 24 Protective Caps
Notes	For proper installation refer to Installation Guide PX106898 included with the product
