Rack-Mount Pre-Loaded Copper Panels
Belden Pre-Loaded Copper Patch Panels are ready to go right out of the box with fully assembled components. The 24-port panels come with 24 jacks, and the 48-port panels come with 48 jacks. Simple ordering using just one part number saves time. Standard intuitive color sequences help improve speed and prevent wire-mapping errors. Belden’s REVConnect Connectivity line now includes a one-of-a-kind, high-density patch panel that comes with 48 ports in a 1U space. It utilizes REVConnect termination technology and is available in Category 5e, 6 and 6A configurations, as well as flat or angled alignments. The new patch panel offers superior labeling with 1U 48-port configurations and REVConnect color-coded icons for easier, faster installation.
Features & Benefits
- Deploy Fully Operational Panels Sooner: Everything you need is included, including support bars and labeling material
- Ultimate Flexibility: Available in a wide variety of styles, including flat, angled and AngleFlex options
- Easily Identify Services: Panels include individual color-coded patch panel ports
23 product families
CAT5e DataConnect Panel 24P
DC5PPF1U24-CAT5e DataConnect Patch Panel, UTP, 24 Port
1 item
CAT5e DataConnect Panel 48P
DC5PPF2U48-CAT5e DataConnect Patch Panel, UTP, 48 Port
1 item
CAT6 DataConnect Panel 24P
DC6PPF1U24-CAT6 DataConnect Patch Panel, UTP, 24 Port
1 item
CAT6 DataConnect Panel 48P
DC6PPF2U48-CAT6 DataConnect Patch Panel, UTP, 48 Port
1 item
PPRO PP 1U 24P 10GX CPL STP
PPC6ASC-PatchPro 24-port STP Cat6A iPLM Ready Shielded Panel,1U, Loaded with 10GX RJ45 Shielded Coupler
1 itemPPRO PP 1U 24P 10GX CPL UTP
PPC6AUC-PatchPro 24-port UTP Cat6A iPLM Ready Unshielded Panel,1U, Loaded with 10GX RJ45 Unshielded Coupler
1 itemPPRO PP 1U 24P 10GX JACK STP
PPC6ASR-PatchPro 24-port STP Cat6A iPLM Ready Shielded Panel,1U, Packaging including 10GX RJ45 Shielded Modular Jack
1 itemPPRO PP 1U 24P 10GX JACK UTP
PPC6AUR-PatchPro 24-port UTP Cat6A iPLM Ready Unshielded Panel,1U, Packaging including 10GX RJ45 Unshielded Modular Jack
1 itemPPRO PP 1U 24P C6+ JACK UTP
PPC6UR-PatchPro 24-port STP CAT6+ iPLM Ready Unshielded Panel,1U, Packaging including with CAT 6 RJ45 Unshielded Modular Jack
1 item
LC1AN24B
KeyConnect Loaded CAT6A Angled Patch Panel, 24 Port, 1U
LC1AS24B
KeyConnect Loaded CAT6A Straight Patch Panel, 24 Port, 1U
LC1EN24B
KeyConnect Loaded CAT5E Angled Patch Panel, 24 Port, 1U
LC1ES24B
KeyConnect Loaded CAT5E Straight Patch Panel, 24 Port, 1U
LC16N24B
KeyConnect Loaded CAT6 Angled Patch Panel, 24 Port, 1U
LC16S24B
KeyConnect Loaded CAT6 Straight Patch Panel, 24 Port, 1U

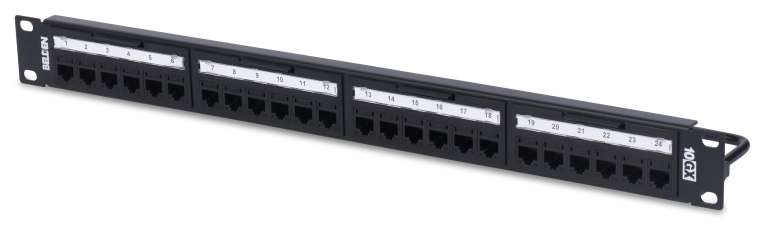

RV6PPF1U24BK-P
RV6PPF1U24BK-P FACEPLATES AND PANELS - CAT6+ REVCONNECT PATCH PANEL, FLAT 1U24-PORT PRINTED, UTP

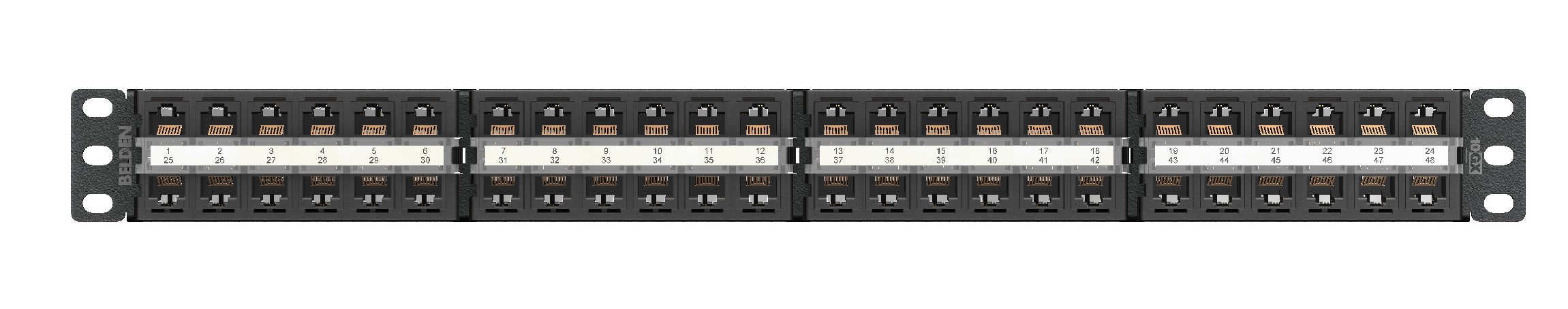

RV6PPF2U48BK-P
FACEPLATES AND PANELS - CAT6+ REVCONNECT PATCH PANEL, FLAT 2U48-PORT PRINTED
RVAPPF1U24BK-P
RVAPPF1U24BK-P, FACEPLATES AND PANELS - 10GX REVCONNECT PATCH PANEL, 1U24-PORT PRINTED, Preloaded, UTP
RVAPPF2U48BK-P
FACEPLATES AND PANELS - 10GX REVCONNECT PATCH PANEL, 2U48-PORT PRINTED, Preloaded, UTP
CAT6A DataConnect Panel 24P
DCAPPF1U24-CAT6A DataConnect Patch Panel, UTP, 24 Port
1 itemCAT6A DataConnect Panel 48P
DCAPPF2U48-CAT6A DataConnect Patch Panel, UTP, 48 Port
1 itemPPRO PP 1U 48P 10GX JACK UTP
PPC6AUR-D-PatchPro 48-port UTP Cat6A iPLM Ready Unshielded Panel,1U, Packaging including 10GX RJ45 Unshielded Modular Jack
1 itemPPRO PP 1U 24P C6+ JACK STP
PPC6SR-PatchPro 24-port STP Cat6+ iPLM Ready Shielded Panel,1U, Packaging including with CAT 6 RJ45 Shielded Modular Jack
