Product Number: KCONN Shielded PP 24 1U

KeyConnect Shielded Patch Panel 24 Port, 1U-AX106902 (Black)-AX104563 (Titanium), Empty

Name: Belden KCONN Shielded PP 24 1U
Brand: Belden
SKU: KCONN Shielded PP 24 1U

KeyConnect Shielded Patch Panel, 24-port, 1U, Empty

Ships from and sold by A5 IT.

Part numbers

KCONN Shielded PP 24 1U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX104563	Titanium	611589064620	Order online

Suitable Applications	Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 2400 and 1200.

Color Chart1 Table Notes	Black
Color Chart2 Table Notes	Titanium
Overall Height	43.688 mm
Overall Width	482.600 mm
Overall Depth	118.618 mm
Number of Ports	24 Port
Front Connection	Flush
Packaging	Individually packaged in a cardboard box.
Weight	1.315 kg

Description	Panel
Material	Steel

Max Capacity	24 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	KeyConnect
Termination Rear Connection	Yes

Safety Listing	ACA, Bi-national Standard Listed

Related Parts	Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks as well as KeyConnect Multimedia Modules.

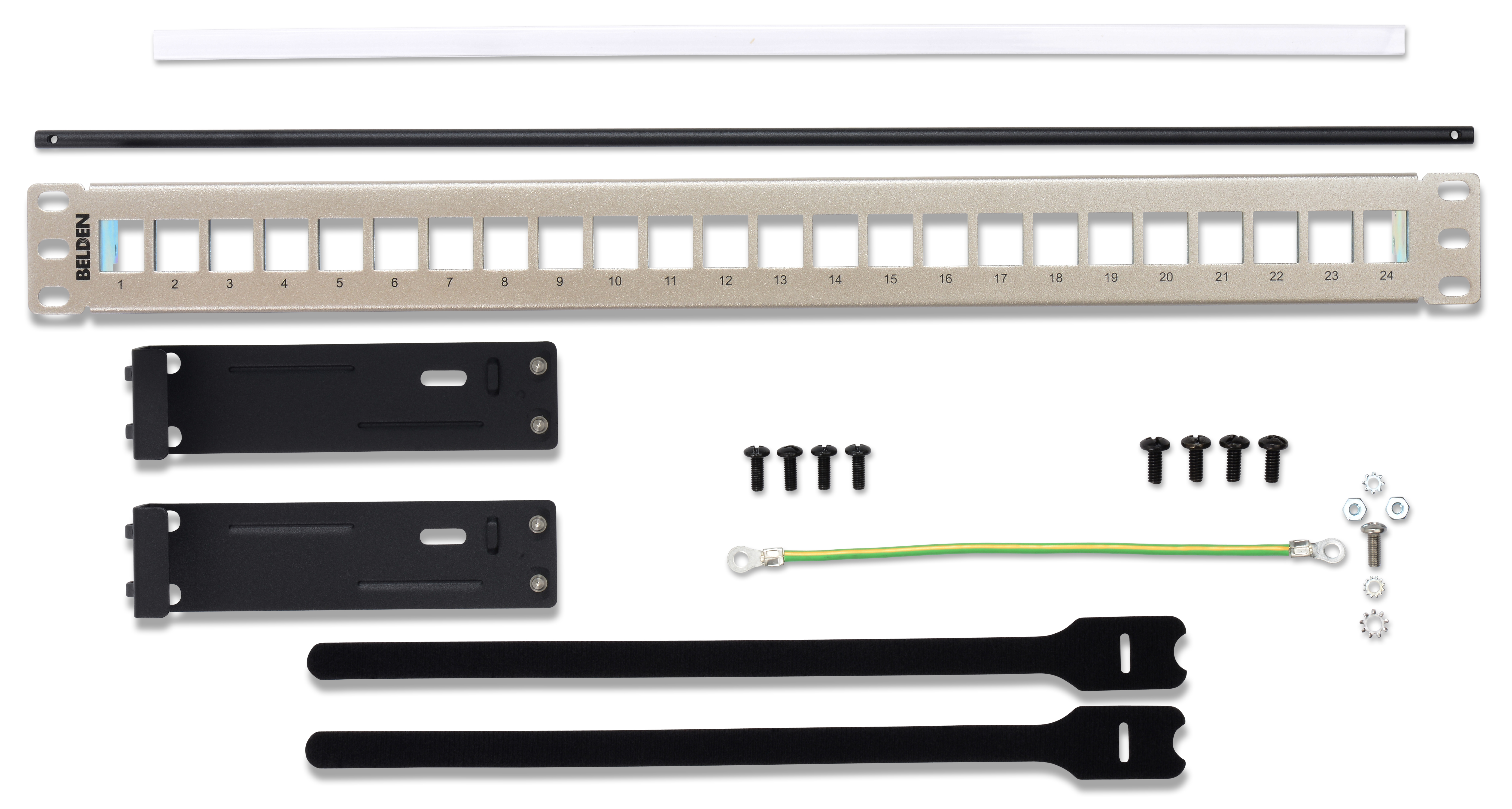

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Printable Label Holder; 2 Velcro Straps; 2 Rear Cable Management Bracket/Bar, 1 Installation Guide, 1 Ground Wire 12AWG Kit
Notes	For proper installation refer to Installation Guide PX105408 included with the product
