Product Number: KCONN Shielded Angled PP 48 2U

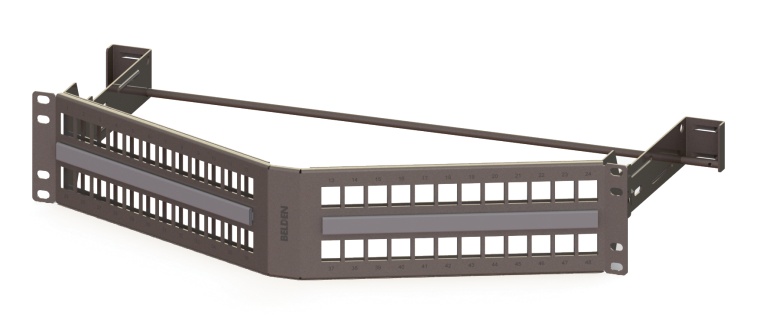

AX104623-KeyConnect Shielded Angled Patch Panel 48 Port, 2U, Empty

Name: Belden KCONN Shielded Angled PP 48 2U
Brand: Belden
SKU: KCONN Shielded Angled PP 48 2U

KeyConnect Shielded Angled Patch Panel, 48-port, 2U, Empty

Ships from and sold by A5 IT.

Part numbers

KCONN Shielded Angled PP 48 2U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX104623	Titanium	611589078610	Order online

Suitable Applications	Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 2400 and 1200.

Overall Height	88.138 mm
Overall Width	482.600 mm
Overall Depth	293.116 mm
Number of Ports	48 Port
Front Connection	Angled
Packaging	Individually packaged in a cardboard box.
Weight	1.769 kg

Description	Panel
Material	Steel

Max Capacity	48 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	KeyConnect

TIA/EIA Compliance	Category 5e - TIA 568.C.2, Category 6 - TIA 568.C.2, Category 6A - TIA 568.C.2, Class E - ISO/IEC 11801:2002, Class EA - ISO/IEC 11801:2002 Amendment 2, Class D - ISO/IEC 11801:2002

Safety Listing	ACA, Bi-national Standard Listed

Related Parts	Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks as well as KeyConnect Multimedia Modules.

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Printable Label Holder; 2 Velcro Straps; 2 Rear Cable Management Bracket/Bar, 1 Installation Guide, Ground Wire 12AWG Kit
Notes	For proper installation refer to Installation Guide PX105408 included with the product
