Product Number: KCONN PP Flat 48 2U

AX103115-KeyConnect Patch Panel Flat 48 Port, 2U, Empty, UTP

Name: Belden KCONN PP Flat 48 2U
Brand: Belden
SKU: KCONN PP Flat 48 2U

KeyConnect Patch Panel, 48-port, 2U, Empty

Ships from and sold by A5 IT.

Part numbers

KCONN PP Flat 48 2U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX103115	Black	611589033923	Order online

Suitable Applications	Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 2400 and 1200.

Overall Height	88.9 mm
Overall Width	482.600 mm
Overall Depth	33.020 mm
Number of Ports	48 Port
Front Connection	Flush
Packaging	Individually packaged in a cardboard box.
Weight	0.816 kg

Description	Panel
Material	Steel

Max Capacity	48 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	KeyConnect

Safety Listing	ACA, Bi-national Standard Listed

Related Parts	Compatible with 10GX, CAT6+ and CAT5E REVConnect and KeyConnect Modular Jacks as well as KeyConnect Multimedia Modules.

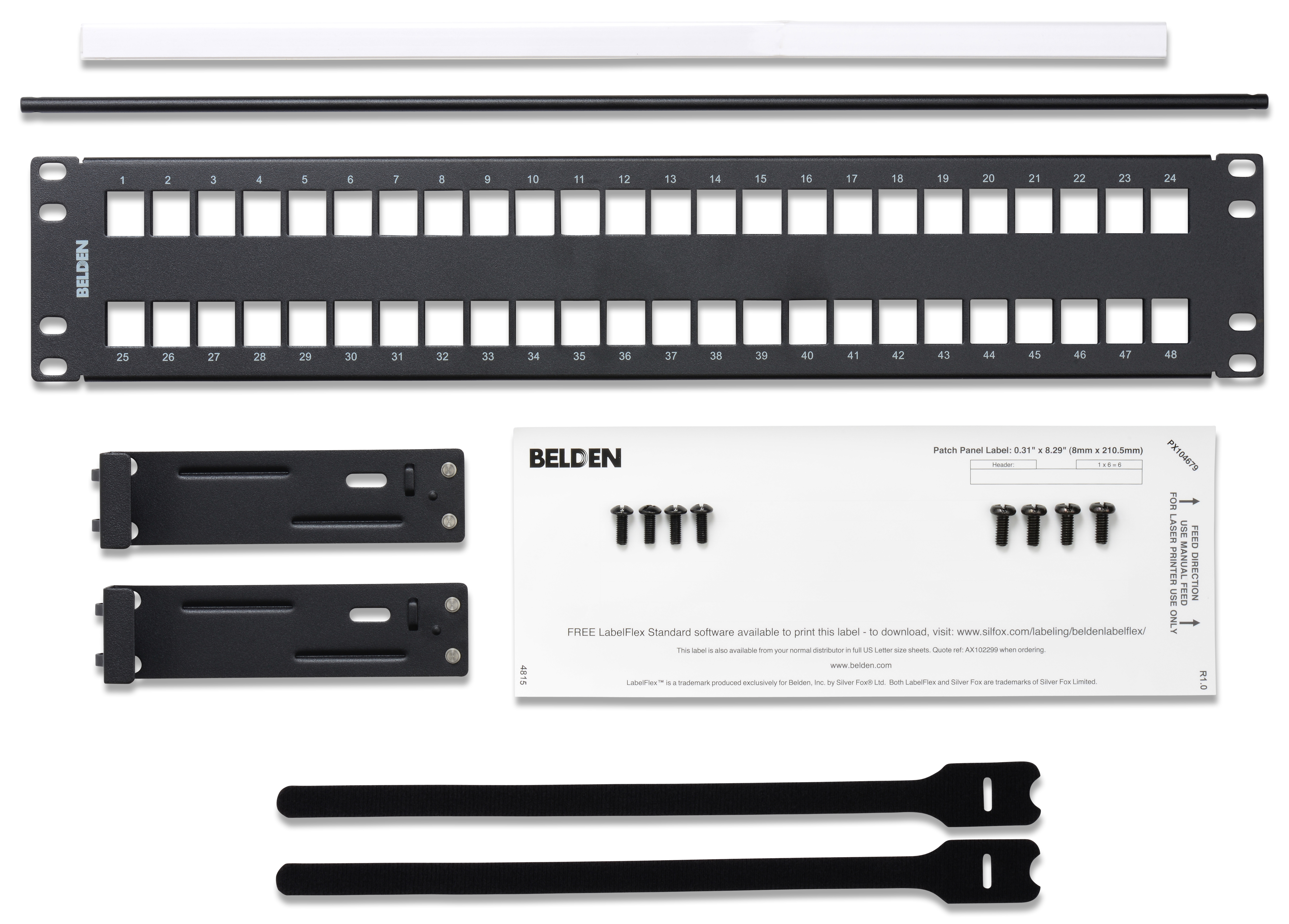

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Label Holder; 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 Rear Cable Management Brackets; 1 Management Bar; 1 Installation Guide
