Product Number: KCONN PP Flat 24 1U

AX103114-KeyConnect Patch Panel Flat 24 Port, 1U, Empty, UTP

Name: Belden KCONN PP Flat 24 1U
Brand: Belden
SKU: KCONN PP Flat 24 1U

KeyConnect Patch Panel, 24-port, 1U, Empty

Ships from and sold by A5 IT.

Part numbers

KCONN PP Flat 24 1U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX103114	Black	611589033893	Order online

Suitable Applications	Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 2400 and 1200.

Overall Height	44.450 mm
Overall Width	482.600 mm
Overall Depth	33.020 mm
Number of Ports	24 Port
Front Connection	Flush
Packaging	Individually packaged in a cardboard box.
Weight	0.454 kg

Description	Panel
Material	Steel

Max Capacity	24 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	KeyConnect

Safety Listing	ACA, Bi-national Standard Listed

Related Parts	Compatible with 10GX, CAT6+ and CAT5E REVConnect and KeyConnect Modular Jacks as well as KeyConnect Multimedia Modules.

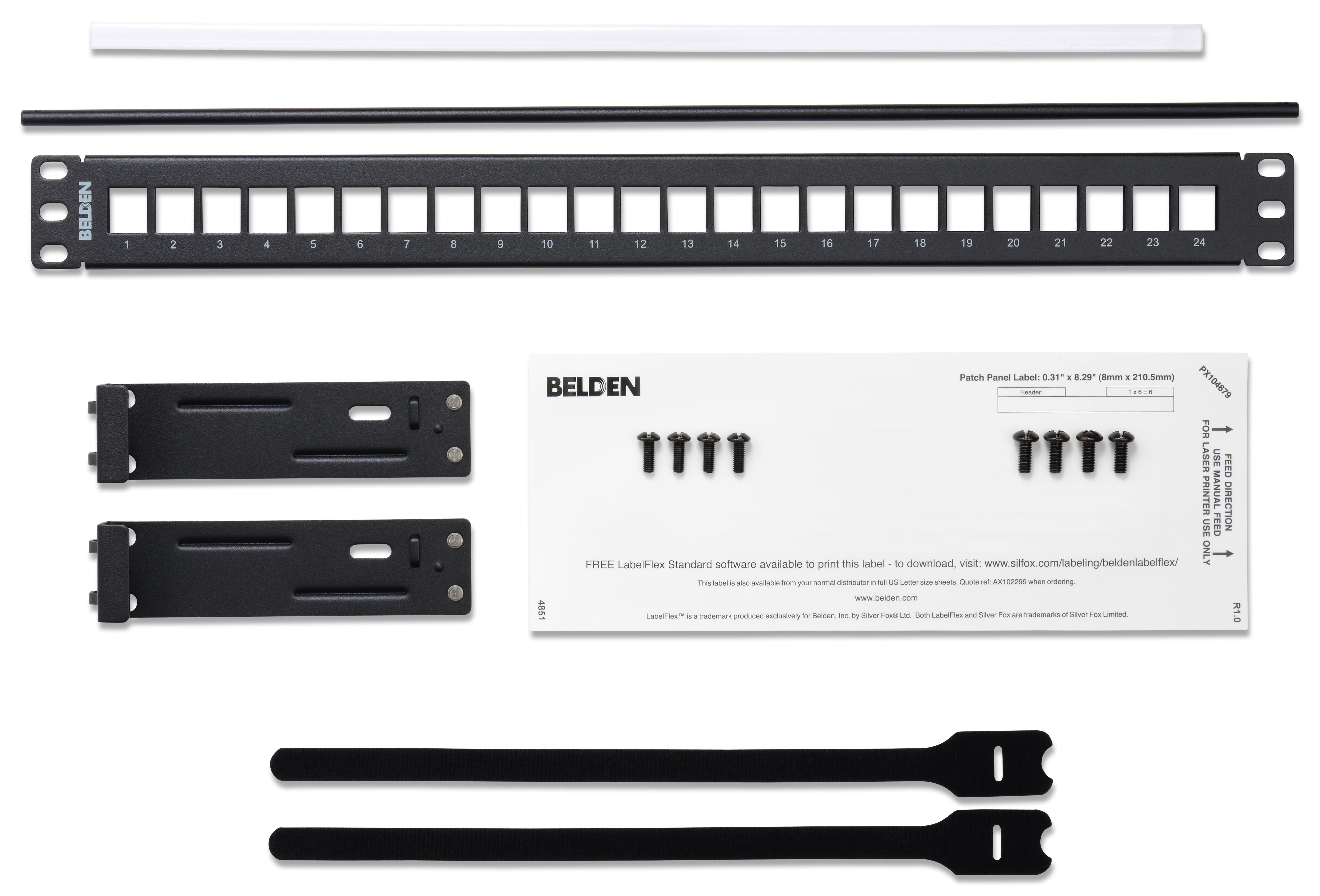

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Label Holder; 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 Rear Cable Management Brackets, 1 Management Bar; 1 Installation Guide
Notes	For proper installation refer to Installation Guide PX104691 included with the product
