Product Number: KCONN AngleFlex PP 24 1U

AX103248-KeyConnect AngleFlex Patch Panel 24 Port, 1U, Empty, UTP

Name: Belden KCONN AngleFlex PP 24 1U
Brand: Belden
SKU: KCONN AngleFlex PP 24 1U

AngleFlex Patch Panel, 24-port, 1U, Empty

Ships from and sold by A5 IT.

Part numbers

KCONN AngleFlex PP 24 1U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX103248	Black	611589033961	Order online

Suitable Applications	Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 2400 and 1200.

Overall Height	44.450 mm
Overall Width	482.600 mm
Overall Depth	78.740 mm
Number of Ports	24 Port
Front Connection	Angled
Packaging	Individually packaged in a cardboard box
Weight	1.515 kg

Description	Panel
Material	Steel

Max Capacity	24 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Safety Listing	ACA, Bi-national Standard Listed

Related Parts	Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks as well as KeyConnect Multimedia Modules.

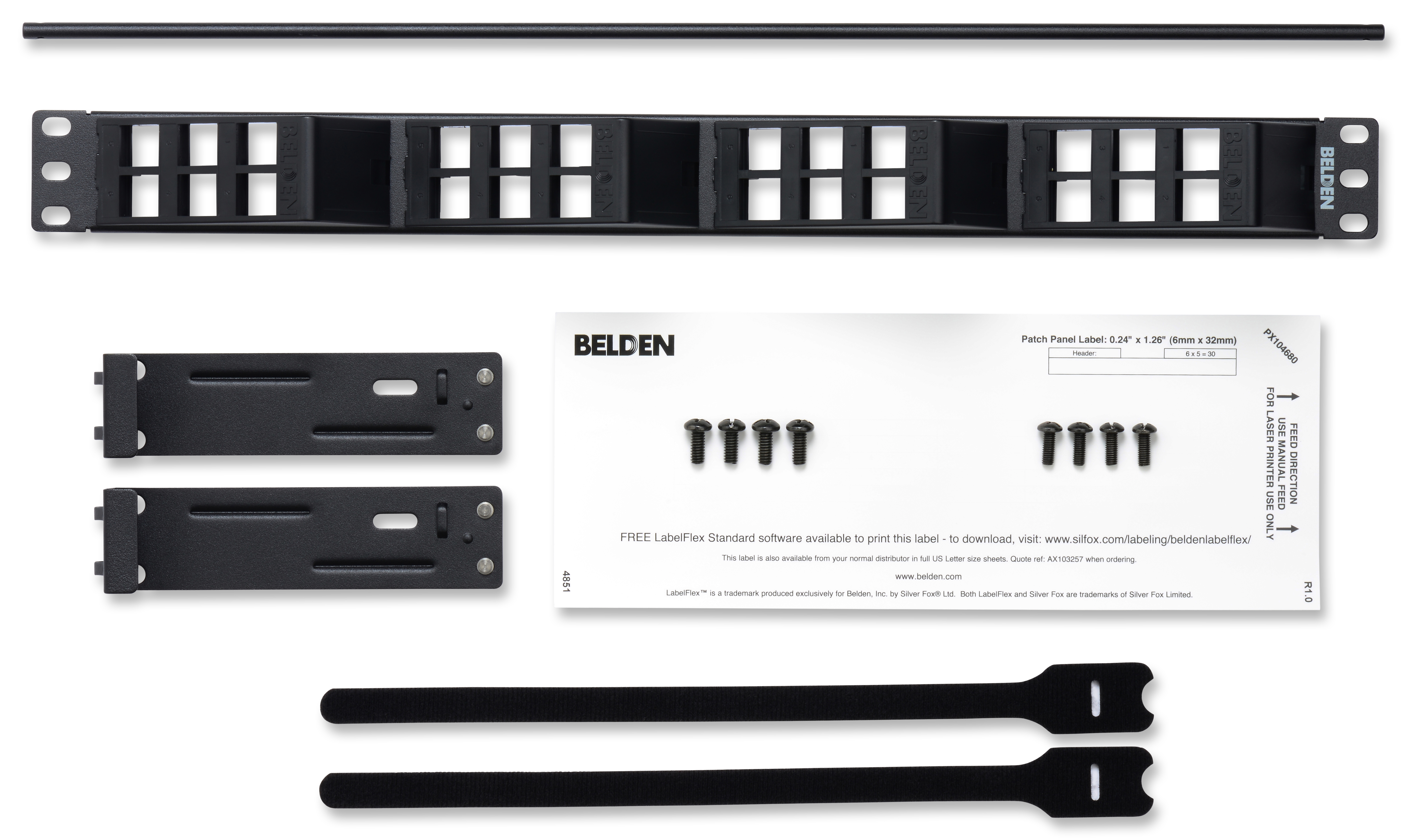

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 Rear Cable Management Bracket, 1 Installation Guide
Notes	For proper installation refer to Installation Guide PX104673 included with the product or visit our web site at http://www.belden.com/pdfs/Techpprs/InstallationGuide.pdf
