Product Number: KCONN Angled PP 48 2U

AX104601-KeyConnect Angled Patch Panel 48 Port, 2U, Empty, UTP

Name: Belden KCONN Angled PP 48 2U
Brand: Belden
SKU: KCONN Angled PP 48 2U

KeyConnect Angled Patch Panel, 48-port, 2U, Empty

Ships from and sold by A5 IT.

Part numbers

KCONN Angled PP 48 2U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX104601	Black	611589066976	Order online

Suitable Applications	Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 2400 and 1200.

Overall Height	88.9 mm
Overall Width	482.600 mm
Overall Depth	189.230 mm
Number of Ports	48 Port
Front Connection	Angled
Packaging	Individually packaged in a cardboard box.
Weight	1.139 kg

Description	Panel
Material	Steel

Max Capacity	48 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	KeyConnect

Safety Listing	ACA, Bi-national Standard Listed

Related Parts	Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks as well as KeyConnect Multimedia Modules.

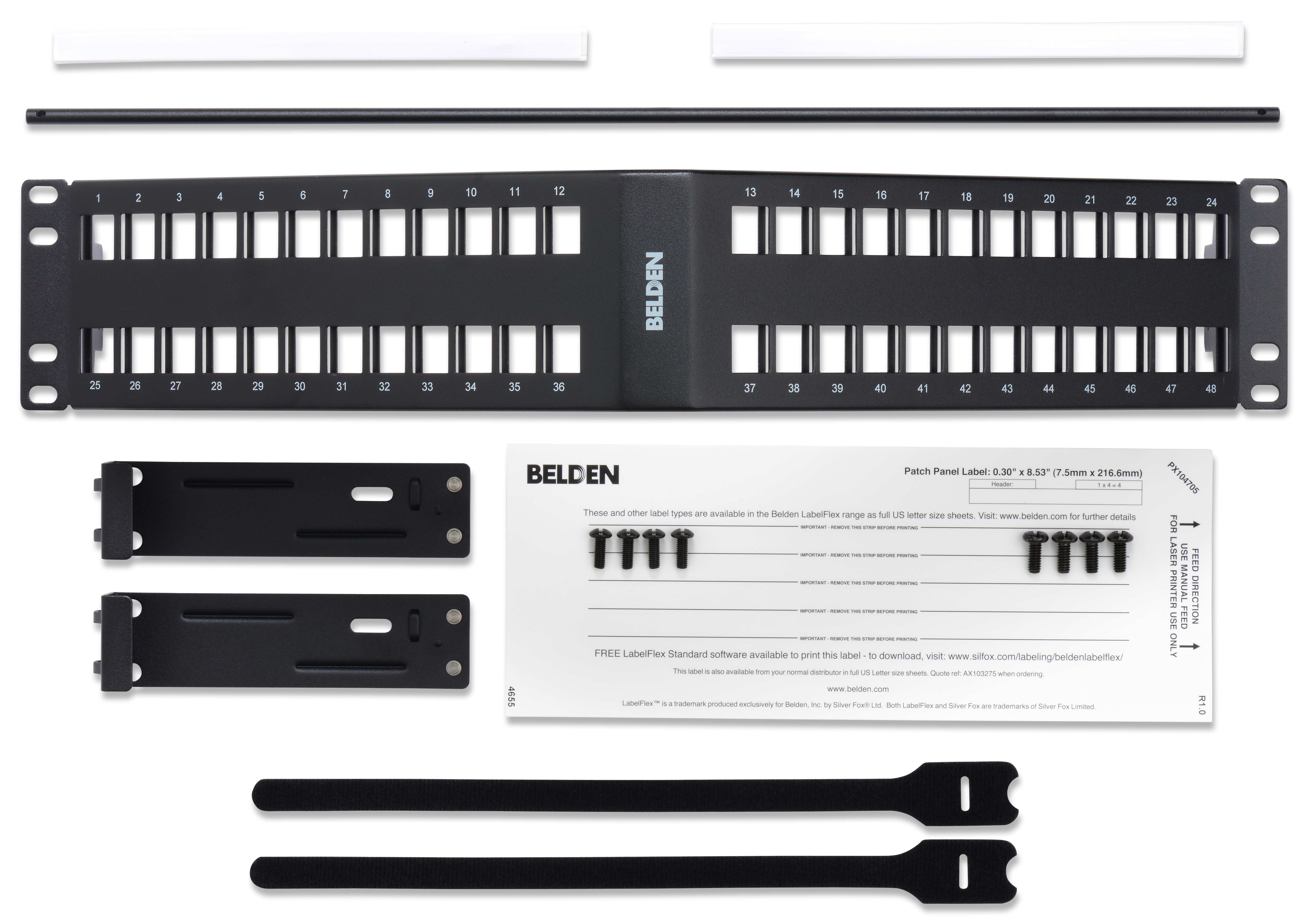

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Label Holders; 2 Velcro Straps; 2 Rear Cable Management Bracket, 1 Cable Management Bar
