RV6PPF1U24-CAT6+ REVConnect Patch Panel, 24 Port, Preloaded, UTP

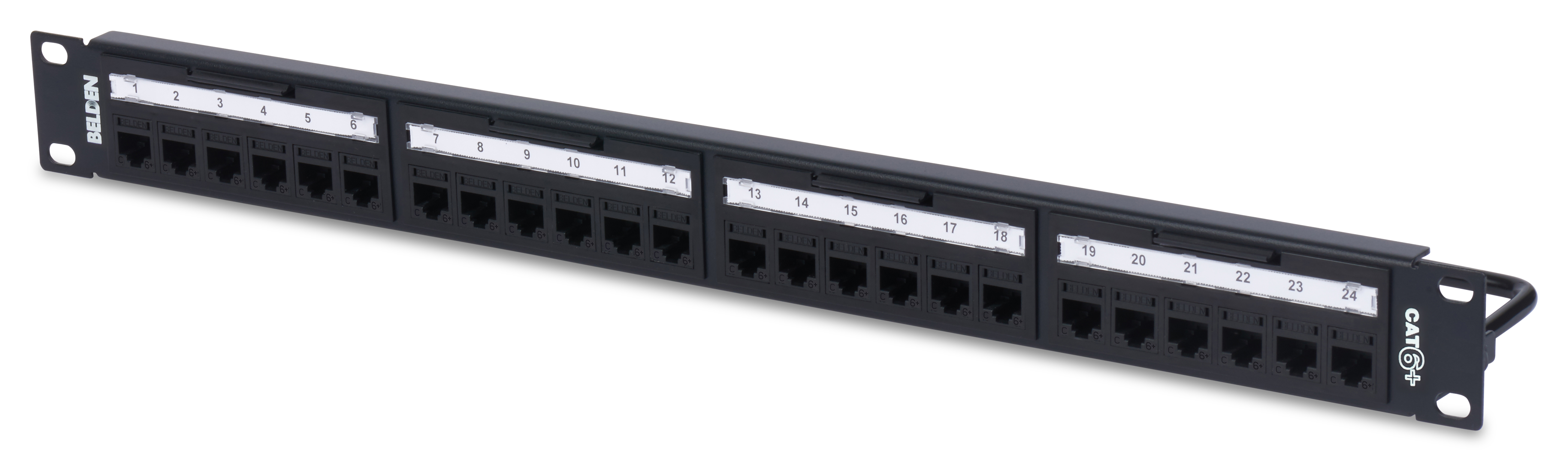

CAT6+ REVConnect Patch Panel, Flat, UTP, 24-Port, 1U (Preloaded)
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
CAT6+ REVConnect Panel 24P is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| RV6PPF1U24BK | Black | 611589224970 | Order online |
Specifications
Product Overview
| Suitable Applications | 2400, 3600, 4800 Systems, TIA Category 6, ISO Class E, 1GBASE-T |
|---|
Physical Characteristics (Overall)
| Overall Height | 1.73 in |
|---|---|
| Overall Width | 19.000 in |
| Overall Depth | 2.000 in |
| Number of Ports | 24 Port |
| Front Connection | Flush |
| Packaging | Individually packaged in a cardboard box. |
| Weight | 1.846 lbs |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Panel | Steel | Black/White |
| Frame | PC/ABS | Black/White |
| Management Bar | Steel | Black |
| Clear Window | Polycarbonate | Transparent |
Construction and Dimensions
| Max Capacity | 24 connectors (preloaded) |
|---|
Electrical Characteristics
| Dielectric Strength | 1,000 V RMS @ 60 Hz for 1 minute (Signals to Ground) |
|---|---|
| Current Rating | 1.300 A |
| Insulation Resistance | 500 M-Ohm Minimum |
| Termination Resistance | 2.5 mOhm |
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
| Operating Temperature Range | -10°C To +60°C |
Mechanical Characteristics
| Connector System Compatibility | REVConnect |
|---|---|
| Tool Compatibility | REVConnect Termination Tool (RVUTT01) |
| Plug /Jack Compatibility | RJ45 |
| Cable/Connector Retention | 15 lbs |
| Connector/Hardware Retention | 20 lbs |
| Plug/Connector Retention | 11.250 lbs |
Standards
| UL Rating | UL94V-0 |
|---|---|
| ISO/IEC Compliance | IEC 60603-7 |
| Data Category | Category 6 |
| TIA/EIA Compliance | Category 6 - TIA 568.2-D, ISO/IEC 11801-1, TIA TSB-5021 |
| IEEE Compliance | Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE 802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseT TM (up to 100W) |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed |
|---|
Related Part Numbers
| Related Parts | CAT6+ REVConnect Modular Jacks, CAT6+ Modular Cords |
|---|
Product Notes
| Included Parts | 24 Cat6+ REVConnect Jacks Black preloaded; 4 Screws (10x32); 4 Screws (12x24); 2 Velcro Straps; 4 Clear Windows; 1 Rear Cable Management Bar; 1 Installation Guide |
|---|---|
| Notes | For proper installation refer to Installation Guide PX106520 included with the product |
History
| Update and Revision | Revision Number: 0.173 Revision Date: 12-03-2025 |
|---|
