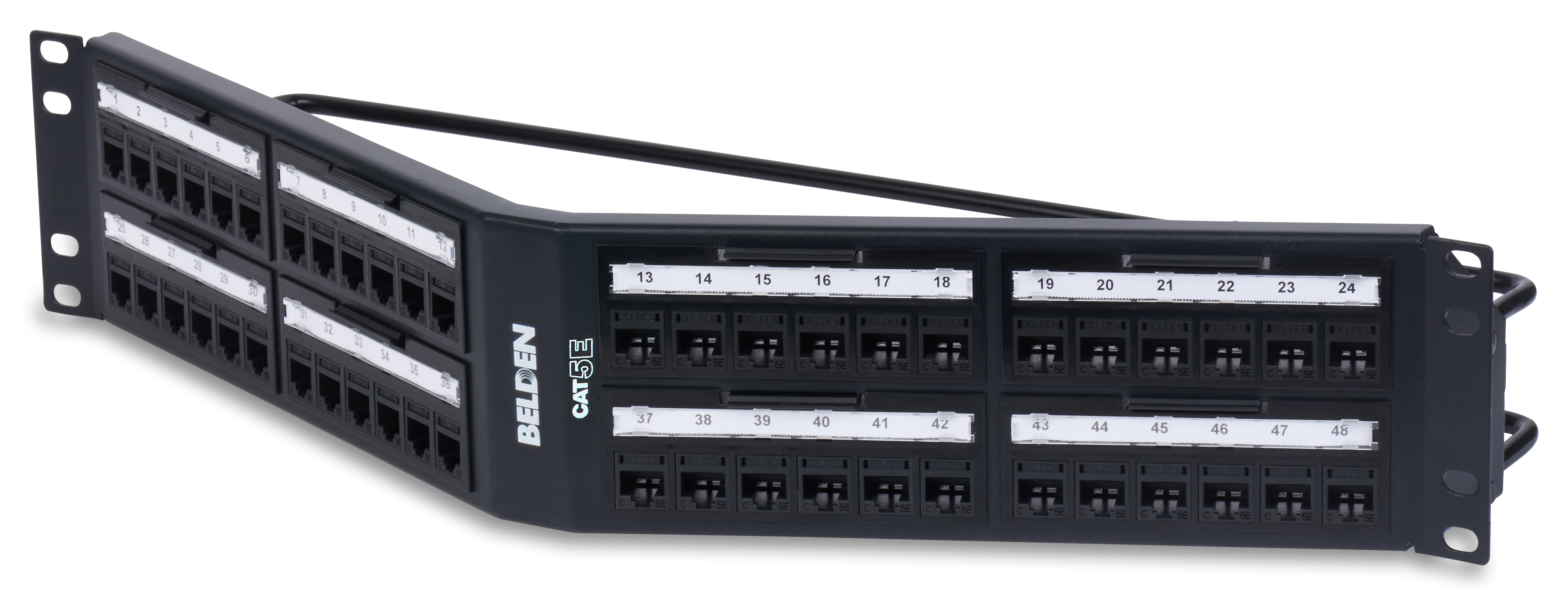

RV5PPA2U48-CAT5E REVConnect Angled Patch Panel, 48 Port
CAT5E REVConnect Patch Panel, Angled, 48-Port, 2U (Preloaded)
- Availability
- Global
- Status
- Active
- Orderable items
- 15
Part numbers
CAT5E REVConnect Angled PP 48P is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| RV5PPA2U48BK | Black | 611589224871 | Order online |
| RV6PPA2U48WH | Black, White | 611589224963 | Order online |
| RV5PPA2U48WH | White | 611589224888 | Order online |
| RV5PPF2U48WH | White | 611589224925 | Order online |
| RV6PPA1U24WH | White | 611589224949 | Order online |
| RV6PPF1U24WH | White | 611589224987 | Order online |
| RV6PPF2U48WH | White | 611589225007 | Order online |
| RVAPPA1U24WH | White | 611589225021 | Order online |
| RVAPPA2U48WH | White | 611589225045 | Order online |
| RVAPPF1U24WH | White | 611589225069 | Order online |
| RVAPPF2U48WH | White | 611589225083 | Order online |
| RVMPPA1U24WH | White | 611589238014 | Order online |
| RVMPPA2U48WH | White | 611589238038 | Order online |
| RVMPPF1U24WH | White | 611589238052 | Order online |
| RVMPPF2U48WH | White | 611589237994 | Order online |
Specifications
Product Overview
| Suitable Applications | 1200 System, TIA Category 5E, ISO Class D, 1GBASE-T |
|---|
Physical Characteristics (Overall)
| Overall Height | 3.47 in |
|---|---|
| Overall Width | 19.000 in |
| Overall Depth | 5.830 in |
| Number of Ports | 48 Port |
| Front Connection | Angled |
| Packaging | Individually packaged in a cardboard box. |
| Weight | 3.326 lbs |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Panel | Steel | Black/White |
| Frame | PC/ABS | Black/White |
| Management Bar | Steel | Black |
| Clear Window | Polycarbonate | Transparent |
Construction and Dimensions
| Max Capacity | 48 connectors (preloaded) |
|---|
Electrical Characteristics
| Dielectric Strength | 1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
| Current Rating | 1.300 A |
| Insulation Resistance | 500 M-Ohm Minimum |
| Termination Resistance | 2.5 mOhm |
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
| Operating Temperature Range | -10°C To +60°C |
Mechanical Characteristics
| Connector System Compatibility | KeyConnect |
|---|---|
| Tool Compatibility | REVConnect Termination Tool (RVUTT01) |
| Plug /Jack Compatibility | RJ45 |
| Cable/Connector Retention | 15 lbs |
| Connector/Hardware Retention | 20 lbs |
| Plug/Connector Retention | 11.250 lbs |
Standards
| UL Rating | UL94V-0 |
|---|---|
| Data Category | Category 5e |
| TIA/EIA Compliance | Category 5e - TIA 568.C.2 |
| IEEE Compliance | Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE 802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseT TM (up to 100W) |
| Other Standards | FCC Part 68, Subpart F, IEC 60603-7 |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed |
|---|
Related Part Numbers
| Related Parts | CAT5E REVConnect Modular Jacks, CAT5E Modular Cords |
|---|
Product Notes
| Included Parts | 48 Cat5E UTP REVConnect Jacks, 50 REVConnect Cores, 4 Screws (10x32); 8 Clear Windows; 2 Rear Cable Management Bar; 4 Screws (12x24); 2 Velcro Straps; 1 Installation Guide |
|---|---|
| Notes | For proper installation refer to Installation Guide PX106520 included with the product |
History
| Update and Revision | Revision Number: 0.207 Revision Date: 12-04-2025 |
|---|
