Product Number: CAT 6 KCONN PP 48 2U

AX103255-CAT 6 KeyConect Patch Panel, 48 Port, 2U, Preloaded, UTP

Name: Belden CAT 6 KCONN PP 48 2U
Brand: Belden
SKU: CAT 6 KCONN PP 48 2U

CAT6+ KeyConnect Patch Panel, 48-port, 2U

Ships from and sold by A5 IT.

Part numbers

CAT 6 KCONN PP 48 2U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX103255	Black	611589005722	Order online

Suitable Applications	IBDN System 4800, 3600, 2400, TIA Category 6, ISO Class E, 1000BASE-T

Overall Height	3.5 in
Overall Width	19.000 in
Overall Depth	1.3 in
Number of Ports	48 Port
Front Connection	Flush
Packaging	Individually packaged in a cardboard box.
Weight	2.500 lbs

Description	Panel
Material	Steel

Max Capacity	48 connectors (preloaded)

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	KeyConnect
Plug /Jack Compatibility	RJ45
Termination Type	Universal T568A/B

Data Category	Category 6
TIA/EIA Compliance	Category 6 - TIA 568.C.2, ISO/IEC 11801:2002 Ed.2, EIA/ECA 310
Third Party Performance Verification	ETL - Verified Category 6

Safety Listing	Bi-national Standard Listed

Related Parts	CAT6+ Modular Cords

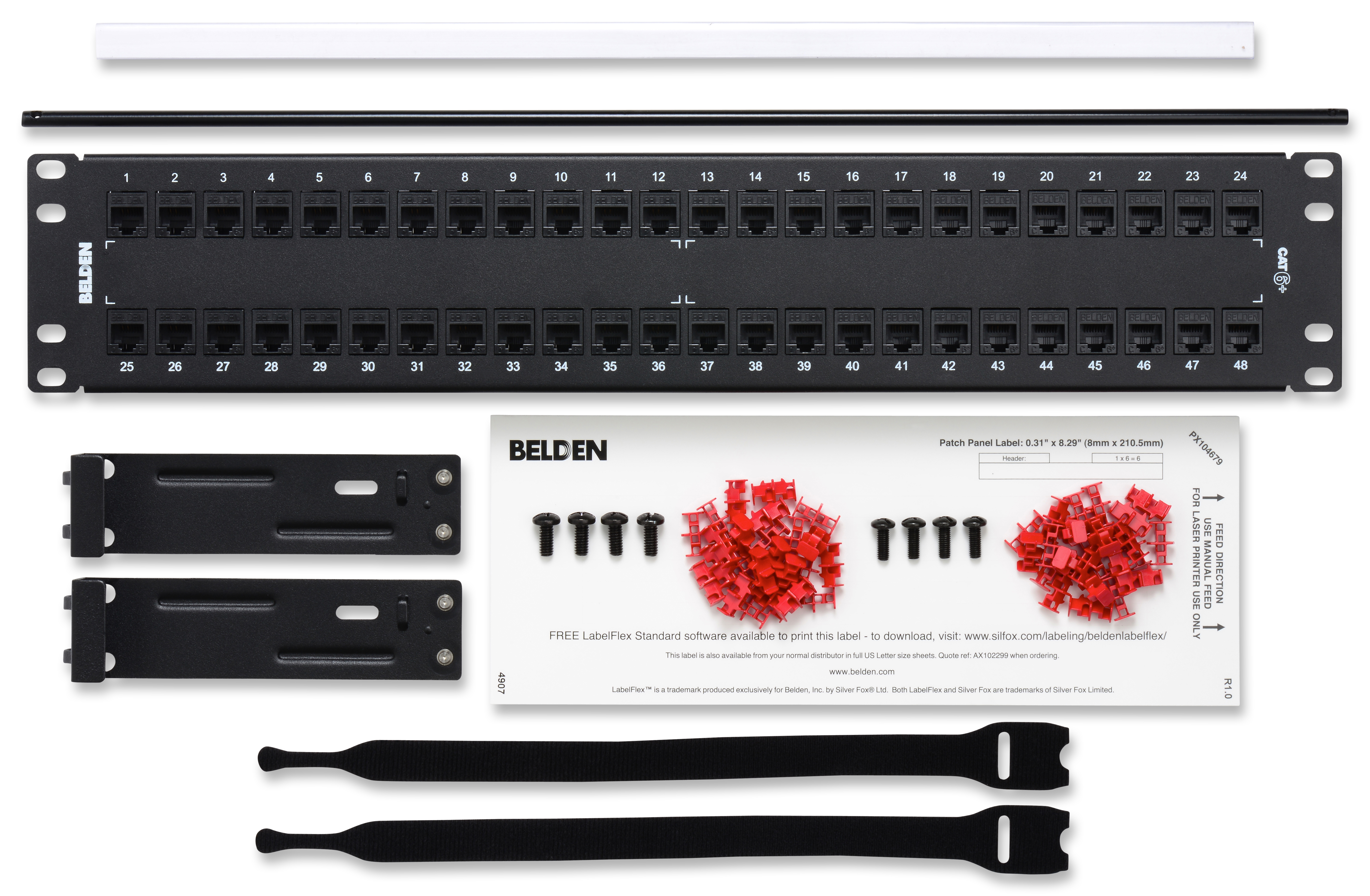

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Label Holder; 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 Rear Cable Management Bracket; 1 Installation Guide; 1 kit Termination Bar
Notes	For proper installation refer to Installation Guide PX104691 included with the product
